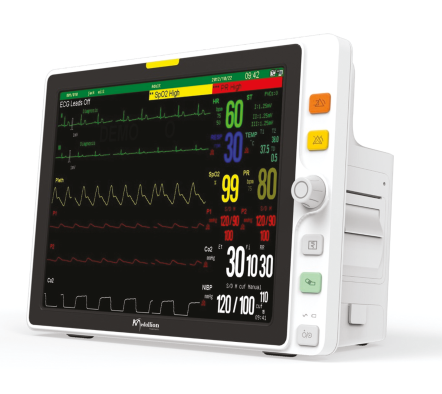

Patient Cardiac Monitor

MRI-M12

Features

The monitor adopts Ergonomic design and a compact structure to meet the needs of various parameter detections. It is suitable for adults, children, and newborns.

• Standard parameters: Sp02, 3/5 leads ECG, PR, HR, RESP, NIBP, 2*TEMP.
• Optional parameters: EtC02, 12 leads ECG, 2*IBP.
• 10/12/15 inch color LCD screen with optional touch screen and rotator knob.
• Capable to visualize 6 or more waveform. Support color coding for different waveform.
• 28 ST segment analysis with ST trend with continuous display of ST value on screen.
• Multiple screen layout to view big font size in numeric and waveform.
• Trending facilities for up to 360 hours of both graphical & numerical along with event review facility for all parameters and full waveform disclosure facility.
• Different visual alarm with color coding and audible alarms for various parameters with three levels of volume adjustment.
• Support HL7 protocol to access the central monitoring system, low-power design, extending battery life Configure, fanless design to ensure a quieter and cleaner environment Arrhythmia detection and analysis in various leads.

Product Performance

• Standard application: 5-leads ECG, NIBP, Sp02, RESP, TEMP, PR/HR
• Optional application: Touch screen, IBP, EtC02 (mainstream/sidestream), 12-lead ECG, recorder, CMS
• Large font, dynamic short trend display interface, calculation of hemodynamics and cardiac output.

Specifications

Display

• MRI-M12: 12 inches Color TFT LCD
• Resolution: MRI-M121024*768 pixels

ECG

• 3-lead: I, II, III
• 5-lead: I, II, III, aVR, aVL, aVF, V
• ECG Range: 0~100%
• ECG Resolution: 2.36uV/LSB
• HR Range: 15~300bpm(adult), 15~250bpm(pediatric/neonate)
• HR Accuracy: ±1 bpm or ±1%, whichever is greater.
• RR Range: 0~120bpm
• RR Accuracy: 15~120rpm: ±2rpm or ±2% <15rpm: Undefined
• Sweep speed: 6.25 mm/s, 12.5mm/s, 25mm/s, 50mm/s, less than ±5% error
• Display sensitivity: 2.5 mm/mV (X0.25), 5 mm/mV (X0.5), 10 mm/mV (XI), 20 mm/mV (X2), 40
• mm/mV (X4), Auto, less than ±5% error

SP02

• SP02 Measurement Range: 0-100%
• SP02 Accuracy: 70 to 100%: ±2% (adult/pediatric, without motion)
• 70 to 100%: ±3% (neonate, without motion)
• 0 to 69%: Not specified.
• PI Range: 0-20%
• PR Range: 25-250bpm
• PR Accuracy: ±2bpm or ±2% (whichever is greater)

TEMP

• Technique: Thermal resistance
• Measurement Range: 0~50.0°C
• Accuracy: ±0.2°C
• Resolution: 0.1°C
• Refresh Rate: Is
• Alarm limit range: Temp High: (low limit +0.1°C) ~ 50.0°C
• Temp Low: 0°C- (high limit -0.1°C)

NIBP

• Measure method: Automatic oscillation method
• Pressure Range: 0~300mmHg (0~40kPa)
• Pressure Accuracy: ±2mmHg or ±1% of reading (whichever is greater)
• Resolution: ImmHg or 0.1kPa
• SYS Range: Adult: 40-270mmHg
• Pediatric: 40-200mmHg
• Neonate: 40-130mmHg
• DIA Range: Adult: 10-210mmHg
• Pediatric: 10-162mmHg
• Neonate: 10-90mmHg
• Mean Range: Adult: 20-230mmHg
• Pediatric: 20-170mmHg
• Neonate: 20-100mmHg
• Accuracy: mean deviation<±5mmHg, standard deviation<8mmHg
• Work pattern: manual, automatic, continuous measurement
• Automatic mode measurement interval: lmin/ 2min/ 3min/ 4min/ 5min/ lOmin/ 15min/ 30min/ 60min/ 90min/ 2h/ 3h
• Continuous mode measurement time: 5 min
• Maximum single measurement time: 180s

Respiration

• Technique: Trans-thoracic impedance
• Lead: Options are lead I and II
• Respiration excitation waveform: < 300pA RMS, 62.8kHz (±0%)
• Respiration impedance range: 0.3-50
• Baseline impedance range: 200-25000 (using an ECG cable with IkO resistance)
• Bandwidth: 0.2~2Hz (-3 dB)
• Sweep speed: 6.25 mm/s, 12.5mm/s, 25mm/s, 50mm/s

PR

• Measurement range: 25bpm~250bpm
• Resolution: lbpm
• Alarm limit: PR High: (PR Low limit +lbpm)- 300bpm
• PR Low: 15bpm- (PR High limit -lbpm)

HR

• Measurement range: 15~300bpm (adult)
• 15~350bpm (pediatric/neonate)
• Resolution: lbpm
• Accuracy: ±1 bpm or ±1%, whichever is greater
• Sensitivity: 0.2mV

Data Storage

• Trends: A minimum of 120 hours trend data with the resolution no less than 1 minute
• Events: 200 events
• NIBP measurements: 200 events
• Interpretation of resting 12-lead ECG results: 20 sets

IBP (Optional)

• Number of channels: 2
• Pressure Range: -50~350mmHg (-6.7~40.0kPa)
• Accuracy: ±2% or ±1 mmHg, whichever is greater (excluding sensor error)
• Resolution: 1 mmHg (0.1kPa)
• Refresh Rate: 1s
• Sensitivity: 5pV/V/mmHg
• Zero adjustment range: ±200 mmHg
• Impedance range: 300-3000Q
• Volume displacement: < 0.04mm3/100mmHg

EtC02 (Optional)

• Measurement mode: Sidestream, Mainstream
• Technique: Infrared absorption
• Zero RR delay: 20s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s
• C02 Range: 0-20.0 vol%
• C02 Accuracy: 0-12 vol%: ± (0.2 vol%±2% of readings)
• 12-20 vol%: ± (0.2 vol%±6% of readings
• AwRR Measurement Range: 0~150rpm
• Resolution: 1 rpm
• AwRR Accuracy: Mainstream: 0~150rpm, ±lrpm
• Sidestream: 0~69rpm, ±lrpm; 70~150rpm, Undefined
• Alarm limit: EtC02 High: (EtC02 Low limit ±lmmHg)- 150mmHg
• EtC02 Low: 0- (EtC02 High limit -ImmHg)
• FiC02 High: 0- 150mmHg
• AwRR High: (AwRR Low limit ±1 rpm)- 120rpm
• AwRR Low: 0- (AwRR High limit -1 rpm)

Gyne Instruments Set (GIS)

Gyne Instrument Set:

• A. D & C INSTRUMENTS SET
• 1 BIOPSY FORCEPS 25CM 01
• 2 SIMS UTERINE SOUND MALLEABLE 32CM 01
• 3 SIMS UTERINE CURRETTE D/E SHARP 25CM 03
• 4 TEALE VULSELLUM FORCEPS 23CM 02
• 5 GALL BLADDER SOUND 10FG 01
• 6 SIMS VAGINAL SPECULUM D/E MEDIUM FIG. 2 01
• 7 HEGAR UTERINE DILATOR D/E SET/8, IN POUCH 01
• 8 FOERSTER SPONGE HOLDING FORCEPS SERR STR 25CM 01
• 9 HEYWOOD SMITH OVUM FORCEPS 25.5CM 01
• 10 RHEINSTADTER FLUSHING CURRETTE SH. 7.9MM, 29CM 01
• 11 RHEINSTADTER FLUSHING CURRETTE SH. 11.1MM, 29CM 01
• 12 RHEINSTADTER FLUSHING CURRETTE SH. 14.3MM, 29CM 01
• RHEINSTADTER FLUSHING CURRETTE BL. 7.9MM, 29CM 01
• 14 RHEINSTADTER FLUSHING CURRETTE BL. 11.1MM, 29CM 01
• 15 RHEINSTADTER FLUSHING CURRETTE BL. 14.3MM, 29CM 01

CAESARIAN SECTION INSTRUMENTS SET (03)

• WRIGLEY OBSTETRICAL FORCEPS 28CM 01
• DOYEN RETRACTOR 50X85MM, 25CM 01
• KIDNEY TRAY 250X120X40MM 01
• GREEN ARMYTAGE UTERUS HEMOSTATIC FORCEPS 21CM 04
• ROCHESTER PEAN HEMOSTATIC FORCEPS CVD 20CM 02
• BACKHAUS TOWEL FORCEPS 13CM 04
• ALLIS TISSUE FORCEPS 5X6T, 19CM 04
• MAYO HEGAR NEEDLE HOLDER 18CM
• SCALPEL HANDLE NO. 4 01
• STANDARD DRESSING FORCEPS SERR 18CM 02
• STANDARD TISSUE FORCEPS 1X2T 18CM 02
• FOERSTER SPONGE HOLDING FORCEPS SERR STR 25CM 02
• MAYO SCISSORS STR 17CM 01
• STANDARD DRESSING FORCEPS SERR 16CM 02
• 15 ROCHESTER OCHSNER FORCEPS CVD 24CM 02
• ALLIS TISSUE FORCEPS 5X6T, 24CM 02

C. E & C INSTRUMENTS SET ( 03)

• BIOPSY FORCEPS 25CM 01
• SIMS UTERINE SOUND MALLEABLE 32CM 01
• SIMS UTERINE CURRETTE D/E SHARP 25CM 03
• TEALE VULSELLUM FORCEPS 23CM 02
• GALL BLADDER SOUND 10FG 01
• SIMS VAGINAL SPECULUM D/E MEDIUM FIG. 2 01
• HEGAR UTERINE DILATOR D/E SET/8, IN POUCH 01
• FOERSTER SPONGE HOLDING FORCEPS SERR STR 25CM 01


Elisa Machine

MES-2000

Features

• fully automated Microprocessor Controlled Micro Plate/Batch ELISA Analyzer with LCD Monitor and data recording system
• Digital display for results
• Unit with automatic sample identification, dilution, incubation, conjugation, washing and reading facility
• programmable incubation and micro–plate shaking
• work in sessions
• 3 integrated liquid buffer tanks
• multiple heads
• LAN/ WLAN port to share the data with hospital network
• RS 232 or USB Interface
• Programmable for 2 Plates of 96 wells with filters 405–620 nm with at least 6 filters
• Throughput 2×96 samples test i.e. Infectious profile, Hormones Profile, Auto antibodies, Vit–D
• level, Immunoglobulin, Tumor markers, Auto immune panel
• 12 or more assays for micro–plate
• Up to 12 assays profile
• Unit based on at least 2 micro–plate principal and 2 incubation positions
• System should have possibility to detect clot and to check volume intake
• The facility for Auto clot detection, sensor probes for reagent and samples have been added
• System should have possibility to run 24 or more controls with 18 or more position for reagents
• 8 or more suction channels and at least 8 dispensing channel

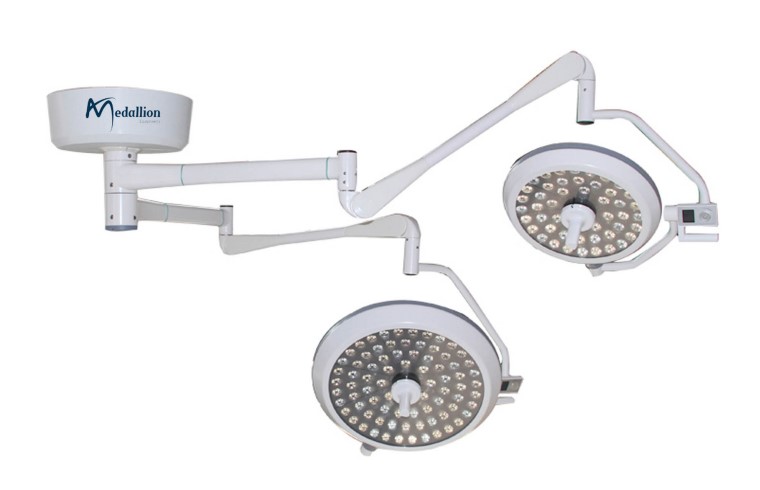

OT Light

LED&700-A

Medallion Equipments UK

OT Light

Lighting Control:

• Multi-step adjustment: Allows for precise control of light intensity.
• Color temperature range: Adjustable between 3700K and 5000K for optimal lighting conditions.
• Stepless dimming: Provides smooth and continuous adjustment of brightness.

Performance:

• High illumination: Ensures sufficient light for surgical procedures.
• Adjustable lighting parameters: Tailored to meet the needs of different surgeons.
• Soft and non-dazzling light: Reduces eye strain and fatigue.

LED Technology:

• German-imported LED chips: High-quality components for long-lasting performance.
• Service life of over 80,000 hours: Minimal maintenance and replacement needs.
• Color rendering index of 85-98: Accurate representation of human tissue colors.

Additional Benefits:

• Reduced visual fatigue: Minimizes strain on medical staff during extended surgeries.
• Temperature control: Prevents wound drying and blood coagulation, ensuring optimal surgical conditions.

• The lampshade shell is made of high-quality aluminum. The surface adopts high-voltage electrostatic spraying technology and uses imported environmentally friendly antibacterial plastic powder to ensure that the product meets surgical hygiene requirements and has a matte surface without glare.
• The central sterilization handle can be disassembled at will, with a temperature resistance of not less than 134° C and a high-pressure resistance of not less than 205.8kPa, which is convenient for high-temperature and high-pressure steam sterilization.

Accessories:

UPS with 2 hours battery backup timing

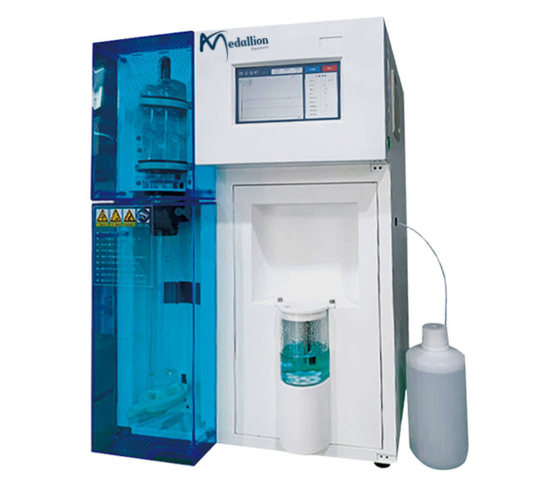

Automatic Kjeldahl Nitrogen Protein Analyzer

MKD-N

Medallion Equipments

Technical Specifications:

Features:

1. Large LCD touch screen.
2. The control system has high precision and good stability.
3. Choose R, G, B three-color light source and three-color sensor, with a wide range of color adaptation and high precision.
4. 99 groups of user-defined programs.
5. 304 stainless steel material.
6. Multi-protection function, such as safety door, over pressure protection, water shortage protection, etc.

Technical Parameters:

Freeze Dryer

MBK-T100

Introduction:
Freeze dryer (square cabinet) is made of SUS304 material, and the silicone oil circulation heating is used to ensure the uniformity of the cooling and heating of the shelf. The temperature difference is only 1°C after the temperature balance of the shelf. The temperature of the cold trap can reach − 85°C. Adapted to the samples containing organic solvent and drying and process conditions to explore (food processing, dehydration, soil preparation, etc.).

Features:

1. Pre-freezing, drying in-situ, easy to operate, good drying effect.
2. Inflatable(discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.
3. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.
4. 10-inch true color touch screen.
5. Can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.
6. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.
7. Flexible manual + automatic control mode, manual mode used for groping process, automatic mode used for batch production.
8. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.
9. User level and password can be set and decentralized for operation management.

Technical Parameters:

Operation Table MT-T1

Medallion Equipment’s UK

Features:

• Hydraulic, pneumatic and mechanical transmission control various actions
• The tabletop can be rotated 360°
• Imported sealing ring with long life
• The tabletop adopts high quality of carbon plastic plate, which is convenient for X-ray photography and exam.
• Quality stainless steel 304 is used for rails on both sides of the table.
• The table support frame is made of alloy aluminum die-casting and never rusts.
• The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.
• Sliding table top up to 300 mm
• Override panel in column or wireless remote for back up in case of emergency.
• Quality stainless steel 304 is used for table support and base plate, which is easily cleaning and disinfection.
• Head plate, Back plate, Seat plate & two separate leg plates
• Foot pedal brake device which is easy for moving the operating table.

Technical Specifications:

 Accessories:

• Pair of Arm rest with clamp and straps.
• Anesthesia screen
• Pair of Knee Crutches.
• Large width body strap
• Adjustable bottle holder rod
• Shoulder support
• U Shape head rest for general Surgery.
• Table Top (Radiolucent) with antistatic mattress, 5-6 sections and equipped with X-ray cassette holder.
• Sturdy table for minimum patient lifting capacity 450Kg or better.



ECG Machine with Color Screen

ECG-M12

Introduction

The ECG–M12 is an advanced and reliable ECG machine helping clinicians make fast and accurate ECG diagnosis. It is configured with color screen, alphanumeric keyboard, high accuracy thermal printing system and big capacity battery power supply, with multi working modes and rich menu setting to improve using experiences. This machine can analyze over 200 kinds of abnormal ECG. It can be widely used in various medical institutions or occasions.

Product Features

Sampling and Interpretation

• Acquisition and record standard 12 lead ECG simultaneously (I, II, III, aVR, aVL, aVF, VI, V2, V3, V4, V5, V6).
• High accuracy AC filter, EMG filter and base line anti–drift filter. Automatic base line adjustment.
• Accurate pulse pace identification function.
• Excellent auto–interpretation function can identify and analyze over 200 kinds of abnormal ECG (Analysis data base: Minnesota Code).

Record

• 8 dots, high resolution thermal printing.
• Four working modes: Auto, Manual, Rhythm, Exam, to meet different clinical requirements.
• Recording format: 6chx2+R, 6chx2+3R, 9chxl, 12chxl
• Printing paper size: 210mmx30m, roll paper. (Thermal paper without grid is also available.)

Patient Information and File Management

• With alphanumeric keyboard, very easy to input and edit patient information.
• Can record detailed patient information, including name, ID, age, gender, nation, medical card number and hospital name.
• Can store, replay and edit 400 ECG cases with internal memory card.
• Patient ECG report can be transferred to external USB disk.

Display and Keypad

• 800×480 graphic, 7inch color LCD to display detailed ECG waveform and working status. (Display ECG waveform, patient information, sensitivity, paper speed, filter, date and time, heart rate, battery status, paper status and etc.)
• Soft silicon alphanumeric keyboard to operate and input information.
• One–key operation to support fast ECG examination.

Power Supply

• Rechargeable built–in Li–ion battery, 2200mAh, 14.4V, support to continuously work about 9 hours or 18 hours.
• Fast charging design, about 2.5 or 4.5 hours to charge full.


Blood Gas Analyzer

MPT-100

Blood Gas Analyzer:

All–in–one Cartridge:

• No fluidics in instrument, maintenance free
• Self–contained calibration, cleaning solution and biohazard waste collection pack
• Optimized cartridge design minimizes clot formation

Easy Operation:

• Simple 4–step process, easy to use
• Supports HL7 protocol for LIS/HIS
• LCD display/Touch Screen for results
• Large storage memory for minimum of 150 results or more
• System should be capable of two–point calibration along with manual calibration
• Calibration history at least 24 hours
• System should have at least 3–4 programs for quality control

High Efficiency:

• Automatic calibration and continuous system performance monitoring
• Built in printer, print results automatically after detection
• Detailed Requirement:
• Microprocessor based Blood gas Analyzer to measure, blood gas and electrolytes 33 parameters in only 60 seconds
• Assay technology: Potentiometric and Amperometric electrodes (pH & O2 electrode), and a range of Ionselective electrodes.
• Sample Type: Whole blood (syringe and capillary) with recommended anticoagulant.
• Plasma/Serum for electrolytes only.
• Easy changing access to electrodes and reagents.
• Automatic sample recognition and sampling.
• RS 232 or USB Interface

Ultimate Flexibility:

• Compact size for various units (ICU, ED, OR, etc.)
• Convenient handle, easy to cany
• Built–in battery, 4 hours back–up
• Throughput: 30 samples/hour
• Analysis Time: Not more than 80 seconds nominal
• Control panel with easy setting and monitoring of pC02, p02, pH
• Measuring range: (In Between)
• pC02: 5 – 200 mmHg
• p02: 0 – 800 mmHg
• pH: 6.000 – 8.000 pH
