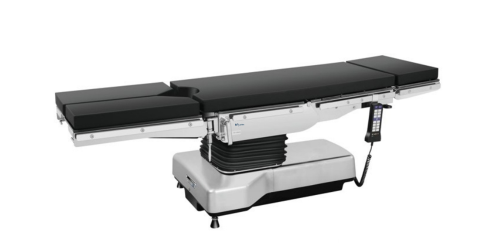

MOT-3D ( OT Table)

OT Table

MOT-3D

Features

Ultra-low design.
The bed surface is made of high-quality carbon plastic board, and the table surface can be moved longitudinally to meet the needs of C-arm whole body inspection and filming.
The mattress is made of imported artificial leather wrapped with high-density memory foam and formed at one time with no seam.
There are two control modes: hand-held remote controller and panel controller, with self-locking function.
With one-key forming and “v” shape, it is convenient for operation.
AC and DC, CPU control, with one-key reset function.
The countertop support frame, the rails on both sides and its accessories are all made of high-quality 304 stainless steel, and the base and column cover are made of stainless steel for one-time molding.
Electric brake device facilitates the displacement of the operating table.
The head and leg plates are controlled by imported gas springs, and the leg plates are split and detachable.

Technical Specifications

PARAMETER	SPECIFICATION
Length	2000±100mm
Width	520±20mm
Loading Capacity	≥150kg
Height Adjustment	(650-1100) ±50mm
Tilt (left)	≥20°; Tilt (right)≥20°
Trendelenburg	≥30°; Rev-Trend≥30°
Head Board Upward	≥50°; downward≥90°
Back Board Upward	≥70°; downward≥40
Leg Board Upward	≥20°; downward≥90°
Leg Board Outwards	≥180°
Lumbar Upper Corner”∧”	≤150°
Lumbar lower Corner”∨”	≤110°
Waist Board Lifting	100±20mm
Horizontal and longitudinal movement	400±30mm
Mains Voltage	AC220±22V, 50±1Hz
Input Power	400±10%VA
