MCS-480

Auto Chemistry Analyzer

MCS-480

Overall performance

Equipment type Fully automatic, discrete, STAT priority
Throughput 500T/H for photometry tests, 800 T/H with ISE
Test principle Colorimetry, turbidimetry, ISE
Analysis method End-point, kinetics, fixed-time, etc. support single/double wavelength
Simultaneous analysis item 110 colorimetric items and 3 ISE items (K, Na, Cl optional)



Optical system

Light source 20W/12V halogen lamps
Monochromator Grating photometry
Photoelectron road Rear spectrophotometry
Wavelength 340nm-800nm
Detector photodiode LED array
OD linear range 0~3.6Abs



Sample unit

Sample position 115 sample positions
Sample volume 1.5µL-35µL, 0.1µL stepping
Sample cuvettes specification Standard cup, original blood tube, multispecification
tube available (010~13) mm x (75~100) mm
Sample barcode code 128, code 39, code 93,12of5, UPC/EAN
Sampling technology Liquid level detection, clot detection, and collision protection



Reagent unit

Reagent probe Liquid level detection and collision protection
Reagent volume 20µL~350µL, 1µL stepping
Reagent position Double reagent disk up to 112 positions
Reagent barcode Code128



Reaction unit

Reaction cuvette 120 positions optical plastic cuvettes
Total volume of reaction liquid 120µL~450µL
Reaction temperature 37°C±0.1°C
Reaction disk constant temperature Circulating water
Mixing needle Blending immediately after joining
reagent
Reaction cuvette cleaning 7 stops 11steps by warm water rinsing
Wastewater treatment Two diffluence for high and low
concentration waste water
With the function of concentrated
waste liquid level alarming



Calibration and QC

Calibration method 1-point linear method, 2-point linear method, multiple point linear method, non-linear method
Calibration tracking Automatic description calibration K value trends
QC method Real-time QC, daily QC and monthly QC
Out-of-control processing Alarming for out-of-control sample, record lost control reason



Operating system

PC operating system Windows 7/ Windows 10 operating
Analysis control software system English version graphical operating software
Report printing Report formats support the userdefined mode QC and state information etc.
System connection RJ45 network interface



Others

Volume 1060mmx790mmxll50mm(LxWxH)
Weight 300Kg
Power*supply Voltage AC 220+22V, 50Hz+lHz,power 2000VA



SOFTWARE

Medallion provides a friendly software interface and easy for all staff. The resulting interface supports research results in real-time, provides reaction analysis, and prints results or transmits them to LIS (Laboratory Information System). Medallion refers to Westgard rules and generates QC charts and QC statistics for reliable patient results. The monitor interface displays the full sample test status in real time.

REAGENT

Hepatic Panel

Alanine Aminotransferase ALT
Aspartate Aminotransferase AST
Alkaline Phosphatase ALP
y-Glutamyl transferase GGT
Cholinesterase CHE
Total Bilirubin DSA Method TB
Total Bilirubin VOX Method TB-V
Direct Bilirubin DSA Method DB
Direct Bilirubin VOX Method DB-V
Bile Acids TBA
Total Protein TP
Albumin ALB
Glutamate Dehydrogenase GLDH
Iso-Citrate Dehydrogenase ICDH
Leucine Aminopeptidase LAP
Adenosine Deaminase ADA
Prealbumin PA
5′-Nucleotidase 5′-NT



Cardiac Panel

Creatinine Kinase CK
Creatinine Kinase MB Isoenzyme CK-MB
Lactate Dehydrogenase LDH
a-Hydroxybutyric dehydrogenase HBDH
Homocysteine HCY
Cardiac Troponin I Myoglobin Inorganic & Anemia cTnl
Mb



Inorganic & Anemia

Calcium Arsenazo III Method Ca-ARS
Calcium O-Cresolphthalein Complexone Ca-CPC
Chloride CL
Magnesium Mg
Inorganic Phosphorus PHOS
Carbon Dioxide C02
Zinc Zn
Iron Fe
Total Iron-Binding Capacity TIBC
Transferrin TRF
Ferritin FER



Renal Panel

Urea BUN
Uric Acid UA
Creatinine Enzyme Method CRE-E
Cystatin C CYS-C
Microalbumin MALB
B2- Macroglobulin B2-MG
N-Acetyl-D-Glycosaminidase NAG
Total Protein In Urine TPU
Retinol-Binding protein RBP
α-Microglobulin al-MG



Lipid Panel

Cholesterol TC
Triglycerides TG
High-Density Lipoprotein-Cholesterol HDL-C
 Low-Density Lipoprotein-Cholesterol LDL-C
 Apolipoprotein A1 APOA1
Apolipoprotein B APOB
Lipoprotein (a) LP (a)



Immune Panel

Immunoglobulin A IgA
Immunoglobulin G IgG
Immunoglobulin M IgM
Complement C3 C3
Complement C4 C4



Rheumatism Panel

Anti Streptolysin 0 ASO
Rheumatoid Factor RF
C-Reactive Protein CRP



Pancreatitis Panel

Amylase AMY
Pancreatic Amylase P-AMY
Lipase LPS



Diabetes Panel

Glucose Oxidase Method GLU-OX
Glucose Hexokinase Method GLU-HK
Glycohemoglobin A1C HbAlc
Fructosamine FMN



Read more

MTA-B23

Table Top Autoclave

MTA-B23

Features:

Brand–new operation interface: 5 digital touch–screen graphic display can display real–time information such as temperature, pressure, time, operating status, fault alarm, and equipment operating curve, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.

  • Multiple safety protection devices: Automatic over–temperature protection device, multiple control and protection of evaporator, door safety interlock protection, double over–pressure protection device, etc.
  • Door structure: MTA–B23 autoclave adopts a automatic door with locking device, The system is based on a screw and a self–aligning nut It is could quick and convenient to operate, and effectively protects the human body and prevents bums.
  • Vacuum system: It adopts high–efficiency fully automatic microprocessor controlled horizontal steam sterilizer high speed pre & post vacuum treatment, low working noise, ultimate vacuum can reach more than – 80KPa, fast pumping speed, good dryness of items, and more thorough sterilization.
  • Diversified procedures: There are fast procedures, encapsulation procedures, rubber procedures, dressing procedures, liquid procedures, liquid customization, solid customization and other procedures, as well as B&D, vacuum testing procedures, and appointment procedures.
  • High–efficiency air filter: 0.22pm sterilizing high–efficiency air filter, the filtration efficiency is not less than 99.5%, to ensure that the vacuum–breaking air is sterile air, and to avoid re–contamination of sterile materials.
  • Recording device: The equipment is equipped with a thermal printer and USB interface as standard, which can record the data of the entire sterilization process in real time.
  • Other functions: Automatic operation of the whole process of preheating, replacement, heating, sterilization, exhaust steam, and vacuum drying.
  • Sterilizer‘s framework, piping and housing is made up of stainless–steel quality & equipped with a diaphragm vacuum pump, combined with a heat Exchanger
  • The sterilizers is equipped with 2 Water Reservoirs one for the tap water and one for drain water
  • Energy Saving Mode
  • Built–in steam generator
  • Self and remote diagnosis and PC connection for external documentation and printing
  • The sterilizer show ‘s real time graph of cycles while it’s running
  • 5 Pre–programmed cycle and 2 test cycles
  • Store Memory for last 10 cycles

Technical Parameters:

Model MTA-B23
Capacity 25L
Door Automatic
Designed Pressure -0.1/0.3MPa
Water Tank Volume 3.5L
Working Temp. 121~137°C
Vacuum System High efficiency vacuum pump
Chamber Material S30408
Atmospheric Pressure 76~106kpa
Ambient Temp. 5~40°C
Standard Accessories USB/Printer
Power Supply 220V, 50/60HZ (Standard); 110V, 60Hz (Optional);
Wiring Method: Air switch
Consumption 3kVA
External
Size(W*D*H)mm		 680*485*450
Chamber Size(mm ) ɸ250*450
Package
Size(W*D*H)mm		 810*610*590
Gross Weight(kg) 65



Accessories:

  • Complete with standard accessories;
  • The unit should be supplied with an integrated impact printer
  • A disposable air filter (HEPA) should be provided for filtering the atmospheric air before entering in the chamber
  • Removable shelves of SS or equivalent
  • Operating Manual with a Soft Copy
  • Service Manual with a Soft Copy
Read more

LED-700

OT Light

LED-700

Features

  • The Whole reflection optical system is made by CAD/CAM technology, its illumination depth is up to 1300mm; by using color temperature compensation technology, the color reversion is upraised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.
  • The panel is made of (anti-bullet plastic) by injection moulding, makes the light softer and more reliable. Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely.
  • 360 universal designs can satisfy various needed height and angle in the operation.
  • Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
  • LED shadow less operation theatre ceiling light, hermetically sealed dust proof.
  • Adjustable light intensity 160000 LUX at 1 meter distance.
  • Satellite combination of 160000 LUX at 1 meter.
  • Electronic control panel for light Parameter’s adjustment.
  • Autoclavable handles.
  • Integrated digital camera system
  • Provision of video transmission facility.
  • Medical graded LED 26” mounted on third arm.



Technical Specifications:



PARAMETER SPECIFICATION
Illuminance >160,000Lux
Color Temperature 3800±500K, 4400±500K, 5000±500K
Color Reduction Index (Ra) 96
Illuminance Depth >=1300mm
Total Irradiance 544W/m2
Size of Light Field 250~300mm
LED Bulb 3.3mW/m2lx
Service Life of Illuminant 50,000h
Power Supply Voltage AC110-240v, 50/60Hz
Brightness Adjustment Automatic 8-stage continuous light adjustment
Lowest Height of Installation 2500mm
Total Power Consumption 80W
Total LED Bulb Quantity 108pcs (18*6)
Resolution Full HD (1,920 X 1,080)
Video Output 2 X HD -SDI or 1 x HDMI /DVI-D

Accessories:

  • UPS imported for two hours minimum backup but supply locally
Read more

LED-700M

Mobile Light

LED-700M



Features

  • The Whole reflection optical system is made by CAD/CAM technology, its illumination depth is up to 1300mm; by using color temperature compensation technology, the color reversion is upraised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.
  • The panel is made of (anti-bullet plastic) by injection molding, makes the light softer and more reliable. Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely.
  • 360 universal design can satisfy various needed height and angle in the operation.
  • Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.



Technical Specifications



PARAMETER SPECIFICATION
Illuminance >160,000Lux
Color Temperature 3800±500K, 4400±500K, 5000±500K
Color Reduction Index (Ra) 93
Illuminance Depth >1300mm
Total Irradiance 544W/m2
Size of Light Field 250~300mm
LED Bulb 3.3mW/m2lx
Service Life of Illuminant 50,000h
Power Supply Voltage AC110-240v, 50/60Hz
Brightness Adjustment Automatic 8-stage continuous light adjustment
Total Power Consumption SOW
Total LED Bulb Quantity 108pcs (18*6)
Emergency Time >6 hours



Read more

MVA-15

Laboratory Sterilizer

MVA-15



Safety Features:

  • Over pressure: Safety interlock valve can automatically open to release pressure.
  • Over temperature: The system will power off automatically.
  • Door sensor: Sensor at door closing position, to check the door status. If door is open, operation will stop.
  • Anti–dry out function: If water level is too low, system will power off and error code displays on screen.
  • Over current: Overvoltage or electric leakage protection apparatus–air switch.
  • Door cover: The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.
  • Automatic heat exchanger and Air detector

Technical Features:

  • Optional printer for recording sterilization data.
  • LED screen displays all steps of full process as well as error codes, independent quick service window, easy for repairing and maintenance.
  • Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
  • Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
  • Hand wheel type of quick–open door structure, self–expandable sealing ring, easy operating and safe.
  • Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.
  • Adopting certain temperature(98~102°C) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturability.
  • Inner stainless steel water tank for water and steam to circulate inside. Steam dose not exhaust during sterilization, so as to keep the outside clean and dry
  • Drying function
  • High pressure Vertical/Horizontal Steam Sterilizer
  • Built in Electric Steam Generator and connection for external steam supply
  • Fully automatic, programmable, microprocessor type
  • Door sealing assisted with high quality silicon Gasket
  • provided with Automatic Water feeding for continuous operation
  • Capable of taking both packets and containers of all standard sizes
  • Temperature & Pressure recorder
  • Chamber pressure indicator
  • Cycle indicator to determine the phase of sterilization cycle
Read more

MCS-480

Chemistry Analyzer

MCS-480





Overall Performance:

  • Equipment type: Fully automatic, discrete, STAT priority
  • Throughput: 500T/H for photometry tests, 800 T/H with ISE
  • Test principle: Colorimetric, turbidimetry, ISE
  • Analysis method: End–point, kinetics, fixed–time, etc. support single/double wavelength
  • Simultaneous analysis item: 110 colorimetric items and 3 ISE items (K, Na, Cl optional)

Optical System :

  • Light source: 20W/12V halogen lamps
  • Monochromator: Grating photometry
  • Photoelectron road: Rear spectrophotometry
  • Wavelength: 340nm–800nm
  • Detector: Photodiode LED array
  • Filter Wavelength: 340, 405, 492, 505, 546, 578, 630 and one free
  • OD linear Range: 0–3.6Abs

Sample Unit

  • Sample position: 115 sample positions
  • Sample volume: 1.5pL–35pL, O.lpL stepping
  • Sample cuvettes specification: Standard cup, original blood tube, multi–specification tube available (010~13) mm x (75~100) mm
  • Sample barcode: code 128, code 39, code 93, 1 2of5, UPC/EAN
  • Sampling technology: Liquid level detection, clot detection, and collision protection

Sample Type

  • Serum, plasma, Body fluids

Reagent Unit

  • Reagent Probe: Liquid level detection and collision protection
  • Reagent Volume: 20pi ~ 350.jil, lj.il stepping
  • Reagent Position: Double reagent disk up to 112 positions
  • Reagent Barcode: Code 128

Reaction Unit

  • Reaction Cuvette: 120 positions optical plastic cuvette
  • Total Volume of Reaction Liquid: 120pl ~ 450pl
  • Reaction Temperature: 37°C±0.1°C
  • Reaction Disk Constant Temperature: Circulating water
  • Mixing Needle: Blending immediately after joining reagent
  • Reaction Cuvette Cleaning: 7 stops 11 steps by warm water rinsing
  • Wastewater Treatment: Two diffluence for high and low concentration waste water
  • With the function of concentrated waste liquid level alarming
  • Onboard Reagent: 2–8
  • Temperature Display: Actual
  • Network: LIS
Read more
,

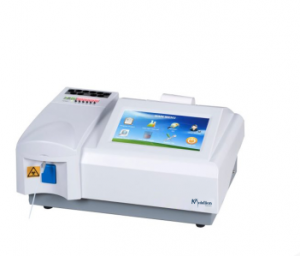

Chemaxel



Semi Auto Chemistry Analyzer

Chemaxel




Features:

  • Semi–automatic clinical chemistry analyzer
  • Facility for multiple standards for one parameter
  • Freely programmable against all commercially available chemistries
  • Temperature controlled cuvette compartment
  • Identification of upper and lower limits
Features Description
Type of analyzer Semi-automated chemistry analyzer
Display Digital display
Photometer
Test Mode kinetic, End point, Two point, Absorbance
Absorbance range 0-4,500 Abs
Absorbance precision outside 0.0001Abs, Inside 0.00001 Abs
Lamp Philips 6V 10W Halogen Lamp with long life
Standard wavelengths 340nm, 405nm, 505nm, 545nm, 580nm and 630 nm
Electronics
Screen: 7 Inch LCD
Printer: Internal thermal sensitive printer
Power supply: 100-240VAC, 50-60Hz, 100VA
CPU: ARM series high speed Micro CPU
Memory: 10,000 Tests
Software Windows Based
Test menu Stores 99 tests. All parameters including
wavelength, calculations, unit codes, linear and
normal ranges, rate timing, standard values, test names and previous standard curves stored
Miscellaneous
Work Environment Temperature 0°C -40°C, Humidity: 80%
Weight 5 KG
Dimensions 24cm x 34cm x 13 cm, 4.5kg
Sample Volume 400-800 ul



Accessories:

  • With Built–in Thermal Printer or External Laser Printer
  • Compatible Imported Online Sine wave UPS with Battery backup for 30 minutes (Emerson, Liebert, Chloride, MGE, APC or Equivalent)
  • Operating Manual with a Soft Copy
  • Service Manual with a Soft Copy
Read more

MCG-M2

ACT Machine

MCG-M2




ACT Machine:

Features:

  • Microprocessor control including tests PT, APTT, ACT, TT, FIB or any other
  • Used on both fresh and citrated whole blood sample
  • LCD display
  • Cuvette based technology and be able to work at low blood volumes.
  • Data storage for at-least 300 samples
  • Quality Control Check
  • Result printing capability
  • Internal temperature verification
  • Citrated venous whole blood, capillary whole blood

Technical Parameters:

Item Sample volume Measuring Range Clinical Reference
PT 20 pL 7-90 S 10-14 S
INR 20 pL 0.5-9 0.7-1.3
APTT 20 pL 18-120 S 22-38 S
TT 20 pL 10-90 S 14-20 S
FIB 20 pL 1.5-6 g/L 2-4 g/L
ACT 20 pL 50-500 S 80-140 S



Sample Volume: 20pL

  • The first POCT coagulation analyzer that can test PT/INR, APTT, TT, FIB and ACT
  • Portable Small size (weight only 850g); Use with rechargeable batter
  • Convenient: One step operation, no accessory required.
  • Rapid Get results within 3 mins; Short turnaround time
  • Accurate CV <5%

DISPOSABLE TEST STRIPS

  • Dried-reagent test strips
  • Room temperature storage
  • Long shelf-life: 18 months

Uses:

  • Screening test to assess the exogenous and endogenous coagulation system function
  • Monitoring anticoagulant treatment
  • Monitoring thrombolytic therapy
  • Monitoring the patient with certain disease, such as hepatopathy, infection, bum injury
Read more
,

Semi Auto Chemistry Analyzer (Chemaxcel)

Semi-automated chemistry analyzer

Medallion Equipment’s UK

Features

  • Semi-automatic clinical chemistry analyzer
  • Facility for multiple standards for one parameter
  • Freely programmable against all commercially available chemistries
  • Temperature controlled cuvette compartment
  • Identification of upper and lower limits
  • Large display for numeric values and graphs
  • Wavelength selectable via individual filters: UV-VIS 340–630 nm
  • Fully programmable for all commercially available chemistries
  • Cuvette compartment with temperature control
  • Built-in identification of upper and lower limits
  • Built-in printer
  • Programmable dilution factor
  • Operates on 220V, 50 Hz
  • Suitable online sine-wave UPS with 30-minute battery backup
  • Kits and reagents freely available in the market



Technical Specifications:

Features Description
Type of analyzer Semi-automated chemistry analyzer
Display Digital display
Photometer
Test Mode kinetic, End point, Two-point, Absorbance
Absorbance range 0-4,500 Abs
Absorbance precision outside 0.0001Abs, inside 0.00001 Abs
Lamp Philips 6V 10W Halogen Lamp with long life
Standard wavelengths 340nm, 405nm, 505nm, 545nm, 580nm and 630 nm
Electronics
Screen 7 Inch LCD
Printer: Internal thermal sensitive printer
Power supply: 100-240VAC, 50-60Hz, 100VA
CPU: ARM series high speed Micro CPU
Memory: 10,000 Tests
Software Windows Based
Test menu Stores 99 tests. All parameters including wavelength, calculations, unit codes, linear and normal ranges, rate timing, standard values, test names and previous standard curves stored
Miscellaneous
Work Environment Temperature 0°C -40°C, Humidity: 80%
Weight 5kg
Dimensions 24cm x 34cm x 13 cm, 4.5kg
Sample Volume 400-800 ul
Read more
