Semi Chemistry Analyser Chamacel



Feature Description
Type of analyzer Semi-automated chemistry analyzer
Photometer
Test Mode kinetic, End point, Two point, Absorbance
Absorbance range 0-4,500 Abs
Absorbance precision
Lamp		 outside 0.0001Abs, Inside 0.00001 Abs
Philips 6V 10W Halogen Lamp with long life
Standard wavelengths 340nm, 405nm, 505nm, 545nm,580nm and 630 nm
Filter type lad hard coat interference, 10nm half bandpass
Electronics
Screen 7 Inch LCD
Printer internal thermal sensitive printer
Power supply
CPU		 100 – 240VAC, 50 – 60Hz, 100VA
ARM series high speed Micro CPU
Memory 10,000 Tests
Software
Software Windows Based

Stores 99 tests. All parameters including wavelength,
calculations, unit codes, linear and normal ranges, rate
timing, standard values, test names, and previous standard curves stored
Test menu
Miscellaneous
Work Environment Temperature 0°C – 40°C, Humidity: 80%
Weight 5 KG
Dimensions 24cm x 34cm x 13 cm, 4.5kg
9 Medallion Glasgow Central, G3 7RFI UK

Read more

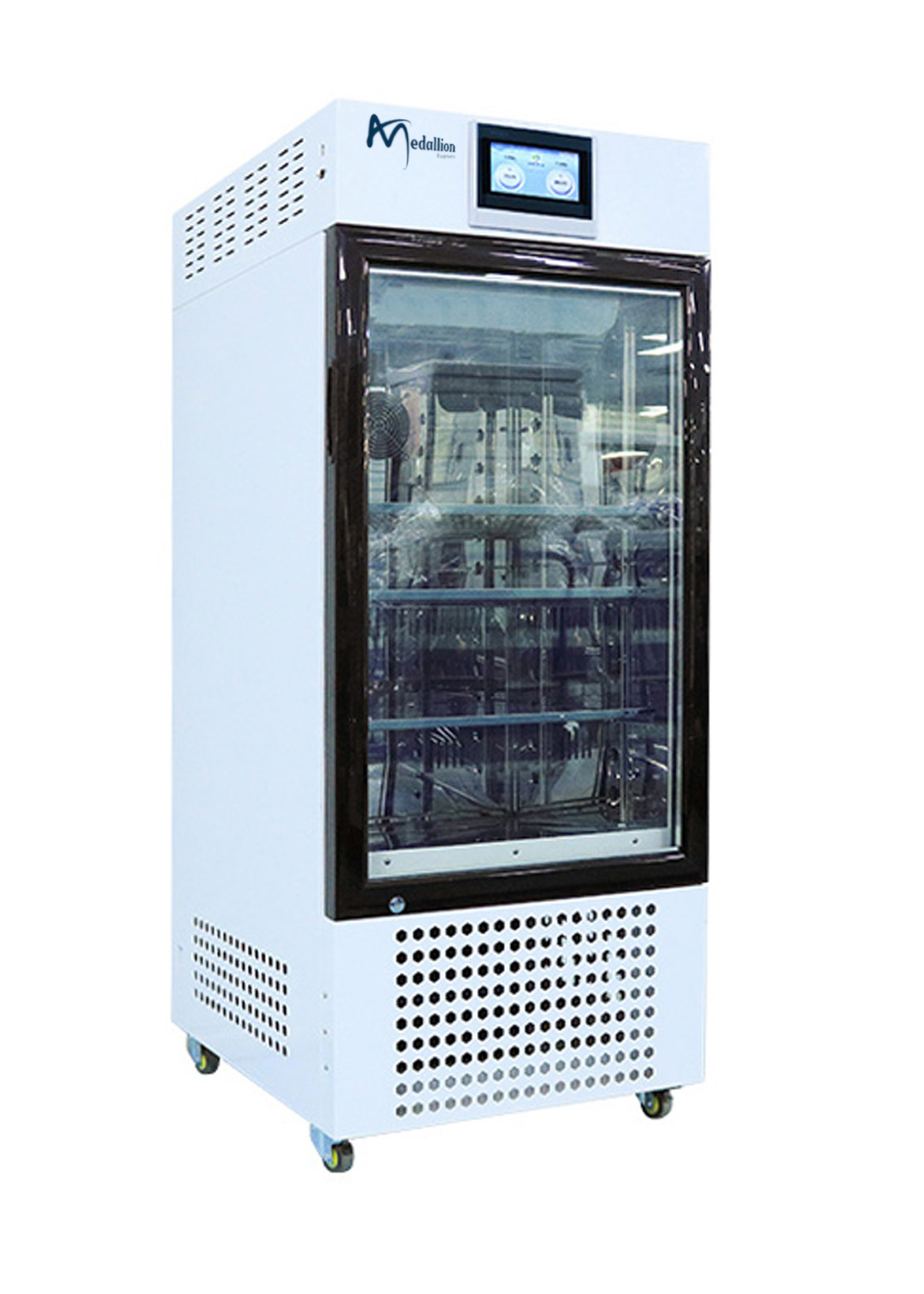

INCUBATOR MCI-C100

Features:

* The unique air duct design makes the temperature more uniform.

* The non-slip separator design prevents the sample from falling off when the shelves is pulled.

* The 7.0-inch color LCD touch screen can monitor the temperature curve in real time, and the menu-type operation interface is simple and easy to understand, which is convenient for observation and operation.

* Three-level operation interface authority (administrator, experimenter, operator), to prevent the operation ofirrelevant
personnel from causing test interruption or equipment failure.

* Equipped with an interconnected PC interface for remote operation monitoring and optional mobile phone APP control program.



Models:

Model MCI-C100 MCI-C150 MCI-C 200 MCI-C 300
Capacity 100L 150L 200L 300L
Temp.Range 0~100℃
Control Type Microcomputer controller
Temp.Fluctuation ≤±1℃(at 37℃)
Temp.Uniformity ≤±2℃(at 37℃)
Time Setting 1-999h59min
Alarm Audible and visual alarm:Over-temperature alarm
Shelves 3 pcs/adjustable
Material External cold-rolled steel with painting;internal stainless stee
Door Double tempered glass doors with heating function
Sterilization Type UV lamp sterilization
Ambient Temp.&Humidity 15~30℃,suggest 25±2℃;relative humidity ≤80%
Caster Universal caster
Consumption 1100W 1200W 1450W
Power Supply AC220V±10%,50/60Hz(Standard);AC110±10%,60Hz(Optional)
Internal Size(W*D*H)mm 495*400*535 495*400*685 495*500*775 475*490*1240
External Size(W*D*H)mm 598*690*1229 623*690*1391 598*797*1475 761*606*1900
Packing Size(W*D*H)mm 700*790*1380 723*790*1540 700*900*1635 706*861*2054
Gross Weight(kg) 115 120 130 156



Read more

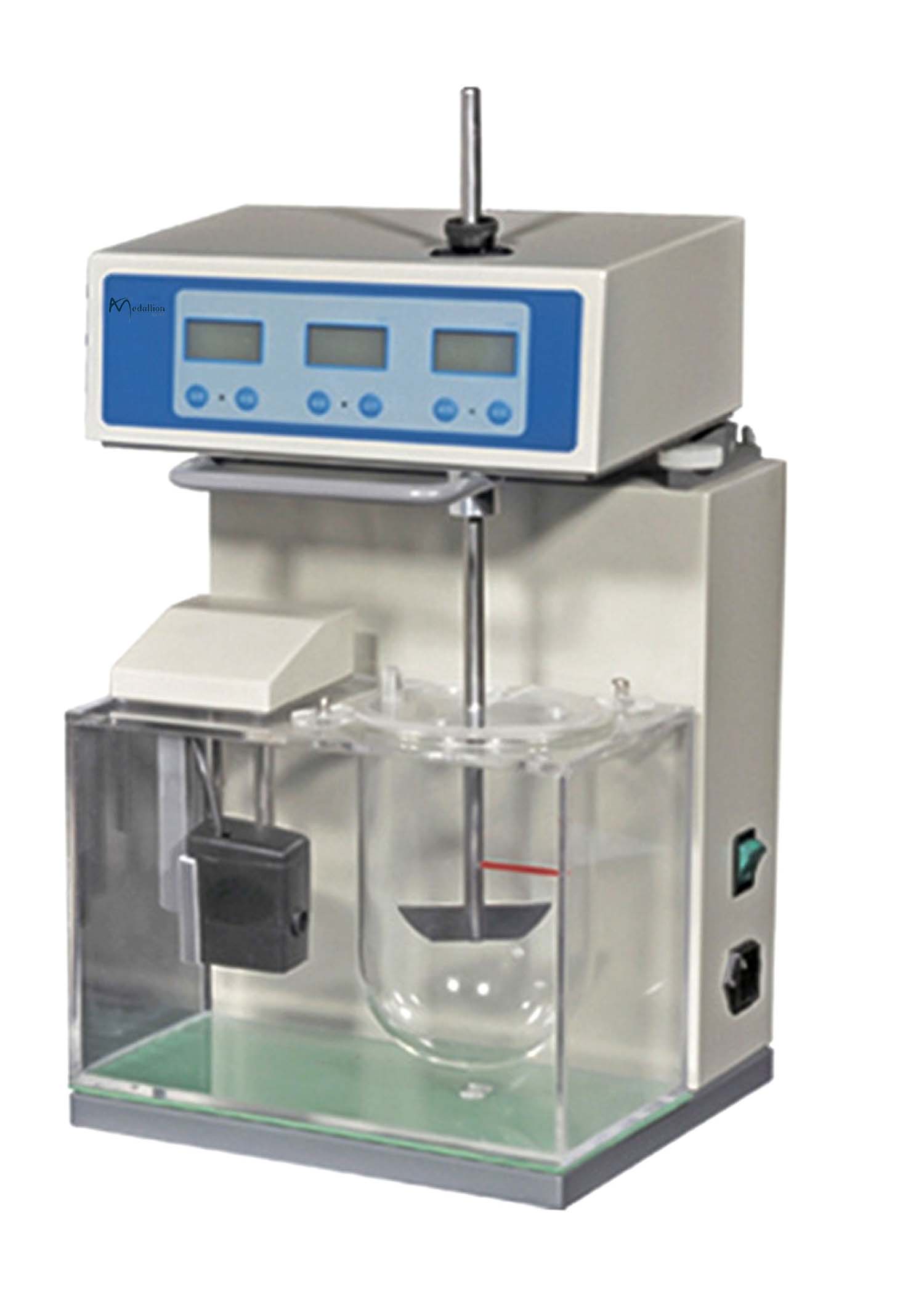

MK-MC1

MK-MC1

Features:

* Auto-diagnose, auto-alarm.

* Stainless steel basket and paddle.

* Micro processor and LCD Display.

* The head part of the instrument can be turned over smoothly and flexibly

* Water circulating in the bath to keep the temperature conformity with magnetic pump.



Technical Parameters:

Model MK-MC1
Basket 1 pc
Speed Range 20~200rpm
Speed Precision ±2rpm
Temp. Range RT +45.0°C
Temp. Precision ±0.3°C
Timing Range 5~900min
Time Precision ±0.5min
Working Time >24h
Paddle Swing Amplitude ±0.5mm
Basket Swing Amplitude ±1.0mm
Power Consumption 600W
Power Supply AC110/220V±10%, 50/60HZ
External Size(W*D*H)mm 260*300*480
Package Size (W*D*H)mm 490*395*560
Gross Weight(kg) 18.5



Read more

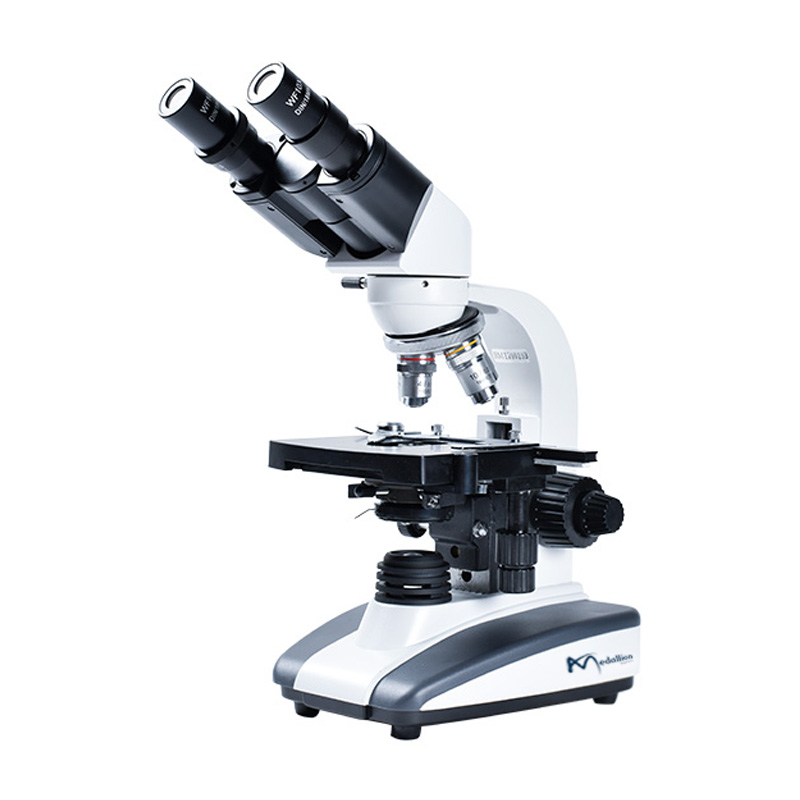

MBM-2C









Features:

The Biological Microscope BM-2CA is your gateway to exploring the tiniest details of life with unparalleled precision and clarity. This cutting-edge microscope is designed to meet the needs of both beginners and experienced researchers, making it an essential tool for various scientific disciplines and educational settings

Technical Parameters:

Model MBM-2C
View Head Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm
Eyepiece P10X/18mm, P16X/11mm
Objective 4X  N.A=0.10  WD=37.50mm
10X  N.A=0.25  WD=7.31mm
40X  N.A=0.65  WD=0.63mm
100X(Oil)  N.A=1.25  WD=0.18mm
Focusing Coaxial Coarse ＆ Fine Adjustable System, Range 15mm, Fine Division 0.002mm
Stage Mechanical Stage 140*140mm, Moving Range 75*50mm, Vernier 0.1mm
Condenser Abbe NA1.25 centerable condenser with Iris Diaphragm ＆ Filter
Illumination LED lamp, brightness adjustable
Filter Blue, yellow, green
Power Supply AC85~265V， 50/60Hz
Package Size 435*330*235mm
Gross Weight 5.5kg
Read more

VERTICAL AUTOCLAVE MVA-B15

Safety Features:

* Over-temperature automatic protection device. * Over-pressure protection measures. * Door safety detection device.

* Over-current and leakage safety protection. * Water shortage protection device.

Technical Features:

* LED screen displays. * Independent quick service window, easy for repairing and maintenance. * Audio and visual alarm: anti-dry

burning, over-pressure protection, over-temperature protection, power safety protection. * Sterilization programs for wrapped or

unwrapped instruments, rubber, dressing, etc. * Hand wheel translation type door opening, fast and labor-saving. * Using single-chip

microcomputer control, heating, sterilization, exhaust, fully automatic control, without too much manual operation. * Adopt gravity

displacement and positive pressure pulsation exhaust mode to discharge the load and cold air in the sterilization room. * The sterilization

chamber and the sterilization basket are made of high-quality stainless steel SUS304, and the interior is polished. * Optional sterilization bucket.

Technical Parameters:

Model MVA-B15
Capacity 18L
Designed Pressure 0.170 (MPA)
Designed Temp 129°C
Operating Temp 126 C (MPA) 0.142 (MPA)
Working Medium Steam
Power 2KVA
Frequency 50HZ
Voltage 220V



Read more

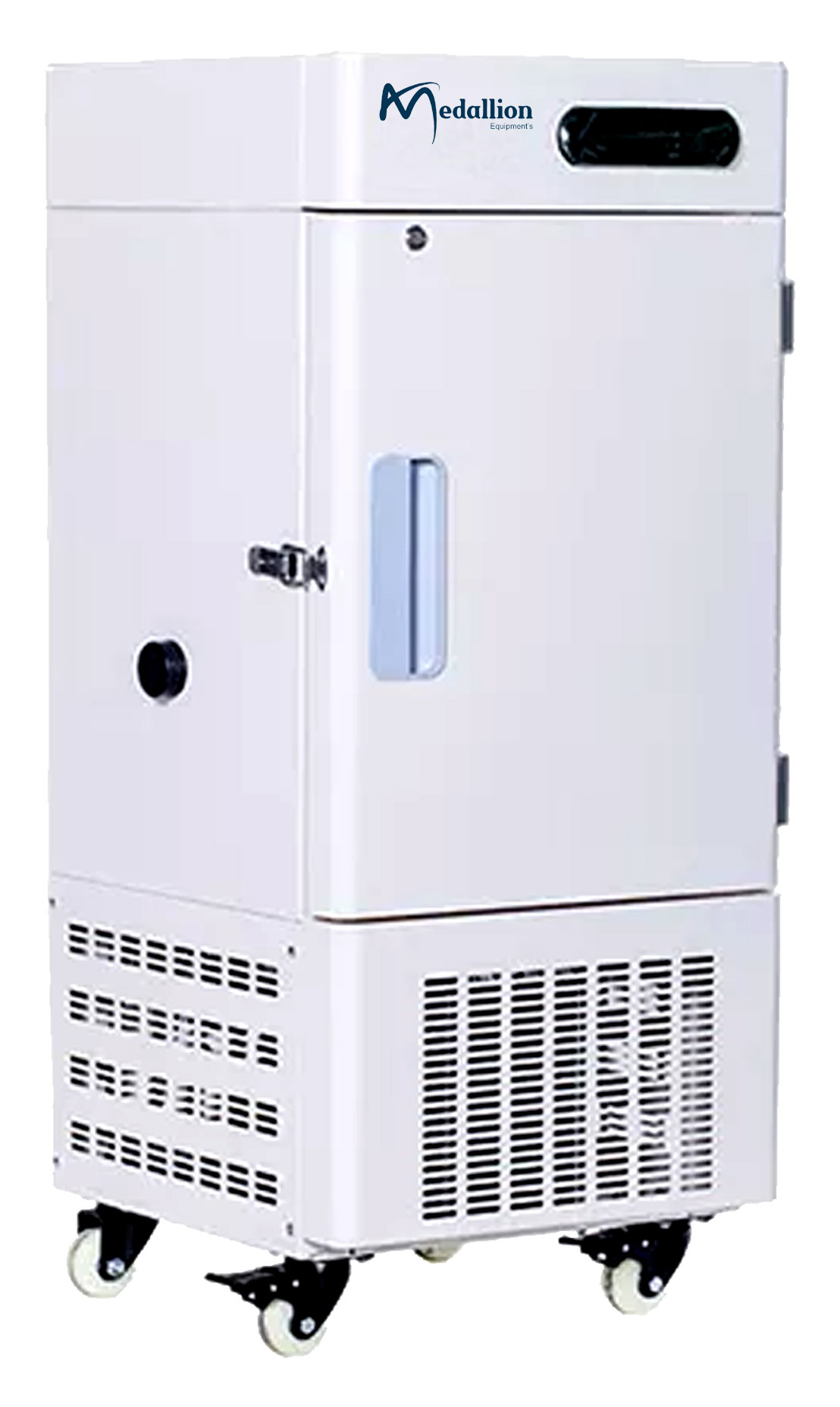

DEEP FREEZER MUF-M28

Model：

Model MUF-M28
External Size (W*D*H) mm 505*520*1165
Internal Size (W’D·H) mm 266*261*400
Capacity 28L
Type Vertical
Temp. Range -40℃～-86℃
Temp. Accuracy 0.1℃
Control System Microprocessor control, LED Digital Display
Audible and Visual Alarm
Alarm Method
Refrigerant		 High and low-temperature alarm, sensor failure alarm.
Sound beeps and lights flash
R404A and R23
Construction Foam Layer Thickness 100mm
Internal Material 304 stainless steel
External Material Sprayed steel plate
Chamber with Inner Door 1
Shelf 1pc
Test Port φ18mm*1
Consumption 390w
Power Supply AC110V/220V±10%,50/60Hz
Package size (W*D*H) mm 580*600*1325
Gross Weight 85kg



Read more

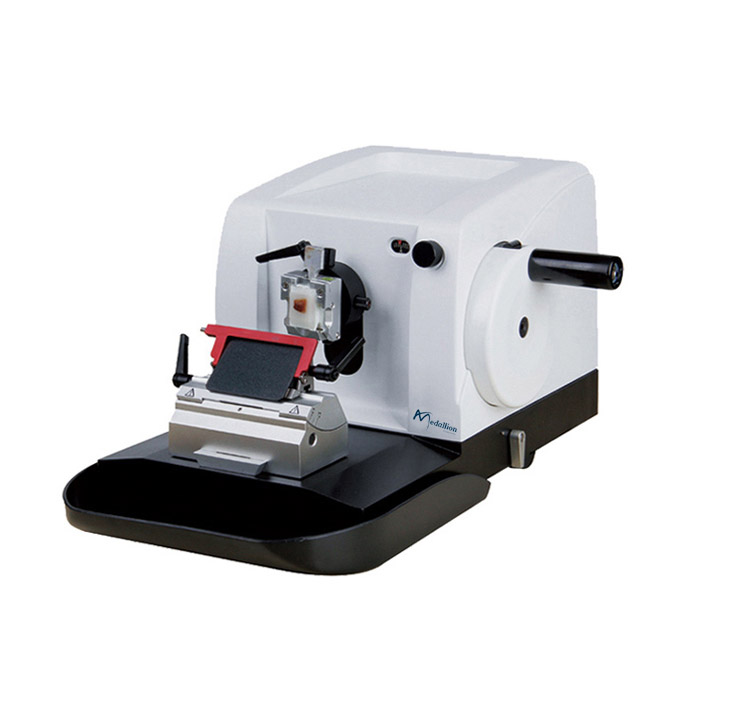

MRM-18 Manual Rotary Microtome

Features:

*Large-volume removable waste tray on the top of the housing, convenient to use.

*Imported cross-roller guide rails and high-precision screw motion mechanism. meihuatrade

*Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.

* Small coarse-advance hand-wheel is close to the operator, in accordance with ergonomic design.

*The precise positioning system is not only easy to use but also provides accurate X- and Y-axis adjustment

*Hand-wheel balance is precisely adjusted and locked at any position, ensuring the safety and convenience of sectioning.

* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration; cassette clam is optional.

* Blade holder can be laterally moved without direct contact, enabling the use of the entire length of the blade. (three different segments)

* Cassette clamp can be locked at any position along each of the three axes, enabling easy adjustment of the specimen

sectioning angle.

* The red bar on the blade holder covers the whole length of the blade to protect the user and enables easy changing of the blade.



Models:

Model MRM-18
Sectioning Thickness

Range

 0~60μm
Section Thickness

Setting Options

 0〜2μm increment 0.5μm

2〜10μm increment 1μm

10~20μm increment 2μm

20〜60μm increment 5μm
Trimming Thickness Range 0〜60μm
Mini. Sectioning Thickness 1pm
Max. Specimen Size 60*70mm (optional clamp)
Precision ±1%
Specimen Horizontal Stroke 29mm
Specimen Vertical Stroke 60mm
Specimen Orientation XY-8°
External Size(W*D*H) 570*440*290mm
Package Size(W*D*H) 620*530*450mm
Gross Weight 40kg
Read more

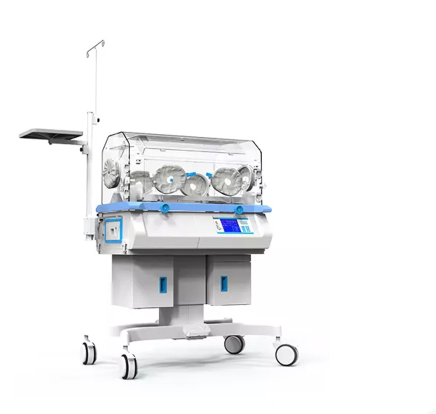

MBI-B32

MBI-B32

Intensive Care Baby Incubator

Features:

  1. LCD display.
  2. Double control modes of bed temperature and skin temperature.
  3. Double-layer thermostatic cover, automatic air curtain device.
  4. Humidity control function.
  5. Air&Oxygen blender.
  6. Oxygen supply system.
  7. Baby cot is infinitely adjustable.
  8. 24 kinds of sound and light alarm, comprehensive protection of baby safety.



Technical Parameters:

General Parameters Item Specifications
Power Supply AC220V, 50/60Hz(Standard) 1320VA;
AC110V, 60Hz(Optional)
Size(L*W*H) 950*645*(1250~1450)mm
Maximum Heater Output Power(220VAC） Air Chamber Heater: 330W

Water Tank Heater: 155W
Auxiliary Network Power Output AC220V/50Hz, both maximum permissible currents are 220V 1.5A
Heater Indication 0~100%, 10% increasing amount
Temperature Control Mode Bed temperature mode; The skin temperature mode
Bed Temperature Control Temperature Range 25.0~37.0℃;

37.1~39.0℃(Span mode)
Skin Temperature Control Range 34.0~37.0℃; 37.1~38.0℃(Span mode)
Skin Temperature Sensor Display Range 5.0~65.0℃
Heating Time ≤50min
Temperature Variability ≤0.5℃
Temperature Uniformity(Mattress in horizontal position) ≤0.8℃
Temperature Uniformity(Mattress in tilted position) ≤1.0℃
Difference Between Average Incubator Temperature and Control Temperature ≤1.5℃
Skin Temperature Sensor Accuracy ±0.3℃
Humidity Control The running time of the tank after it is filled with distilled water Humidity below 70%RH, at least 24h
Water Tank Capacity 1500ml
Humidity Display Range 0%RH~99%RH
Humidity Control Range CAH%RH~90%RH(1% per adjustment)
Humidity Control Accuracy ±10%
Oxygen Concentration Control Oxygen Concentration Display Range 0%~99%
Oxygen Concentration Display Resolution 1%
Oxygen Concentration Control Accuracy ±5% oxygen volume concentration
Oxygen Concentration Setting Range 21%~60%(1% per adjustment)
Oxygen Sensor Service Life The maximum use time is 10000h at 100% oxygen concentration
Transport Storage Temperature -20℃~+55℃
Atmospheric Pressure Range 500hPa~1060hPa
Relative Humidity ≤93%RH
Packing Size/Gross Weight 1150*800*1600mm

190kg
The Work Environment Relative Humidity 30%RH~75%RH
The Environment Temperature +20℃~+30℃
Pressure Range 700hPa~1060hPa
Service Altitude ≤2000m
Over Voltage Category II
Pollution Levels 2
Ambient Air Velocity ≤0.3m/s
Other Indicators Environmental Noise In Incubator Baby Compartment No more than 55dB(A) at stable temperature
Carbon Dioxide Concentration In The Infant Compartment A mixture of 4% carbon dioxide and air was fed into an 8mm diameter tube in the vertical direction from the mat to the top of the box at 750mL/min to a point 10cm above the mattress center and 10cm above the center. The concentration was less than 0.5% after stabilization
The velocity of air flow over a baby’s mattress ≤0.35m/s
General

Alarm

 Power failure alarm, fan alarm, sensor alarm, deviation alarm, over temperature alarm, water tank placement error alarm, water shortage alarm
The System Alarm Mcu1 and Mcu2 communication error alarm, Mcu2 and Mcu3 communication error alarm, analog-to-digital conversion chip 2544 failure alarm, analog-to-digital conversion chip 2548 failure alarm, over temperature alarm, temperature heating system failure, humidity heating system failure



Configuration:

Model MBI-B32
Temp. Control Bed/Skin Temperature
Display LCD
Bed Temp. Control Range 25℃~39℃
Skin Temp. Control Range 34℃~38℃
Humidity Control Range CAH%~99%RH
Oxygen Control Range 21%~99%
Cabinet Yes
Height Adjustable Yes
Read more

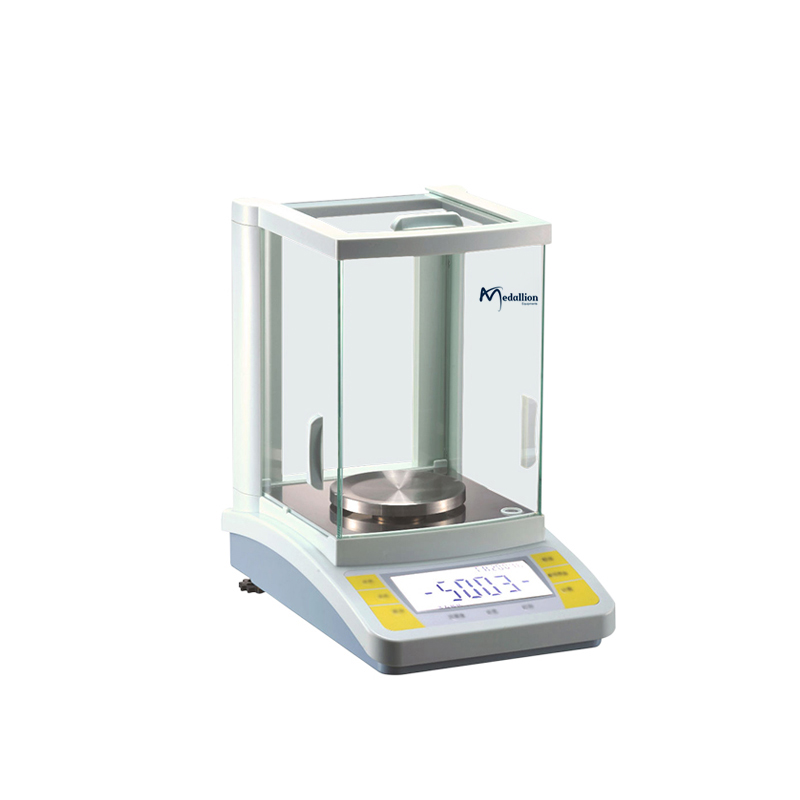

Top Loading Electronic Balance MDW-B10



Features:



*Humanized design, novel design and five-side full-transparent windshield.



*A new-generation electromagnetic balance weighing sensor guarantee high precision.



*Application programs such as automatic fault detection, four-point linear calibration and over-load protection.



*Ultra-large LCD display brings clearer and more comfortable visual sense to operate.



*Built-in lower weighing hook guarantees convenient use.



Functions:



*Multiple functions guarantee easy and reliable operation, including auto-counting, unit conversion (metric carat, gold



ounce, etc.), stability, full-scale faring, zero-memory, etc.



* Built-in RS232C output interface guarantees direct connection to external equipment such as computer and printer.



* Built-in lower weighing hook guarantees convenient use.



Power Supply: AC110-220V/50-60HZ； Power Cord, no battery.



Technical Parameters:



Model No. MDW-B10
Capacity 0-410g
Readability 1mg
Scale Size 110mm
Stable Time 1s
Repeat Ability 1mg
Liner 2mg
N.W. 6.8kg
External Size 350215340mm
Package Size 480375515mm
G.W. 8.5kg
Work Space Height 240mm
Calibration External Cal
Read more
,

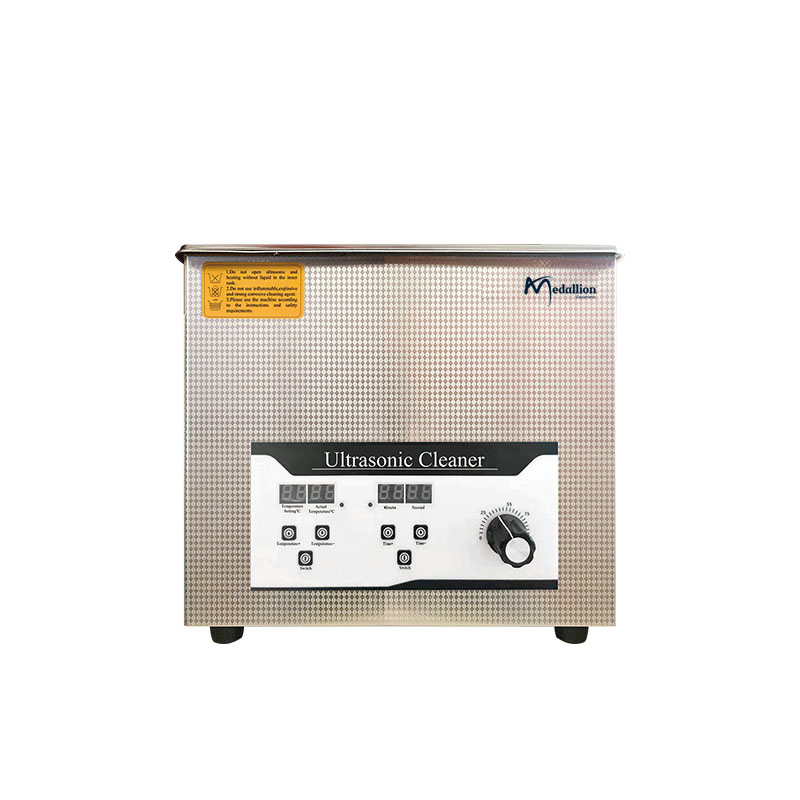

UltraSonic Cleaner MK-M180

Introduction



Ultrasonic cleaner is a non-polluting, non-damaging, multi-purpose cleaning equipment. It not only has a powerful cleaning



effect on objects with complex shapes, but also accelerates dissolution and emulsification. Ultrasonic cleaner has the



unparalleled advantages of other physical cleaning or chemical cleaning, and is widely used in service industry, electronics



industry, pharmaceutical industry, laboratory, machinery industry, cemented carbide industry, chemical industry and other



fields.



Features：



Standard accessories: soundproof cover, basket, PVC pipe.



The shell and inner cavity are made of 304 stainless steel, which is anti-corrosion.



LED display for BK-AD series.



Technical Parameters:





Model MK-M180
Capacity (L) 6.5
Ultrasonic Frequency Single Frequency, 37kHz
Time Range / Heating Temperature 1-99 minutes / RT~80°C
Ultrasonic Power 180W
Heating Power 500W
Power Supply Standard: 220V 50/60Hz, optional: 110V 50/60Hz
Tank Size (mm) 300 x 150 x 150
External Size (mm) 330 x 180 x 310
Packing Size (mm) 440 x 280 x 355
Gross Weight (kg) 7





Read more
