DEEP FREEZER MUF-M28

Model：

Model MUF-M28
External Size (W*D*H) mm 505*520*1165
Internal Size (W’D·H) mm 266*261*400
Capacity 28L
Type Vertical
Temp. Range -40℃～-86℃
Temp. Accuracy 0.1℃
Control System Microprocessor control, LED Digital Display
Audible and Visual Alarm
Alarm Method
Refrigerant		 High and low-temperature alarm, sensor failure alarm.
Sound beeps and lights flash
R404A and R23
Construction Foam Layer Thickness 100mm
Internal Material 304 stainless steel
External Material Sprayed steel plate
Chamber with Inner Door 1
Shelf 1pc
Test Port φ18mm*1
Consumption 390w
Power Supply AC110V/220V±10%,50/60Hz
Package size (W*D*H) mm 580*600*1325
Gross Weight 85kg



Read more
,

Vertical Freeze Dryer

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

Technical Parameters:

Model MMFD-E12
Type Standard chamber with 8 port manifold
Total Qty. Of Vial Φ22 /
Total Qty. Of Vial Φ16 /
Total Qty. Of Vial Φ12 /
Package Size(W*D*H),mm Main Body
Accessory
Gross Weight 124
Read more

Laboratory Refrigerator

MPR-E30I

Medallion Equipments UK

Technical Parameters:

Model MPR-E30I
External Size(W*D*H)mm 1800*775*1965
Capacity 1500l
Temp. Range 2~8°C
Temp. Accuracy 0.1°C
Control System Microprocessor Control&Large Screen LED Display
Alarm Senor fault, door ajar
Refrigeration Type Forced air refrigeration system
Refrigerant R134a, CFC Free
Condenser&Evaporator High efficiency air-cooled condenser, made of copper
Defrost Frostless design
Construction Structure Unibody design&Mono-assemblyfoaming(rigid polyurethane insulation material)
Internal Material Stainless steel
External Material Stainless steel
Shelves Adjustable shelves made of high quality steel wire
12pcs
Consumption 1040W/1000VA
Power Supply AC110/220V±10%, 50/60Hz
Standard Accessory LED lamp, Shelves, Door keys, Testing hole, Battery
Optional Accessory USB port, Printer
Package Size(W*D*H)mm 1880*820*2150
Gross Weight(kg) 319
Read more

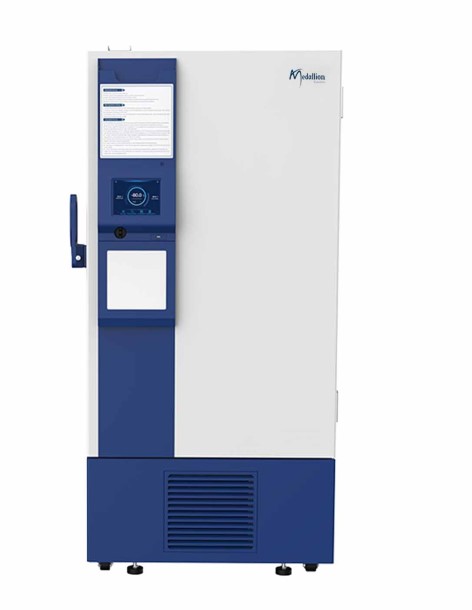

Freezer -86°C

MUF-D608



Introduction:
The -86 ℃ freezer ‌ is a kind of ultra-low temperature refrigeration equipment, which is widely used in scientific research, medical treatment, biological engineering and other fields. Its main function is to provide an extremely low temperature environment to preserve temperature-sensitive samples and materials.

Technical Parameters:

Model MUF-D608
Capacity 608L
Temp. Range -40~-86℃
Temp. Accuracy 0.1℃
Temp. Uniformity ±1℃
Temp. Stability ≤6℃
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) ≤45min
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) ≤7h
Control System Microprocessor control
Display LCD
Alarm High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type Direct-cooling
Refrigerant R290/R170, 358g
Compressor International famous brand compressor/2
Condenser & Evaporator Built-in coil type, copper pipe, copper tube and aluminum fin
Defrost Manual defrost
Construction Polyurethane cyclopentane foam
Material Internal Material SUS304 stainless steel
External Material Sprayed steel plate
Door Outer door: cyclopentane monomer foam door*1

Inner door: cyclopentane monolithic foaming, stainless steel door*2
Consumption 1110W

Apparent power: 1870VA
Power Supply AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
Connectivity 4–20 mA, RS485
Casters Yes
Shelf 3
Standard Accessory Test port*2, USB interface, RS485 interface
Optional Accessory Liquid nitrogen backup system, temperature recorder
Internal Size(W*D*H) 620*755*1280mm
External Size(W*D*H) 1000*1147*1996mm
Package Size(W*D*H) 1150*1280*2210mm
Net Weight 360kg
Gross Weight 438kg
Read more

VERTICAL FREEZE DRYER

MDK-P8

Technical Parameters:

Model MDK-P8
Type Standard chamber
Freeze Drying Area 0.18㎡
Tray 4pcs
Height Between Trays 80mm
Cold Trap Temperature ≤-60℃(No load)(-80℃, -110℃optional)
Cold Trap Capacity 28L
Cold Trap Size(Diameter*H) Φ300*410mm
Vacuum Degree ≤5Pa
Water Capture Capacity 6L/24h
Tray Size(D*H) Φ240*20mm
Freeze Drying Time 24~36h
Loading Capacity/Shelf(Liquid) 1.8L
Total Loading Capacity(Liquid) 3.6L
Drying Chamber Size(Diameter*H) Φ300*445mm
Total Qty. of Vial Φ22 /
Total Qty. of Vial Φ16 /
Total Qty. of Vial Φ12 /
Refrigerant -60℃: R600a, R23

-80℃: R404a, R23
Cooling System Standard: Air cooling

Optional: Water cooling
Power Supply Standard: 220V, 50Hz

Optional: 220V, 60Hz; 110V, 60Hz
Power Consumption 1800W
Standard Accessory Vacuum pump 4L/S, Material tray*4, Drying rack*1, Cover*1, Acrylic bucket*1(all models)

Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8 pcs, USB port
Optional Function&Accessory Equipment moving frame, vacuum pump of other specifications, oil mist filter, automatic air intake function, automatic water drainage function, and other customization(for all models)

600ml/1200ml wide-mouth flask

Tray*2
External Size(W*D*H)mm 545*686*938
Package Size(W*D*H)mm Main Body 835*680*1230
Accessory 725*665*705
Gross Weight(kg) Main Body -60℃: 118

-80℃: 136
Accessory 52



Read more

MUF-T86

Deep freezer (-800)

MUF-T86

Technical Parameters:



Model MUF-T86
Capacity 348L
Temp. Range -40~-86℃
Temp. Accuracy 0.1℃
Temp. Uniformity ±4℃
Temp. Stability ≤6℃
Minimum Storage 120 × 450 mL plasma bags at +25 °C ambient temperature
Recovery Time(Recover to -75℃ in an ambient temp. of  25℃) ≤30min
Cooling Time(Cool down to -80℃ in an ambient temp. of  25℃) ≤7h
Control System Microprocessor control
Display LCD
Alarm High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type Direct-cooling
Refrigerant R290/R170, 308g
Compressor International famous brand compressor/2
Condenser & Evaporator Built-in coil type, copper pipe, copper tube and aluminum fin
Defrost Manual defrost
Construction Polyurethane cyclopentane foam
Material Internal Material SUS304 stainless steel
External Material Sprayed steel plate
Door Outer door: cyclopentane monomer foam door*1

Inner door: cyclopentane monolithic foaming, stainless steel door*2
Consumption 915W

Apparent power: 1386VA
Power Supply AC220V, 50Hz (Standard); 110/220V, 60Hz (Optional)
Casters Yes
Shelf 3
Standard Accessory Test port*2, USB interface, RS485 interface
Optional Accessory Liquid nitrogen backup system, temperature recorder
Internal Size(W*D*H) 490*612*1150mm
External Size(W*D*H) 869*989*1924mm
Package Size(W*D*H) 1020*1180*2130mm
Net Weight 264kg
Gross Weight 332kg
Read more

-40°C Freezer

MDF-D40

Medallion Equipment UK



-40℃ Low Temperature Freezer Two rooms design is suitable for storing multi kinds of samples that need different temperature, or some samples that need separate storage. This type of freezers has independent temperature control to help you save both room and power.



Technical Parameters:

Model MDF-D40
Capacity 528L
Temp. Range -15~-40℃
Temp. Accuracy 0.1℃
Temp. Uniformity ≤4℃
Temp. Stability ≤4℃
Recovery Time (Recover to -37℃ in an ambient temp. of  25℃) ≤30min
Cooling Time (Cool down to -40℃ in an ambient temp. of 25℃) ≤3h
Control System Microprocessor control
Display LED display
Alarm High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type Direct-cooling
Refrigerant Upper chamber: R290, 63g;

Lower chamber: R290, 63g
Compressor International famous brand compressor/2
Condenser & Evaporator Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Defrost Manual defrost
Construction Polyurethane cyclopentane foam
Material Internal Material 304 stainless steel
External Material Sprayed steel plate
Door Outer door: cyclopentane integral foam outer door*2

Inner door: sprayed steel plate door*4
Consumption 909W
Power Supply AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
Casters Yes
Shelf 4
Standard Accessory Test hole*2, USB interface
Optional Accessory Temperature recorder, RS485 interface, outer door lock
Internal Size(W*D*H) Upper Chamber 720*649*563mm
Lower Chamber
External Size(W*D*H) 890*810*1884mm
Package Size(W*D*H) 1030*950*2100mm
Net Weight 177kg
Gross Weight 200kg
Read more

-30ᵒC Freezer

MDF-D30

Medallion Equipment UK

Low-temperature storage: The -30 degree temperature range is ideal for many items in the medical field that require specialized refrigeration conditions. These items include vaccines, blood products, medications, and other biological samples. The medical refrigeration unit can provide a stable and consistent low-temperature environment, ensuring the quality and effectiveness of these items.



Technical Parameters:

Model MDF-D30
Capacity 528L
Temp. Range -10~-30℃
Temp. Accuracy 0.1℃
Temp. Uniformity ≤3℃
Temp. Stability ≤3℃
Recovery Time(Recover to -22℃ in an ambient temp. of  25℃) ≤15min
Cooling Time(Cool down to -25℃ in an ambient temp. of  25℃) ≤1.5h
Control System Microprocessor control
Display LED display
Alarm High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type Direct-cooling
Refrigerant Upper Chamber: R290, 62g

Lower Chamber: R290, 62g
Compressor International famous brand compressor/2
Condenser & Evaporator Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Defrost Manual defrost
Construction Polyurethane cyclopentane foam
Material Internal Material 304 stainless steel
External Material Sprayed steel plate
Door Outer door: cyclopentane integral foam outer door*2

Inner door: optional
Consumption 821W
Power Supply AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer)
Casters Yes
Shelf 4
Standard Accessory Test hole*2, USB interface
Optional Accessory RS485 interface, inner door, temperature recorder
Internal Size(W*D*H) Upper Chamber 720*649*563mm
Lower Chamber
External Size(W*D*H) 890*810*1884mm
Package Size(W*D*H) 1030*950*2100mm
Net Weight 177kg
Gross Weight 200kg
Read more

MDF-528D

Deep Freezers (-20o C) Large

MDF-528D

Technical Parameters:

Model MDF-528D
Capacity 528L
Temp. Range -10~-25℃
Temp. Accuracy 0.1℃
Temp. Uniformity ≤3℃
Temp. Stability ≤3℃
Recovery Time(Recover to -22℃ in an ambient temp. of 25℃) ≤15min
Cooling Time(Cool down to -25℃ in an ambient temp. of 25℃) ≤1.5h
Control System Microprocessor control
Display LED display
Alarm High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type Direct-cooling
Refrigerant Upper chamber: R290, 62g;

Lower chamber: R290, 62g
Compressor International famous brand compressor/2
Condenser & Evaporator Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Defrost Manual defrost
Construction Polyurethane cyclopentane foam
Material Internal Material 304 stainless steel
External Material Sprayed steel plate
Door Outer door: cyclopentane integral foam outer door*2

Inner door: optional
Consumption 821W
Power Supply AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer)
Casters Yes
Shelf 4
Standard Accessory Test hole*2, USB interface, shelf
Optional Accessory RS485 interface, inner door, temperature recorder
Internal Size(W*D*H) Upper Chamber 720*649*563mm
Lower Chamber
External Size(W*D*H) 890*810*1884mm
Package Size(W*D*H) 1030*950*2100mm
Net Weight 177kg
Gross Weight 200kg
Read more

Deep freezer (-200)

MUF-F25

Technical Parameters:

Model MUF-F25
Capacity Refrigerator 183L
Freezer 185L
Temp. Range Refrigerator 2~8℃
Freezer -10~-30℃
Temp. Accuracy 0.1℃
Capacity ~15CFT
Temp. Uniformity Refrigerator ≤2℃
Freezer ≤3℃
Temp. Stability ≤3℃
Recovery Time Refrigerator ≤15min(Recover to 8℃ in an ambient temp. of 32℃)
Freezer ≤15min(Recover to -22℃ in an ambient temp. of 25℃)
Cooling Time Refrigerator ≤80min(Cool down to 6℃ in an ambient temp. of 32℃)
Freezer ≤1.5h(Recover to -25℃ in an ambient temp. of 25℃)
Control System Microprocessor control
Display LED
Alarm High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type Refrigerator Air-cooling
Freezer Direct-cooling
Refrigerant Refrigerator R290/25g
Freezer R290/40g
Compressor International famous brand compressor/2
Condenser&Evaporator Refrigerator Wire-on-tube Bundy tube condenser; Bundy tube evaporator
Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Freezer
Defrost Refrigerator Automatic defrost
Freezer Manual defrost
Construction Polyurethane cyclopentane foam
Material Internal Material 304 stainless steel
External Material Sprayed steel plate
Door Outer door: cyclopentane monolithic foam door*2

Interior door: /
Consumption 594W
Power Supply AC220V, 50Hz (Standard); 220V, 60Hz, 110V, 60Hz (Optional, external transformer)
Casters Yes
Shelf Refrigerator 3
Freezer 1
Standard Accessory Test hole*2, USB interface
Optional Accessory Temperature recorder, RS485 interface
Internal Size(W*D*H) Refrigerator 580*575*563mm
Freezer
External Size(W*D*H) 750*736*1884mm
Package Size(W*D*H) 890*880*2100mm
Net Weight 153kg
Gross Weight 168kg
Read more
