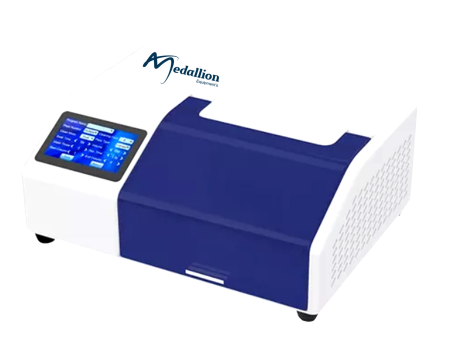

96 Well Microplate Washer

MK-M96

Medallion Equipments

Technical Specifications:

Features:

1. Microcomputer control, automatically complete the plate washing operation.
2. The liquid level sensing function automatically detects the liquid level, and automatically alarms when the cleaning liquid is insufficient and the waste liquid is overflowing.
3. The user-friendly operating system allows users to customize the plate type, set the number of washes, the amount of wash solution, the way to wash the plate, the suction point, the soaking and shaking time and other parameters.
4. The wash head is self-balancing, has two-point aspiration, and performs bottom flushing.
5. 2 kinds of Automatic washing, Soaking and Shaking, to reduce the interference adsorption during the reaction; time adjustable.

Technical Parameters:

Automatic Immune Analyzer

MCM-M180

ACCURATE TEST RESULT

• Sample probe with function of clot detection
• Reagent disk refrigerated at 2−8 °C
• Unique design of reagent kits, non-contact mixing method
• Non-contact multi-position mixing method of reaction disk
• Precise magnetic particles separation technology
• Quality control and calibrators need no pre-treatment
• Query successful
• Automatic Sample Clot Detection and Rejection
• Fully Automated Operation
• RS-232 or USB interface
• LIMS compatible for seamless integration
• Operates on 220V, 50 Hz AC
• Touchscreen Interface

EFFICIENT WORKING MODE

• Time to first result: 11 minutes
• Batch test throughput up to 180 T/H
• 90 sample positions
• Flexible STAT priority function
• 25 reagent positions
• Reagents auto registered
• Samples and consumables on-board loading

HUMANIZED FUNCTIONAL DESIGN

• Unique sample rack design
• Integrate reagent kits design, flexible test package setting
• Intelligent & personalized software design
  • Test countdown
  • Standby countdown
  • Maintenance countdown

Reagent Panel

• Thyroid
• Fertility
• Cardiac Marker
• Liver Fibrosis
• Bone metabolism
• Anemia
• Metabolism
• Inflammation
• Hypertension & Renal function
• Infectious
• Tumor Marker
• Drug Monitoring

User Adjustable Settings:

• Sample Types Supported:
  • Serum
  • Plasma
  • Urine
• Sample Volume:
  • 50–250 µL (test dependent)
• Sample Capacity:
  • Minimum 50 samples
  • Continuous loading platform for uninterrupted workflow
• Onboard Reagent Capacity:
  • 24 or more reagents simultaneously
• Test Parameters:
  • As per user/end-user requirements (to be defined by the procuring agency)

Displayed Parameters / Assay Capabilities:

• Automatic testing for analytes related to:
  • Cancer
  • Infectious Diseases
  • Cardiovascular Disease
  • Thyroid Disease
  • Fertility/Hormones
  • Polio
  • Vitamins
  • Hepatitis Markers

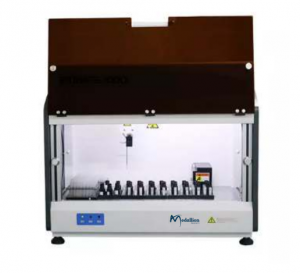

Auto ELISA Processor MES-1000:

Features：

1. 1 robotic arm, 1 pipetting probe(10~1000μl).
2. 2 unit 96 well microplates(independent incubating).
3. 1 unit reader& washer (auto reading and washing)

Technical Parameters:

Optical Coagulation Analyzer:
OCG-102:
Optical Coagulation Analyzer, used together with the test reagents, delivers quick lab-quality results that support clinical decisions in cardiology, surgery and intensive care. The first POCT coagulation analyzer that can test PT/INR, APTT, TT, FIB and ACT.
The first POCT coagulation analyzer that can test PT/INR, APTT, TT, FIB and ACT.
APPLICATIONS:
Screening test to assess the exogenous and endogenous coagulation system function
Monitoring anticoagulant treatment
Monitoring thrombolytic therapy
Monitoring the patient with certain disease, such as hepatopathy, infection, burn injury
Specification

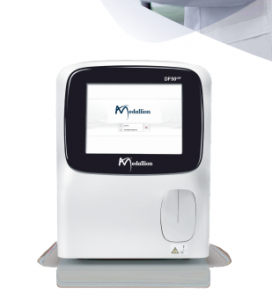

Blood hematology analyzers DF50 CRP

Principles:

Flow cytometry (FCM) + Tri-angle laser scatter for WBC dierentiation
Impedance method for WBC, RBC and PLT test
Cyanide free colorimetry for HGB test
Latex-enhanced scattering immunoturbidimetry for CRP test

Parameters:

27 reportable parameters:
CRP, Hs-CRP, WBC, Neu#, Lym#=, Mon#, Eos#, Bas#, Neu%,
Lym%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT,
MPV, PDW, PCT, P-LCR, P-LCC

6 research parameters:

ALY#, ALY%, LIC#, LIC%, NRBC#, NRBC%

3 histograms for WBC, RBC and PLT

Three DIFF scattergrams and one BASO scattergram for WBC differential.

Sample mode:

Whole blood, capillary whole blood and pre-diluted modes

Sample volume:

20μL

Linearity range:

WBC: 0.00-500.00×109/L
RBC: 0.00-8.50×1012/L
HGB: 0-250g/L
PLT: 0-5000×109/L
HCT: 0.0-67.0%
CRP: 0.2-320 mg/L

Repeatability:

WBC≤2.5%(4.0-15.0×109/L)
RBC≤1.5%(3.5-6.0×1012/L)
HGB≤1%(110-180g/L)
MCV≤1%(70-120fL）
PLT≤6.0%(100-149×109/L)
≤4.0%(150-500×109/L)

Test mode:

CBC, CBC+DIFF, CRP, CBC+CRP, CBC+DIFF+CRP

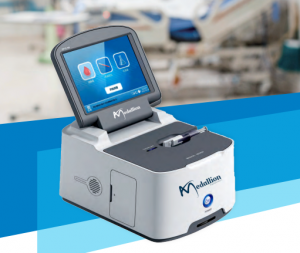

CALCULATION PARAMETERS:

Total 23 Parameters:

cH+, cH+(T), pH(T), pCO2(T), pO2(T), HCO3 std, HCO3 std, BB(B), BE(B),BE(ecf), ct CO2,
Ca++(7.4), AnGap, tHb(est), sO2(est), pO2(A-a), pO2(A-a)(T), pO2(a/A), pO2(a/A)(T), RI,
RI(T), pO2/FI O2, pO2(T)/FI O2

COMPONENTS:

Test Card:

Sample Type: Whole Blood
Sample Volume: 80ul
Reading Time: 30s
Suitable for Syringe and Capillary
Good correlation to reference method

Reagent Pack:

Stability and effectivity for 12 months
Shelf life: Up to 60 days after
installation

Quality control:

Internal electronic QC
External electronic simulated QC card
Three levels liquid quality control

MBD-A100

Product Description:

• Manual or electric control type for your choice.
• Made of high-strength fiber material and poly-layer paint, more durable, easy to clean;
• Designed with people-oriented idea, to meet the donor’s sense of security and comfort, to alleviate the psychological
  pressure, to ensure an easier and enjoyable process.
• Mattress using a high-quality medical polyurethane foam molding leather, easy for clean and maintenance,
  anti-static and anti-fouling properties superior to other similar products.

Technical Parameters:

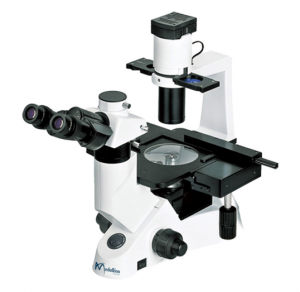

Inverted Microscope

M-100

Medallion Equipments

Technical Specifications:

Note: √ Standard Outfit, ●Optional
