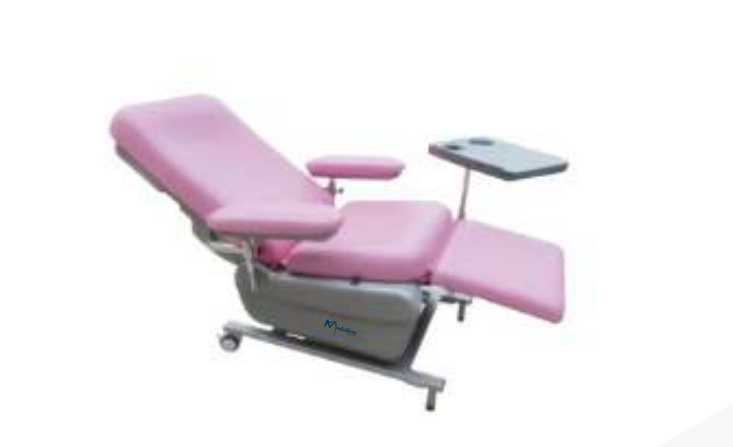

ELECTRIC BLOOD COLLECTION CHAIR MBD-A100
MBD-A100
Product Description:
- Manual or electric control type for your choice.
- Made of high-strength fiber material and poly-layer paint, more durable, easy to clean;
- Designed with people-oriented idea, to meet the donor’s sense of security and comfort, to alleviate the psychological
pressure, to ensure an easier and enjoyable process. - Mattress using a high-quality medical polyurethane foam molding leather, easy for clean and maintenance,
anti-static and anti-fouling properties superior to other similar products.
Technical Parameters:
| Model No | MBD-A100 |
| Seat section size(mm) | 1800× 580 |
| Seat secon height(mm) | 500 |
| Backing board turning angle | 20 ° -70 ° |
| Chair backward and forward lt angle | 8° -15 ° |
| Leg plate turning angle | 20 ° -75 ° |
| Handrail swing out angle | 0 ° -30 ° |
| Handrail’s moving distance | 100mm |
| Handrail board size | 450x160mm |
| Standard stroke | 150mm |
| Lifting speed | 3-25mm/s |
| Power supply | AC220V/110V ±10%, 50/60Hz |
| Reading lamp power | 60 W |
| Standard accessories | Hand operation, handrail rack, multi media support, small table |
| Optional accessories | LED hose-type reading lamp; movable assistant desk; so velvet cover |
| Load capacity(kg) | 160 |
| Packing size(W*D*H)mm | 1300×780×1250 |
| Gross Weight (kg) | 127 |
