WBC 3-part differential, 21 report parameters and 3 histograms
> 70 samples/hour
> Whole blood, micro-whole blood，pre-diluted blood
> 10.4 inch touch screen
> Storage capacity up to 500,000 samples, easy for users to manage and statistical analysis
> Optimize the liquid circuit reduce reagent consumption
> Build-in lyse position saving more space
> Multi-function USB extension to connect printer, scanner, mouse, data export, etc
> Bi-directional LIS, improve work efficiency and convenient data transfer

Technical Parameters:

Chemiluminescence Immunoassay Analyzer uses a modular design with a single module capable
of a throughput of up to 320 T/H. The modular design allows a combination of 1 to 4 modules
offering a maximum throughput of 1280T/H with each module capable of independent testing
without any interference between modules.
Avidin-Acridinium Ester Chemiluminescence Detection Platform
·Internationally recognized mainstream technology.
·High sensitivity, low reactant background with accurate test results.
·Higher stability for reagents with storage at 2-8 °C
Efficient Testing
·Sample Unit
·Basket loading type can easily handle large capacity loader
·620 sample positions, including 20 STAT positions
·Supporting random placement bi-directionally on sample rack for better convenience
Incubation Disk
·180 incubation positions, maintaining a constant temperature at 37°±0.3°C to maximally be close
to human body temperature.
·Time for the first result within 15 mins.
Track Unit
3 independent tracks allows the insusceptibility transportation of samples
Reagent Disk
·36 reagent positions, refrigerated at 2-8°C
·Continuous loading
·Non-contact mixing method
“Cuvette System:
·Unlimited loading of cuvettes with super large quantity of 1500 pcs loading at one time.
·Non-stop disorderly loading of reaction cuvettes.
·Non-stop loading and auto-diluting for washing buffer

Technical Parameters:

Chemiluminescence Immunoassay Analyzer uses a modular design with a single module capable
of a throughput of up to 320 T/H. The modular design allows a combination of 1 to 4 modules
offering a maximum throughput of 1280T/H with each module capable of independent testing
without any interference between modules.
Avidin-Acridinium Ester Chemiluminescence Detection Platform
·Internationally recognized mainstream technology.
·High sensitivity, low reactant background with accurate test results.
·Higher stability for reagents with storage at 2-8 °C
Efficient Testing
·Sample Unit
·Basket loading type can easily handle large capacity loader
·620 sample positions, including 20 STAT positions
·Supporting random placement bi-directionally on sample rack for better convenience
Incubation Disk
·180 incubation positions, maintaining a constant temperature at 37°±0.3°C to maximally be close
to human body temperature.
·Time for the first result within 15 mins.
Track Unit
3 independent tracks allows the insusceptibility transportation of samples
Reagent Disk
·36 reagent positions, refrigerated at 2-8°C
·Continuous loading
·Non-contact mixing method
“Cuvette System:
·Unlimited loading of cuvettes with super large quantity of 1500 pcs loading at one time.
·Non-stop disorderly loading of reaction cuvettes.
·Non-stop loading and auto-diluting for washing buffer

Technical Parameters:

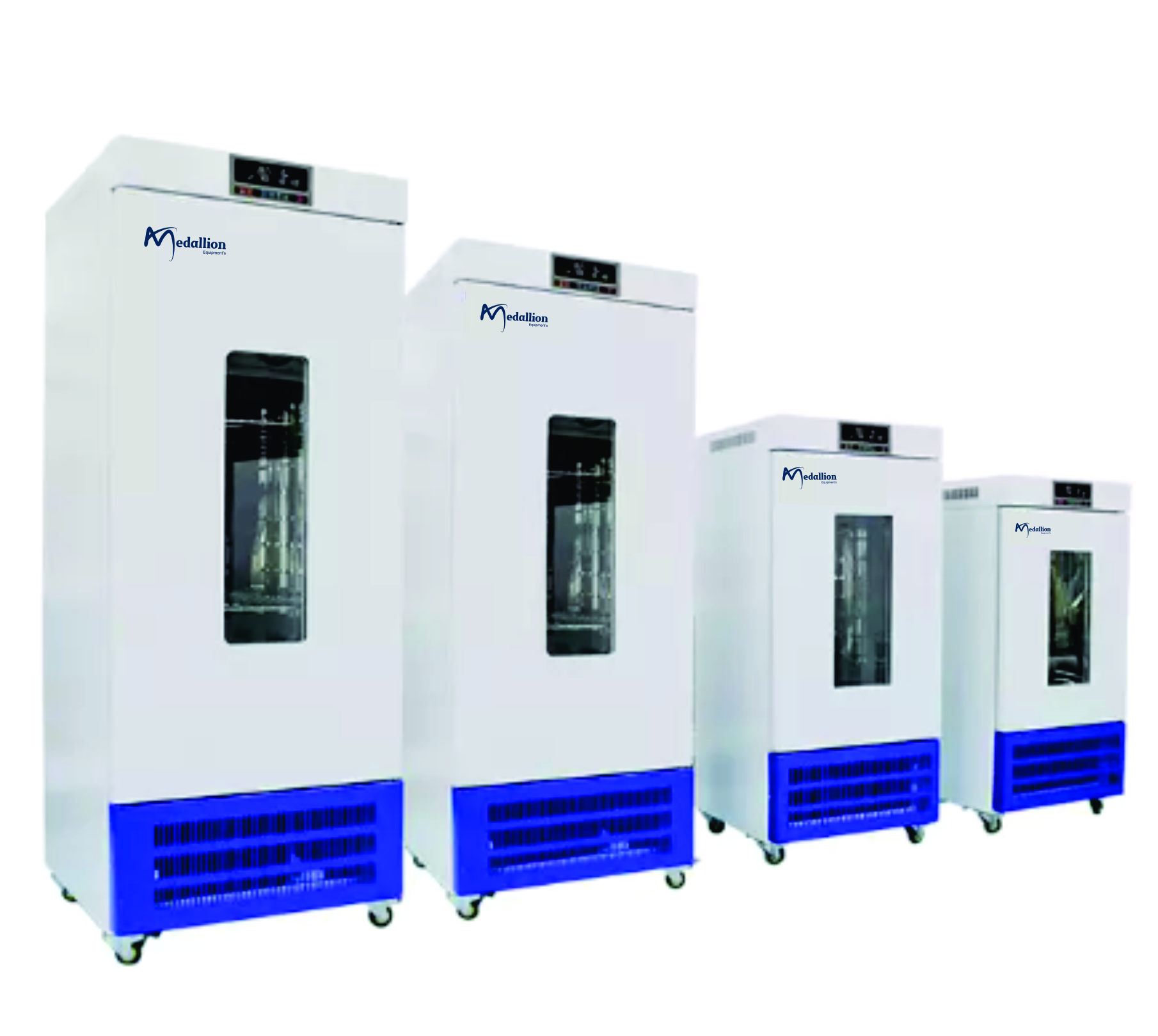

The constant temperature and humidity box has a precise temperature and humidity control system. It provides various environmental simulation conditions required for industrial research and biotechnology testing. Therefore, it can be widely used in sterile tests and stability inspections for pharmaceuticals, textiles, and food processing. As well as testing of raw material properties, product packaging, and product life of industrial products.

Features:

1. CFC-free refrigeration design, green and environmental protection.

2. With power-off parameter memory function

3. The arc angle design of the chamber is easy to clean.

4. Pullable movable shelves with adjustable spacing.

5. Equipped with casters, easy to move.

6. The fan generates micro air circulation to improve temperature uniformity.

7. Shell material: cold-rolled sprayed steel plate; internal material: SUS304 stainless steel.

8. Equipped with LED lamp.

9. Optional accessories:

Micro printer, can print temperature data.

USB interface, temperature data can be exported.

Automatic water supply system

Technical Parameters:

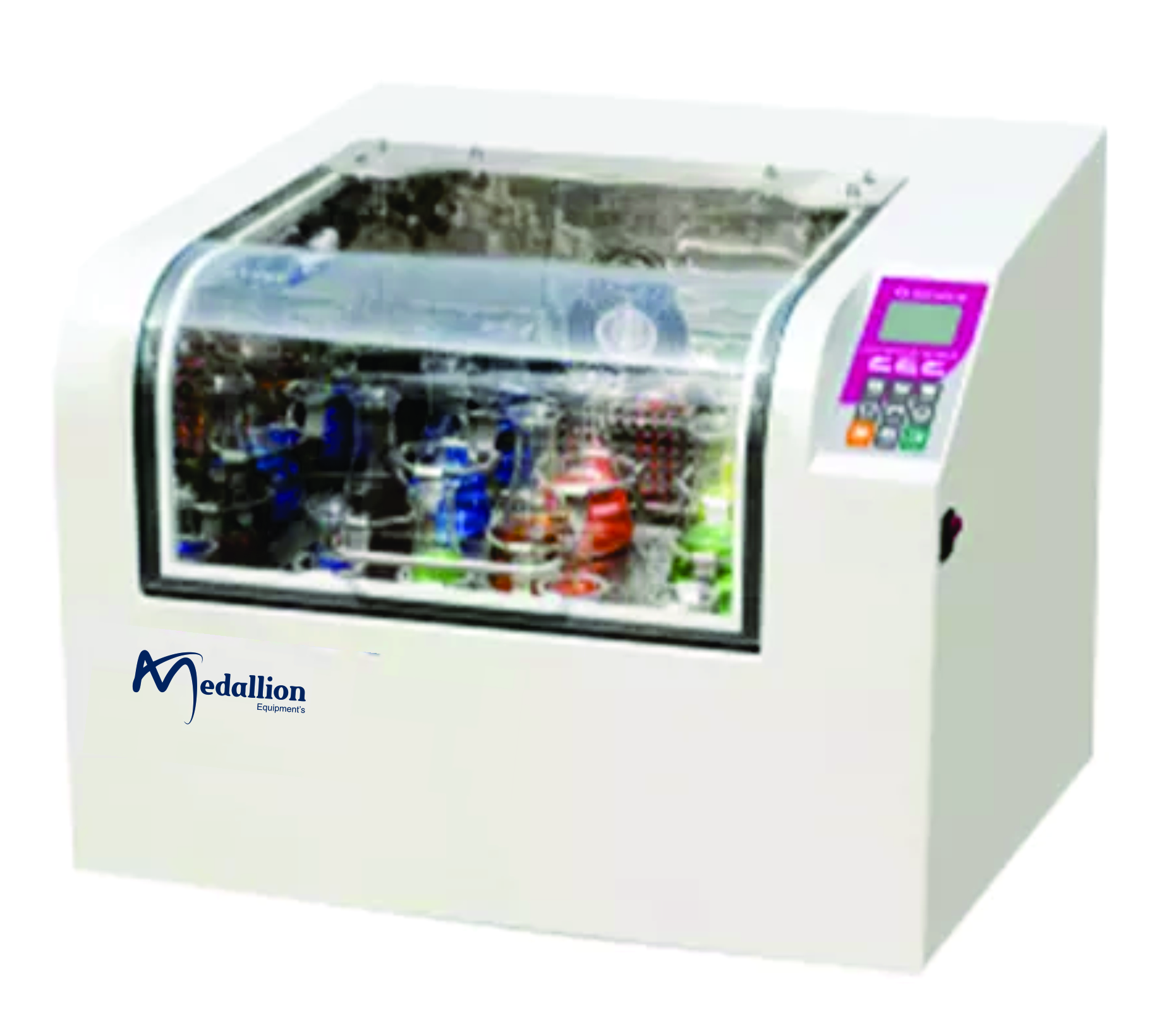

Features:

*High quality servo motor.

* Multi-steps rotate speed, temperature and time control systems.

*Slow accelerate and decelerate design.

*Advantaged air duct design.

*Automatic defrosting function.

* High-precision speed control.

*High-precision temperature control.

*Open door protection.

* LCD display with bright illumination.

* Memorized and protected operating parameters.

*Function of encrypted and locked operating parameters.

*Continuously running or timing.

* Unique slow-start design.

*Optional of illumination and UV light.

Technical Parameters:

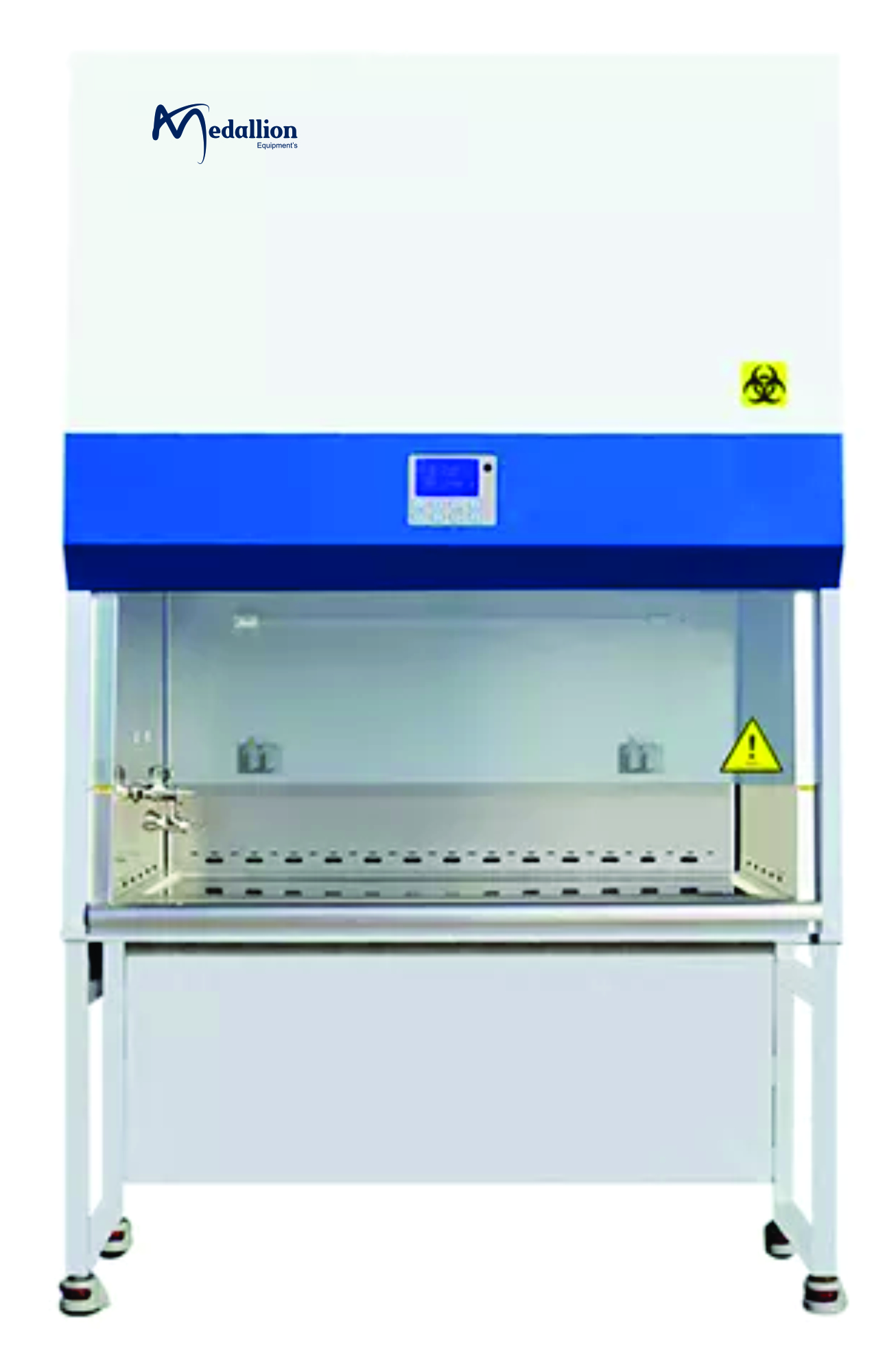

Advantages:

1. Motorized front window.

2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made up of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area

Technical Parameters:

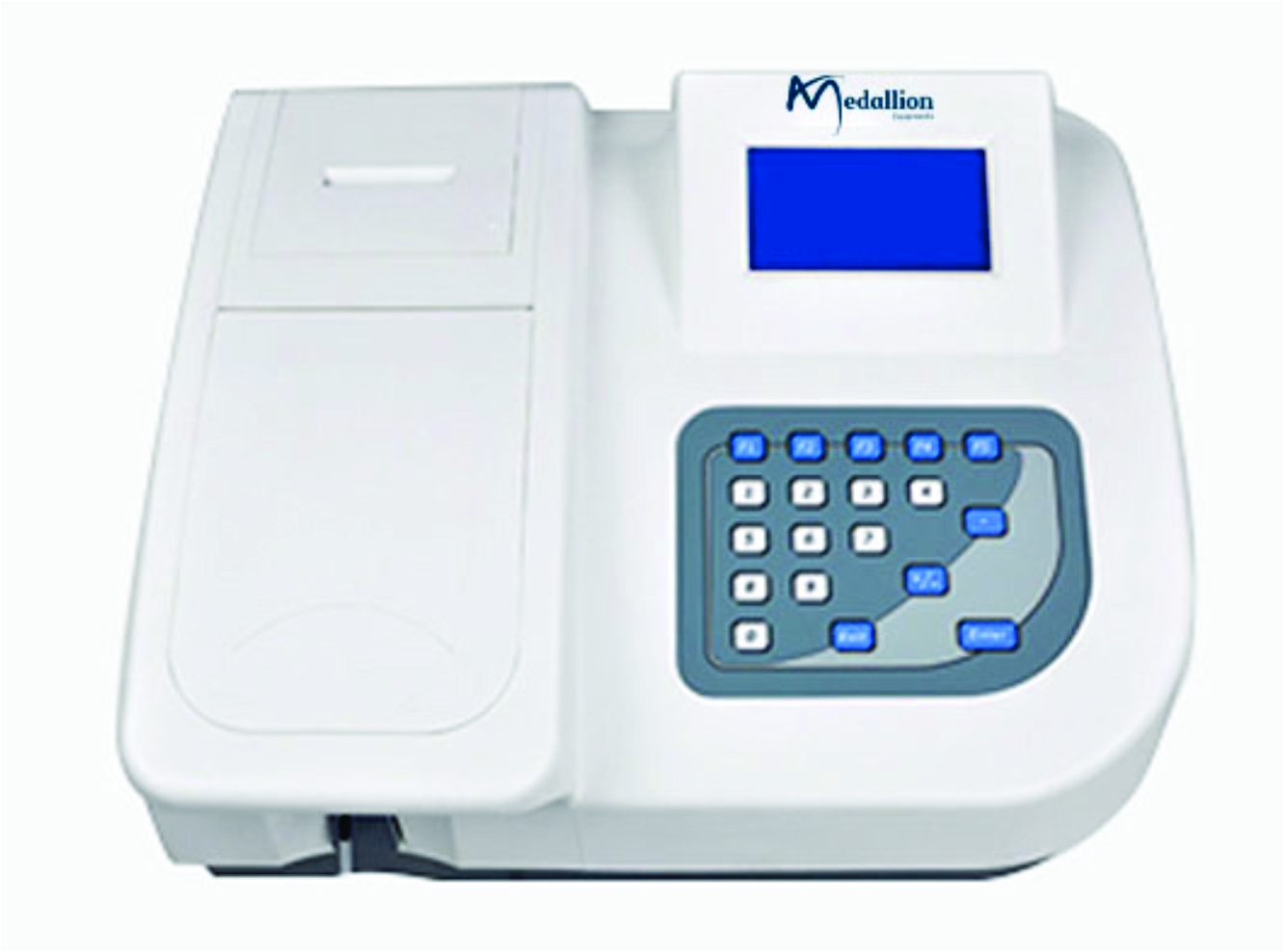

Features:

The optical system utilizes improved interface filters, featuring heat and moisture resistant, long service life, minimal center wavelength excursion, and single-noise ratio, etc. The main control system adopts industrial ARM and high precision Σ-AA/D transfer, with high measurement precision and reliability. Multilingual operation interface with real-time reaction curve display. Barcode reader connection is available and the flip open shell is more convenient for maintenance.

Wavelength:

340nm, 405nm, 450nm, 492nm, 505nm, 546nm, 578nm, 630nm

Testing range:

200 testing programs, open reagent system.

Temperature control:

25°C, 30°C, 37°C, (±0.5°C)

Methodology:

Kinetic, 2-point rate, end point, multi-standard, absorbance, measure and calibration for QC and QC graphic.

Display:

Large LCD display. Multilingual display. Legible display in poor light.

Output:

Built-in thermal printer, ready-to-use print out, QC result, data, test result and integrated report print out. External printer connection is available.

Interface:

RS-232 serial port and on-line CD.

Memory:

Built-in flash memory can save up to 200 test programs and 3000 results.

Ability to recover test results after accidental power-off.

Operating environment:

Power supply: 100-240VAC, 50Hz/60Hz Temperature: 15°C~30°C Relative Humidity: <75%RH

Dimension: 462mmx418mm×232mm Weight: 6.5kg

Specification:

Wavelength range: 8 wavelengths optional Wavelength Accuracy: ±2nm

Spectrum bandwidth: 6~12nm Absorbancy: -0.3-3.0 ABS Resolution: Display with 1m ABS, internal with 0.1m ABS

Linearity: less than 2% within 2ABS

Stability: 20 minutes for warm-up and then 2mABS/hour Measure repeatability: <2mABS

Measurement time: 0~999s programmable Delay time: 0~999s programmable

Memory: 200 testing programs, 3000 testing results

Sampling: 100~9999μl programmable Flowcell volume: 32μl

Cross-contamination: <1% Absorbancy repeatability: CV≤1% Display: 240×128 dot-matrix LCD Power consumption: 85W#

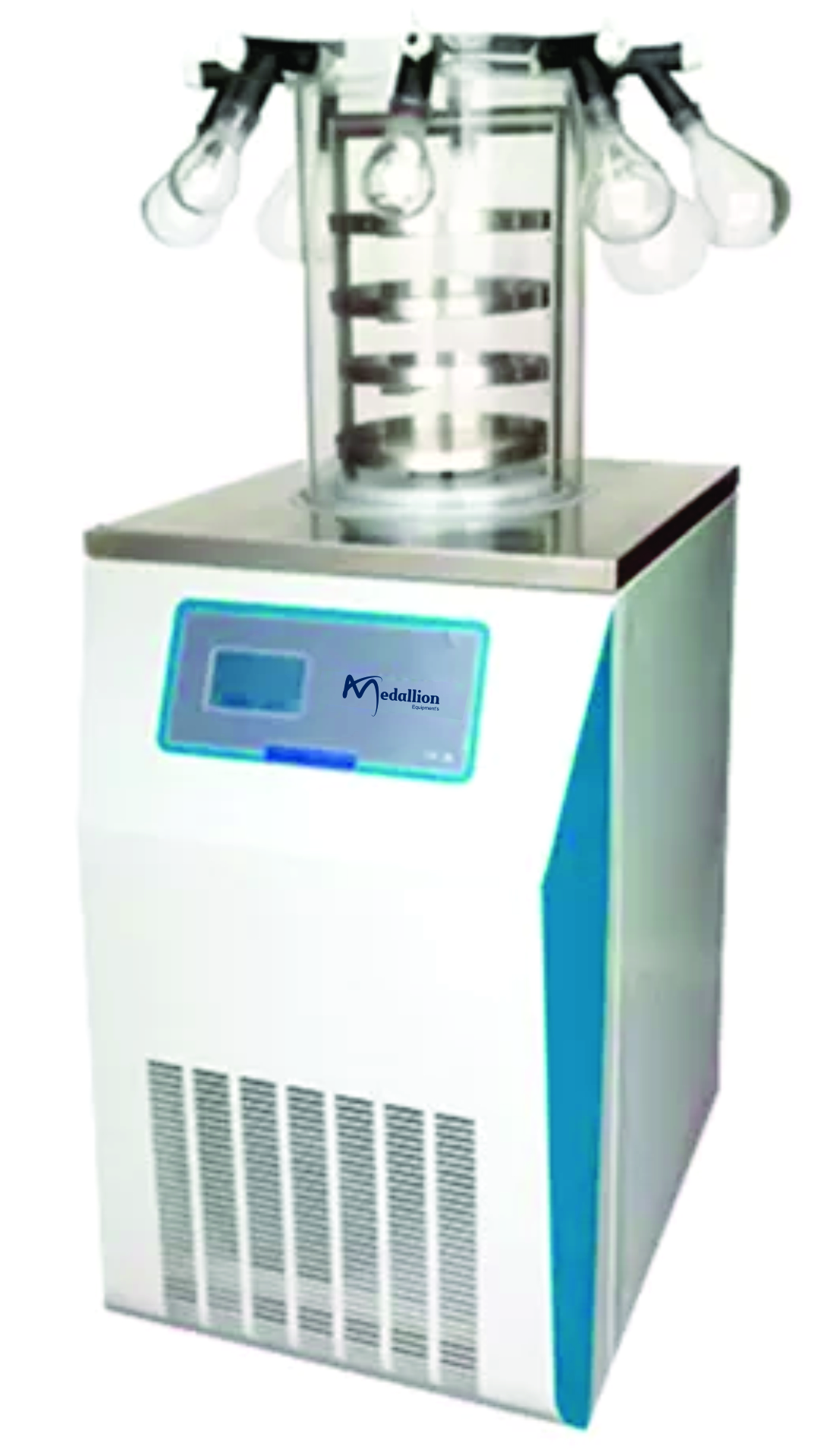

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.

Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

Technical Parameters:

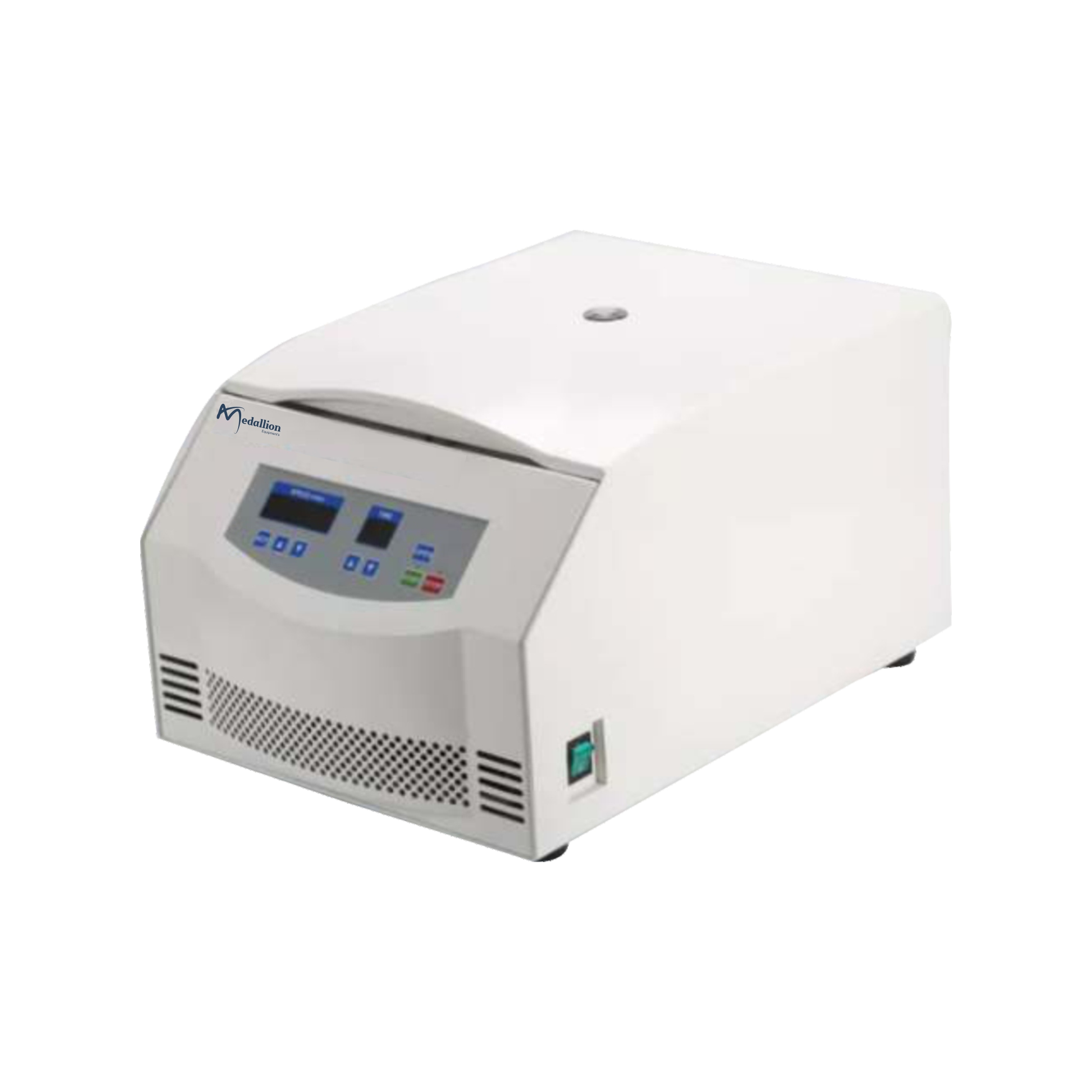

Features :
1. Brushless frequency motor
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The
centrifuge body is made of high quality steel, safe and reliable.
3. Rotor loading simple and quick, no direction, safe and reliable.
4. Microprocessor control.
5. Digital display in time, speed and RCF.
6. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
7. 3 tiers protection steel cover, stainless steel chamber, safe and reliable.
8. Touch screen and LCD screen also available.

Technical Parameters:
