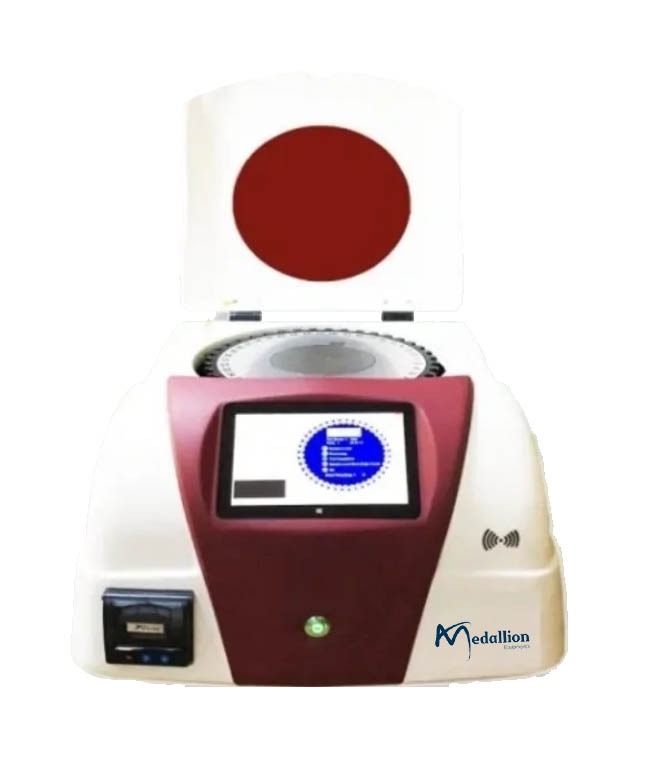

MAB-140
Automated ESR Analyzer
MAB-140
Automated ESR Analyzer is a benchtop system which has complete integration in the hematology laboratories by the direct determination of ESR from blood/EDTA samples with its smart and innovative technology combining “ccd cam” and internationally accepted Westergren method.
Automated ESR Analyzer is completely cost effective, provides patient comfort and environment friendly since it is using same EDTA tubes coming from CBC tests.
40 sample loading positions, suitability to continuous loading for 23 minutes when you start running the instrument, being maintenances free, being environment-friendly, LCD touch screen and data transmission to LIS are just some of the advanced features of the analyzer which provides laboratory confort and productivity.
General Properties:
Use of the same CBC tubes. No dedicated citrate tube needed
- Westergren method by CCD camera
- Use of smart cards
- No reagents required, environmentally friendly
- 40 sample loading positions, up to120 tests/ hour
- Continuous loading of samples until the first result
- First result available after 24 minutes and each following result within 5 sec.
- 10-inch LCD touch screen
- User friendly software
- Built-in thermal Printer (optional external printer)
- LIS connection
- Optional Barcode reader
- Simultaneously or in random access mode
- Random access mode
- Printed results
- Digital Display
| Principles Westergren method by CCD Camera |
Barcode Reader External (optional) |
| Sample Loading Positions 40, Direct loading of Blood/EDTA Samples |
Internal Printer Yes |
| Throughput Up to120 samples/hour |
Throughput
Up to120 samples/hour |
| Time to First Result First result in 24 minutes |
Display Liquid Touch Screen, 800×600 pixel |
| Time to Result 5 seconds |
Operating Environment Temperature:15°C-35°C, Humidity: <80% |
| Minimum Sample Volume 2 ml |
Power Requirement A.C. 110-230V <=300 VA 50/60Hz |
| Sample Test Volume 2 ml-3 ml |
Dimension 690mm(L) x425mm(W) x 315mm(H) |
| Weight 28 KG |
