MV-M70

Ventilator

MV-M70

ICU VENTILLATOR:

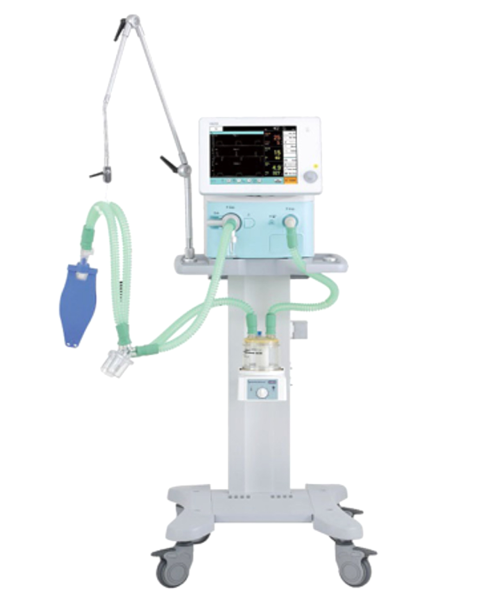

• MV–M70 is a critical care ventilator suitable for intra–hospital transport and sub–acute care of infants, children and adults. It combines the advantages of a flexible noninvasive ventilator with a full–featured invasive ventilator.
• Microprocessor controlled powerful ventilation system mounted on trolley or pendant. In case of pendant mounted, trolley is also required for compressor placement.
• It has comprehensive functionality and a user– friendly design. MV–M70’s internal turbine provides needed air pressure with a low sound level and, along with its internal batteries, prepare it fully for mobile use.
• Microprocessor controlled powerful ventilation system mounted on trolley or pendant. In case of pendant mounted, trolley is also required for compressor placement.
• Colortouchscreenl5’,MinimumLCDorTFTorbetter.
• PatientRange:AdultandPediatrics.
• Breathing classification: Pressure control, Volume control Pressure control with set Volume Breath.

Patient Type

• Adult, Child (>3 Kg)
• Tidal volume (Vt) 50–2000 mL (Adult) 20–300 mL (Child)

MODESOFVENTILATION:

• Volume control.
• Assisted CMV.
• Pressure control PC.
• Assist Pressure Control.
• CPAP.
• SIMV with VC.
• SIMV with PC.
• Pressure support.
• Bi–PAP ventilation.• APRV or equivalent
• Non invasive ventilation(NIV) with PC, SIMV and PS.
• Highflow02Therapy.

Monitoring parameters for set and measured values imultaneously:

• Backup ventilation.
• Microprocessor gas delivery system.
• Breath circuit Compliance Compensation.
• Expiratory hold or Inspiratory hold.
• Pressure or Volume or flow trigger sensitivity.
• Spon Triggered breaths should be indicating in pressure or volume curve.
• Trend Data of 72hoursormore.
• Total breath rate.
• Oxygen concentration Fi02(Through Paramagnetic Ensor technology or Non consumable sensor).
• Expired minute volume.
• Peak Pressure.
• Mean pressure.
• Lung Mechanics with pressure and volume loops.
