M23C-MII

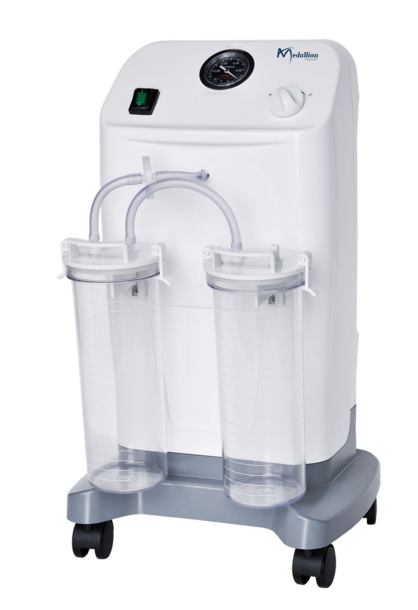

Suction Machine

M23C-MII

Features

  1. Imported diaphragm pump oil free pump mechanism.
  2. Low noise and maintenancefree
  3. All ABS plastic shell
  4. Bottle is easy for cleaning and disinfection
  5. With overflow protection unit to prevent liquid from getting into pump body
  6. Used for operations and wards for taking out puts, blood, sputum and other thick liquid from human body.
  7. Vacuum continuously adjustable
  8. Triple or over flow safety device.
  9. Change over valve
  10. Suction tubing of silicone with coupling connection for each jar
  11. Piston or Diaphragm type with Heavy duty Mobile Suction Unit with twin jars (Polysulfide or Polycarbonate type) of capacity up to 4 or 5 liter each, Autoclavable.

Technical Specifications:

PARAMETER SPECIFICATION
Power Voltage AC 220V±10%, 50Hz±2%
Aspiration rates 40-60 liters/minutes at 640-900mm
Suction Rate >40L/min
Negative Pressure Range 0.013-0.09Mpa (680mmHg)
Suction Bottle 2000mlx2 (plastic bottle)
Input Power 400VA
Noise <50dB

Accessories

  • 100 x Hydrophobic/bacterial filter
    Trolley with lockable wheels.
