Features:
Vacuum installation panel, data logger & vacuum release port
Technical Parameters:

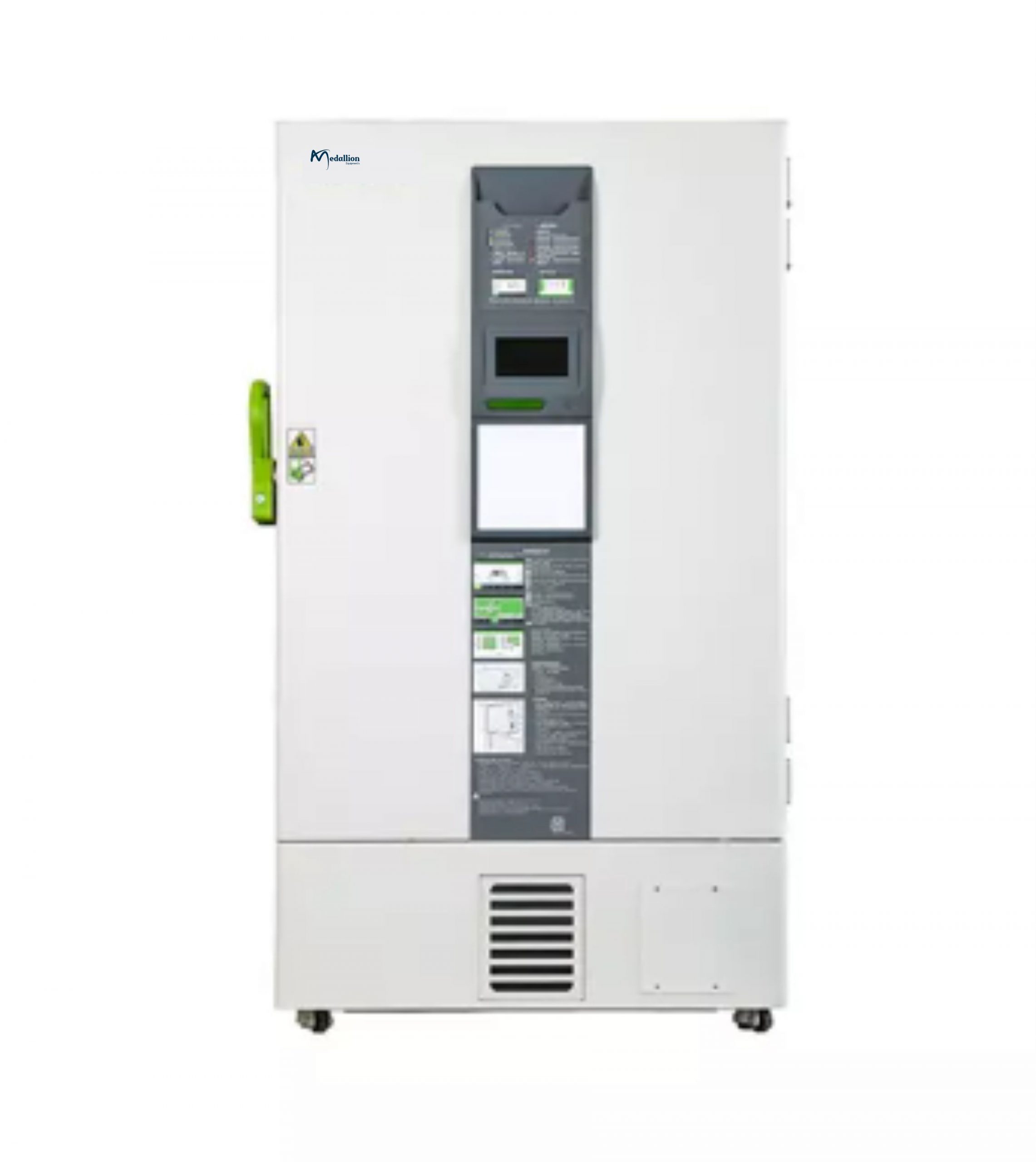

| Model No. | MUF-D30 |
| External Size(W*D*H) mm | 1260*890″2010 |
| Internal Size(W*D*H) mm | 963*558*1350 |
| Capacity | 728L |
| Type | Vertical |
| Temp. Range | -40℃~-86℃ |
| Temp. Accuracy | 0.1℃ |
| Control System | Microprocessor control, LCD touch screen |
| Audible and Visual Alarm | High and low temperature, Sensor failure, Door ajar, Power failure, Voltage abnormal |
| Refrigeration type | Ambient temperature abnormal, Low voltage Filter blocking, Direct refrigeration |
| Refrigerant | R290 and R170 |
| Compressor | 2 sets |
| Condenser & Evaporator | Made of copper. |
| Construction Structure | 100mm ultra-thick foam layer |
| internal Material | ss 304 |
| External Material | Sprayed steel plate. |
| Door | Lockable door |
| Caster | 4casters |
| Chamber with Inner Door | 2 |
| Shelf | 3 pcs |
| Temp.Test Port | 1, φ25mm |
| Consumption | 935w |
| Power Supply | AC110V/220V+10%，50/60Hz |
| Standard Accessory | 72 hours battery backup for power failure alarm, USB port |
| Max.Optional Storage Racks | 24*LD5×4 |
| Max. Optional Boxes | 480 |
| Package Size (W’D’H) mm | 1320*970*2190 |
| Gross Weight | 401.5kg |
