MPR-E30

Laboratory Refrigerator

MPR-E30

Medallion Equipments UK



Technical Parameters:

Model MPR-E30
Capacity 1500L
Temp. Range 2~8℃
Temp. Accuracy 0.1℃
Temp. Uniformity ≤3℃
Temp. Stability ±3℃
Recovery Time(Recover to 8℃ in an ambient temp. of 32℃) 8min
Cooling Time(Cool down to 6℃ in an ambient temp. of 32℃) 30min
Control System Microprocessor control
Display LED
Alarm High and low temperature alarm, sensor failure alarm, power failure alarm, opening and closing abnormal alarm
Refrigeration Type Air-cooling
Refrigerant R134a/620g
Compressor International famous brand compressor/1
Condenser&Evaporator Copper tube aluminum plate
Defrost Automatic defrost
Construction Polyurethane cyclopentane insulation material
Material Internal Material Spraying steel plate
External Material Spraying steel plate
Door Electrically heated glass door*3
Consumption 537W
Power Supply AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Casters Yes
Shelf 12
Standard Accessory /
Optional Accessory Test hole, USB interface, RS485, printer, temperature recorder
Internal Size(W*D*H) 1680*640*1420mm
External Size(W*D*H) 1800*775*1965mm
Package Size(W*D*H) 1940*880*2035mm
Net Weight 245kg
Gross Weight 280kg
Read more

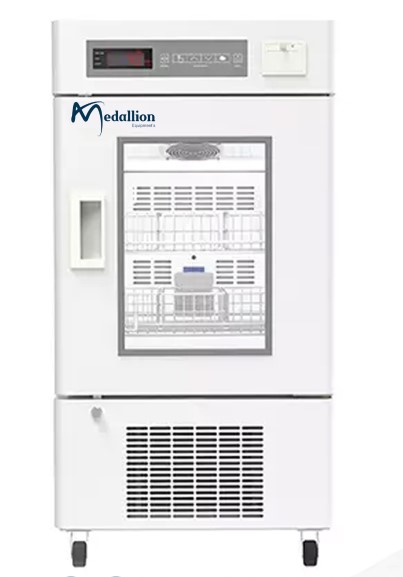

MBR-A14

Blood Bank Refrigerator

MBR-A14

Medallion Equipments UK

Features:

  1. Multiple sensors design: make sure the precise monitoring and programming.
  2. Unibody Design, Mono-assembly foaming (Rigid polyurethane insulation material).
  3. Forced air refrigeration system, ensure inner temperature constant and uniform, with interior lighting.
  4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
  5. Individual transparent inner door, effectively reduce cool air loss when opening the door.

Technical Parameters:

Model MBR-A14
Capacity 136L
Temp. Range 4±2℃
Temp. Accuracy 0.1’℃
Blood Bag Capacity 120 bags (450ml)
Control System Microprocessor control
Display LED display
Alarm Audio and visual alarm for: High or low temperature, Sensor & system failure, Door ajar, Power failure
Refrigeration Type Forced air refrigeration system
Refrigerant R134a, CFC-Free
Compressor International famous compressor
Condenser & Evaporator High efficiency air-cooled condenser; Made of copper
Defrost Frost less design
Construction Uni body Design, Mono-assembly foaming (Rigid polyurethane insulation material)
Material Internal Material Stainless steel
External Material Sprayed steel plate
Door Electric heated glass semi-foamed door with lock; Acrylic inner door
Consumption 252W/264VA
Power Supply Standard: AC220V±10%, 50Hz

Optional: AC110/220V, 60Hz
Casters Two universal casters with brakes, two directional casters
Adjustable Shelves 4pcs
Baskets 12pcs
Blood Bags(450ml) 132pcs (450ml)
Standard Accessory Thermal printer, LED lamp, The temperature test box, probe access port, door key
Optional Accessory Temperature recorder, USB port, RS485, Increase shelves number
External Size(W*D*H) mm 530*660*1287
Package Size(W*D*H) mm 685*750*1560
Gross Weight(kg) 120
Read more

MPR-E20

MPR-E20

Storage Cabinet

Technical Parameters:

Model MPR-E20
Capacity 628L
Temp. Range 2~8℃
Temp. Accuracy 0.1℃
Temp. Uniformity ≤2℃
Temp. Stability ≤3℃
Recovery Time(Recover to 8℃ in an ambient temp. of 32℃) ≤15min
Cooling Time(Cool down to 6℃ in an ambient temp. of 32℃) ≤100min
Control System Microprocessor control
Display LED
Alarm High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h)
Refrigeration Type Air-cooling
Refrigerant R290/150g
Compressor International famous brand compressor/1
Condenser&Evaporator Copper tube aluminum fin type
Defrost Automatic defrost
Construction Polyurethane cyclopentane insulation material
Material Internal Material Spraying steel plate
External Material Spraying steel plate
Door Electrically heated glass door*2
Consumption 300W
Power Supply AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
Casters Yes
Shelf 10
Standard Accessory Test hole, USB interface
Optional Accessory RS485, printer, temperature recorder
Internal Size(W*D*H) 1100*454*1325mm
External Size(W*D*H) 1220*630*1885mm
Package Size(W*D*H) 1340*750*2100mm
Net Weight 189kg
Gross Weight 223kg
Read more

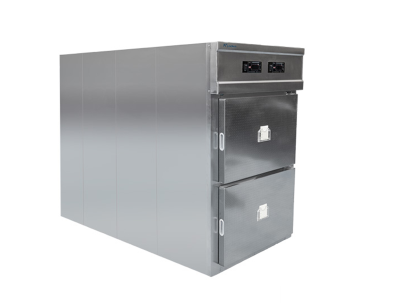

MKX-G2

Mortuary refrigerator (02 Body)

MKX-G2

Features:

  1. Anti-vibration and anti-overturn compressor.
  2. Intelligent control system.
  3. All stainless steel.
  4. Polyurethane overall high pressure and high temperature foaming.
  5. The refrigeration system of each chamber can be controlled individually.
  6. Corpse tray can move freely with small roller wheels.

Technical Parameters:

Model MKX-G2
Interior Size 2060*640*440mm, 2pcs
Lowest Temp. -30℃
Accuracy 0.1℃
Slide Enlarged 100mm thickness load-bearing frame
Stretcher Made of all stainless steel (strong corrosion resistance)
Evaporator Direct-cooled evaporator with built-in copper coil, no solder joints inside
Condenser Air-cooled condenser, silent cooling fan
Insulation Polyurethane overall high-pressure and high temperature foaming (thickness about 100mm)
Power Supply Standard: 220V, 50/60Hz; Optional: 110V, 60Hz
Power 850W
Packing Size 2300*950*1700mm
Gross Weight

400kg
Read more

MBR-A46

MBR-A46

Blood Cabinet



Features:

  1. Multiple sensors design: make sure the precise monitoring and programming.
  2. Unibody design, mono-assembly foaming(Rigid polyurethane insulation material).
  3. Forced air refrigeration system, ensure inner temperature constant and uniform.
  4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
  5. Individual transparent inner door, effectively reduce cool air loss when opening the door.



Technical Parameters:

Model MBR-A46
Capacity 466L
Temp. Range 2~6℃
Temp. Accuracy 0.1℃
Temp. Uniformity ≤1.5℃
Temp. Stability ≤2℃
Blood Bag Capacity Up to 125 bags of 450 ml
Recovery Time(Recover to 6℃ in an ambient temp. of 32℃) ≤15min
Cooling Time(Cool down to 5℃ in an ambient temp. of 32℃) ≤70min
Control System Microprocessor control
Display LED display
Alarm High and low temperature, sensor&system failure alarm, door ajar alarm, power failure alarm, battery switch alarm
Refrigeration Type Air-cooling
Refrigerant R134a/200g
Compressor International famous compressor/1
Condenser&Evaporator Copper tube aluminum fin type
Defrost Automatic defrost
Construction Polyurethane cyclopentane foam
Material Internal Material Stainless steel
External Material Sprayed steel plate
Door Outer door: electrically heated glass semi-foam door*1

Inner door: acrylic door*3
Consumption 506W
Power Supply AC220V, 50Hz(Standard); AC220V, 60Hz; 110V, 60Hz(Optional, external transformer)
Casters Yes
Shelf 5pcs
Basket 20pcs
Blood Bag(450ml) 300pcs
Standard Accessory Thermal printer, test hole
Optional Accessory Temperature recorder, USB interface, RS485 interface
Internal Size(W*D*H) 580*613*1325mm
External Size(W*D*H) 680*747*1886mm
Package Size(W*D*H) 820*910*2080mm
Net Weight 165kg
Gross Weight 199kg
Read more

MKX-G1

Mortuary Refrigerator

MKX-G1

Medallion Equipments UK

Features:

*Anti-vibration and anti-overturn compressor.

*Intelligent control system.

*All stainless steel.

*Polyurethane overall high pressure and high temperature foaming.

*The refrigeration system of each chamber can be controlled individually.

*Corpse tray can move freely with small roller wheels.



Technical Parameters:

Model MKX-G1
Interior Size 2060*600*420mm
Capacity 1 body
Lowest Temp. -30°C
Accuracy 0.1°C
Slide Enlarged 100mm thickness load-bearing frame
Stretcher Made of all stainless steel (strong corrosion resistance)
Evaporator Direct-cooled evaporator with built-in copper coil, no solder joints inside
Condenser Air-cooled condenser, silent cooling fan
Insulation Polyurethane overall high-pressure and high temperature foaming (thickness about 100mm)
Power Supply Standard: 220V, 50/60Hz; Optional: 110V, 60Hz
Power 850W
Packing Size 2700*800*700mm
Gross Weight 200kg
Read more

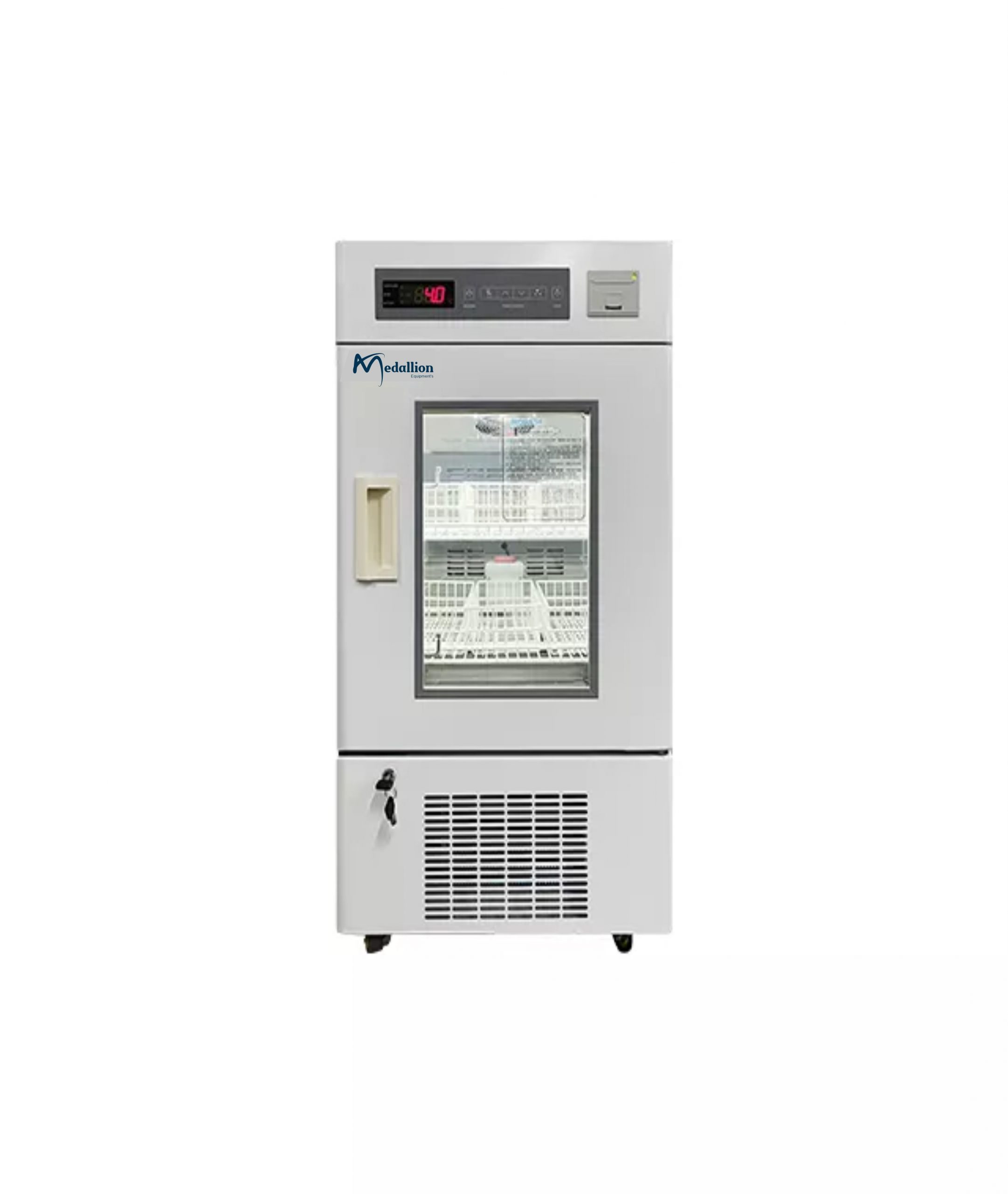

MBR-A13

Refrigerator for Blood Storage

MBR-A13

Features:

  • Multiple sensors design: make sure the precise monitoring and programming.
  • Unibody design, mono-assembly foaming (Rigid polyurethane insulation material).
  • Forced air refrigeration system, ensure inner temperature constant and uniform.
  • Adjustable shelves, improve space utilization; blood storage baskets can be classified.
  • Individual transparent inner door, effectively reduce cool air loss when opening the door.
  • Automatic door closing with safety door lock
  • Controlled fan cooling for uniform temperature distribution
  • Key/password-operated power switch for security
  • Interior lighting for visibility
  • Power Supply: 220V AC, 50Hz



User Settings & Capacity:

  • Net Capacity: 50–80 blood bags (450 ml)
  • Fixed Temperature Set Point: +4°C
  • Ambient Operating Temperature: Up to +25°C
  • Safety Thermostat for temperature protection



Display & Monitoring:

  • Touch screen or digital temperature display
  • Continuous temperature recording and online monitoring
  • Acoustic and visual alarms for temperature deviations and power failure
  • Battery-backed alarm system
  • Door-open alarm





Technical Parameters:

Model MBR-A13
Capacity 86L
Temp. Range 2~6℃
Temp. Accuracy 0.1℃
Temp. Uniformity ≤1.5℃
Temp. Stability ≤2℃
Recovery Time (Recover to 6℃ in an ambient temp. of 32℃) ≤15min
Cooling Time (Cool down to 5℃ in an ambient temp. of 32℃) ≤55min
Control System Microprocessor control
Display LED display
Alarm High and low temperature, sensor & system failure alarm, door ajar alarm, power failure alarm, battery switch alarm
Refrigeration Type Air-cooling
Refrigerant R134a/115g
Compressor International famous compressor/1
Condenser & Evaporator Copper tube aluminum fin type
Defrost Automatic defrost
Construction Polyurethane cyclopentane foam
Material Internal Material Stainless steel
External Material Sprayed steel plate
Door Outer door: electrically heated glass semi-foam door*1

Inner door: acrylic door*2
Consumption 245W
Power Supply AC220V, 50Hz(Standard);

AC220V, 60Hz; 110V, 60Hz(Optional, external transformer)
Casters Yes
Shelf 2pcs
Basket 6pcs
Blood Bag(450ml) 66pcs
Standard Accessory Thermal printer, test hole
Optional Accessory Temperature recorder, USB interface, RS485 interface
Internal Size(W*D*H) 430*459*495mm
External Size(W*D*H) 530*660*1037mm
Package Size(W*D*H) 680*740*1330mm
Net Weight 74kg
Gross Weight 103kg
Read more
