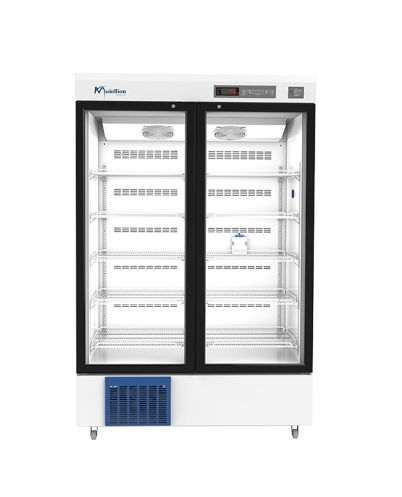

MPR-E20
MPR-E20
Storage Cabinet
Technical Parameters:
| Model | MPR-E20 | |
| Capacity | 628L | |
| Temp. Range | 2~8℃ | |
| Temp. Accuracy | 0.1℃ | |
| Temp. Uniformity | ≤2℃ | |
| Temp. Stability | ≤3℃ | |
| Recovery Time(Recover to 8℃ in an ambient temp. of 32℃) | ≤15min | |
| Cooling Time(Cool down to 6℃ in an ambient temp. of 32℃) | ≤100min | |
| Control System | Microprocessor control | |
| Display | LED | |
| Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h) | |
| Refrigeration Type | Air-cooling | |
| Refrigerant | R290/150g | |
| Compressor | International famous brand compressor/1 | |
| Condenser&Evaporator | Copper tube aluminum fin type | |
| Defrost | Automatic defrost | |
| Construction | Polyurethane cyclopentane insulation material | |
| Material | Internal Material | Spraying steel plate |
| External Material | Spraying steel plate | |
| Door | Electrically heated glass door*2 | |
| Consumption | 300W | |
| Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | |
| Casters | Yes | |
| Shelf | 10 | |
| Standard Accessory | Test hole, USB interface | |
| Optional Accessory | RS485, printer, temperature recorder | |
| Internal Size(W*D*H) | 1100*454*1325mm | |
| External Size(W*D*H) | 1220*630*1885mm | |
| Package Size(W*D*H) | 1340*750*2100mm | |
| Net Weight | 189kg | |
| Gross Weight | 223kg | |
