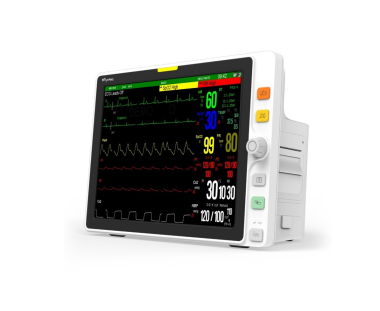

MPM-12L (Cardiac Monitor Wall Mounted)

Cardiac Monitor Wall Mounted

MPM-12L

Features

• The monitor adopts Ergonomic design and a compact structure to meet the needs of various parameter detections. It is suitable for adults, children, and newborns.
• Standard parameters: SpO2, 3/5 leads ECG, PR, HR, RESP, NIBP, 2*TEMP.
• Optional parameters: EtCO2, 12 leads ECG, 2*IBP.
• 12 inch color LCD screen with optional touch screen and rotator knob.
• Capable to visualize 6 or more waveform. Support color coding for different waveform.
• 28 ST segment analysis with ST trend with continuous display of ST value on screen.
• Multiple screen layout to view big font size in numeric and waveform.
• Trending facilities for up to 360 hours of both graphical & numerical along with event review facility for all parameters and full waveform disclosure facility.
• Different visual alarm with color coding and audible alarms for various parameters with three levels of volume adjustment.
• Support HL7 protocol to access the central monitoring system, low-power design, extending battery life Configure, fanless design to ensure a quieter and cleaner environment Arrhythmia detection and analysis in various leads.
• Standard application: 5-leads ECG, NIBP, SpO2, RESP, TEMP, PR/HR
• Optional application: Touch screen, IBP, EtCO2 (mainstream/sidestream), 12-lead ECG, recorder, CMS
• Large font, dynamic short trend display interface, calculation of hemodynamics and cardiac output.



Specifications

Display

Size: 12 inches Color TFT LCD

Resolution: 1024*768 pixels



ECG

3-lead: I, II, III

5-lead: I, II, III, aVR, aVL, aVF, V

ECG Range: 0~100%

ECG Resolution: 2.36uV/LSB

HR Range: 15~300bpm(adult), 15~250bpm(pediatric/neonate)

HR Accuracy: ±1 bpm or ±1%, whichever is greater.

RR Range: 0~120bpm

RR Accuracy: 15~120rpm: ±2rpm or ±2% <15rpm: Undefined

Sweep speed: 6.25 mm/s, 12.5mm/s, 25mm/s, 50mm/s, less than ±5% error

Display sensitivity: 2.5 mm/mV (X0.25), 5 mm/mV (X0.5), 10 mm/mV (X1), 20 mm/mV (X2), 40 mm/mV (X4), Auto, less than ±5% error



SPO2

SPO2 Measurement Range: 0~100%

SPO2 Accuracy: 70 to 100%: ±2% (adult/pediatric, without motion)

70 to 100%: ±3% (neonate, without motion)

0 to 69%: Not specified.

PI Range: 0~20%

PR Range: 25-250bpm

PR Accuracy: ±2bpm or ±2% (whichever is greater)



TEMP

Technique: Thermal resistance

Measurement Range: 0~50.0℃

Accuracy: ±0.2°C

Resolution: 0.1°C

Refresh Rate: 1s

Alarm limit range: Temp High: (low limit +0.1℃) ~ 50.0℃

Temp Low: 0℃ ~ (high limit -0.1℃)



NIBP

Measure method: Automatic oscillation method

Pressure Range: 0~300mmHg (0~40kPa)

Pressure Accuracy: ±2mmHg or ±1% of reading (whichever is greater)

Resolution: 1mmHg or 0.1kPa

SYS Range: Adult: 40-270mmHg

Pediatric: 40-200mmHg

Neonate: 40-130mmHg

DIA Range: Adult: 10-210mmHg

Pediatric: 10-162mmHg

Neonate: 10-90mmHg

Mean Range: Adult: 20-230mmHg

Pediatric: 20-170mmHg

Neonate: 20-100mmHg

Accuracy: mean deviation<±5mmHg, standard deviation<8mmHg

Work pattern: manual, automatic, continuous measurement

Automatic mode measurement interval: 1min/ 2min/ 3min/ 4min/ 5min/ 10min/ 15min/ 30min/ 60min/ 90min/ 2h/ 3h

Continuous mode measurement time: 5 min

Maximum single measurement time: 180s



Respiration

Technique: Trans-thoracic impedance

Lead: Options are lead I and II

Respiration excitation waveform: ＜300µA RMS, 62.8kHz (±0%)

Respiration impedance range: 0.3~5Ω

Baseline impedance range: 200~2500Ω (using an ECG cable with 1kΩ resistance)

Bandwidth: 0.2~2Hz (-3 dB)

Sweep speed: 6.25 mm/s, 12.5mm/s, 25mm/s, 50mm/s



PR

Measurement range: 25bpm~250bpm

Resolution: 1bpm

Alarm limit: PR High: (PR Low limit +1bpm) ~ 300bpm

PR Low: 15bpm ~ (PR High limit -1bpm)



HR

Measurement range: 15~300bpm (adult）

15~350bpm (pediatric/neonate）

Resolution: 1bpm

Accuracy: ±1 bpm or ±1%, whichever is greater

Sensitivity: 0.2mV



Data Storage

Trends: A minimum of 120 hours trend data with the resolution no less than 1 minute

Events: 200 events

NIBP measurements: 200 events

Interpretation of resting 12-lead ECG results: 20 sets



IBP (Optional)

Number of channels: 2

Pressure Range: -50~350mmHg (-6.7~40.0kPa)

Accuracy: ±2% or ±1 mmHg, whichever is greater (excluding sensor error)

Resolution: 1 mmHg (0.1kPa)

Refresh Rate: 1s

Sensitivity: 5μV/V/mmHg

Zero adjustment range: ±200 mmHg

Impedance range: 300~3000Ω

Volume displacement: ＜0.04mm³/100mmHg



EtCO2 (Optional)

Measurement mode: Sidestream, Mainstream

Technique: Infrared absorption

Zero RR delay: 20s, 25s, 30s, 35s, 40s, 45s, 50s, 55s, 60s

CO2 Range: 0~20.0 vol%

CO2 Accuracy: 0~12 vol%: ± (0.2 vol%+2% of readings)

12~20 vol%: ± (0.2 vol%+6% of readings)

AwRR Measurement Range: 0~150rpm

Resolution: 1 rpm

AwRR Accuracy: Mainstream: 0~150rpm, ±1rpm

Sidestream: 0~69rpm, ±1rpm; 70~150rpm, Undefined

Alarm limit: EtCO2 High: (EtCO2 Low limit +1mmHg) ~ 150mmHg

EtCO2 Low: 0 ~ (EtCO2 High limit -1mmHg)

FiCO2 High: 0 ~ 150mmHg

AwRR High: (AwRR Low limit +1 rpm) ~ 120rpm

AwRR Low: 0 ~ (AwRR High limit -1 rpm)



Mounting:

Wall-mount bracket/shelf (local or imported) included



Included Accessories:

All reusable sensors, probes, and cables required for adult and pediatric monitoring of all listed parameters
