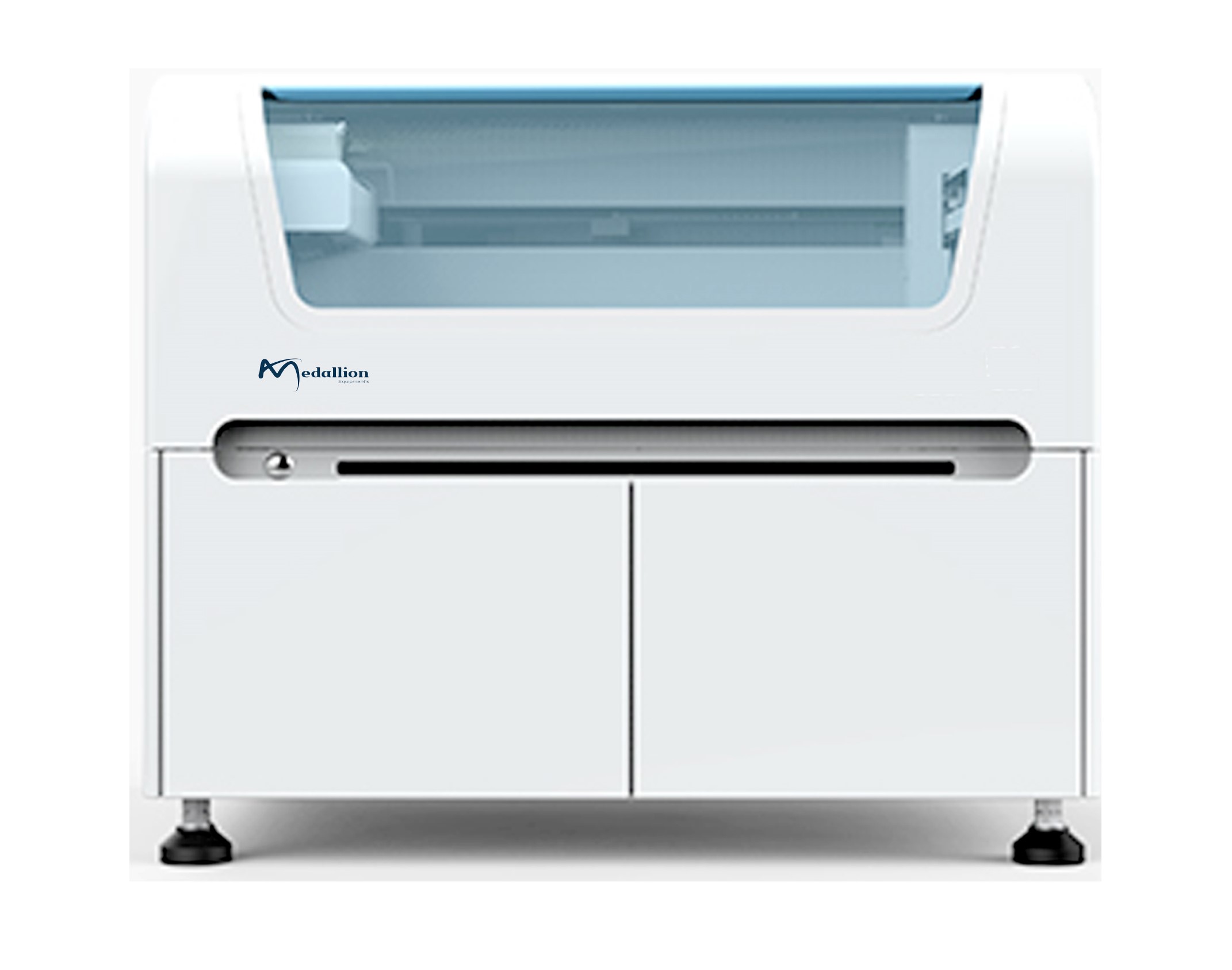

Automatic Blood Coagulation Analyzer MCA-1000
Automatic Blood Coagulation Analyzer
MCA-1000 Automatic Blood Coagulation Analyzer is a new generation of fully automatic coagulation analyzer, providing reliable results to meet the requirement of laboratory for thrombus and homeostasis testing.
Features
High efficiency, PT: 150 samples/hour
Random access of clotting, chromomeric substrate, immunoturbidimetric assay, fully meeting the needs of laboratory routine and special testing
Small in size, aesthetic in appearance and multiple in function, low water consumption, and environmental economy.
Fully automated bench top equipment
Simultaneous PT & APTT tests/hour: able to perform >100 tests/hour
Method used for clotting assay is photo-optical /Transmittance / Light Scatter
Instrument should facilitate both immunologic and chromogenic assay
Instrument should have cap piercing technology
Instrument should have capability at least 5 dedicated stat sample positions for performing emergency sample
Instrument is capability to handle low volume sample
Instrument is able to perform platelet aggregometry test with ADP, Epinephrine, Collagen, Arachidonic Acid, Ristocetin & fibrinogen, D-Dimer, Thrombin time, factor assay, VWF antigen and activity, RiCOF, Lupus Anticoagulant, Ant thrombin-III, Protein S and C, Plasmin and Plasminogin
Instrument should have flagging for abnormal value
Instrument has multi wave detection system, wave form analysis & perform inhibitor studies along with automated mixing tests
Instrument has an on-board consumables (Cuvette, cleaning solution etc.) loading option without interrupting instrument operation , 500 cuvette on-board capacit , liquid level detection feature for reagents
Storage capacity is 10,000 sample results with their reaction curves
Technical Parameters:
| Category | Specification |
| Throughput | PT: 100 samples/hour |
| Test Methods | Clotting assay, chromogenic substrate assay,
immunoturbidimetric assay |
| Analysis System | 8 positions, 8 positions, 72 positions |
| QC | Real-time QC, daily QC and inter-day QC with multi-concentration method |
| Sample Volume | 5µL – 170µL |
| Sample Position | 40 positions |
| Reagent System | |
| Reagent Volume | 20µL – 175µL |
| Reagent Position | 20 refrigerated reagent positions, 3 normal-temperature reagent positions |
| Storage Temperature of Reagent | ≤ 16°C |
| Port | Network port |
| Connection with LIS/HIS system | Bi-directional |
| Power Consumption | 450VA |
| Power Supply | 220/230V, 50/60Hz |
| Outline Dimensions | 660mm x 475mm x 554mm (LxWxH) |
| Weight | 75kg |
| Advanced Detection Principle | Optical transmission principle |
| Integrated Reagent Management | 16°C reagent storage |
| Barcode scanning for reagent recognition1ml, 50ml available for various tests, Calculate remaining volume and test numbers | |
| Flexible Sample Management | Supports original standard tubes and sample cups |
| Automatic barcode scanning for sample identification | |
| Accurate Temperature Control | Temperature control system regulates incubation and reaction temperature accurately |
| Friendly Operation Interface | Convenient operation system |
| Abnormal sample can be diluted and re-run automatically | |
| PT-derived and CLAUSS method for FIB item are available | |
| Reliable Test Results | Globally imported stable and long lifespan main parts, probe & lamp LED, etc. 1 |
| Data management
Quality System Compliance: COUNTRY OF MANUFACTURER Warranty: |
PC based with latest window LCD Monitor with hard disk 500GB and at least with 2 USB port and must be compatible with the instrument &UPS with a backup of 30 minutes or more
ISO, CE certified & FDA Approve Two (02) years comprehensive warranty. User manual and Service manual |
