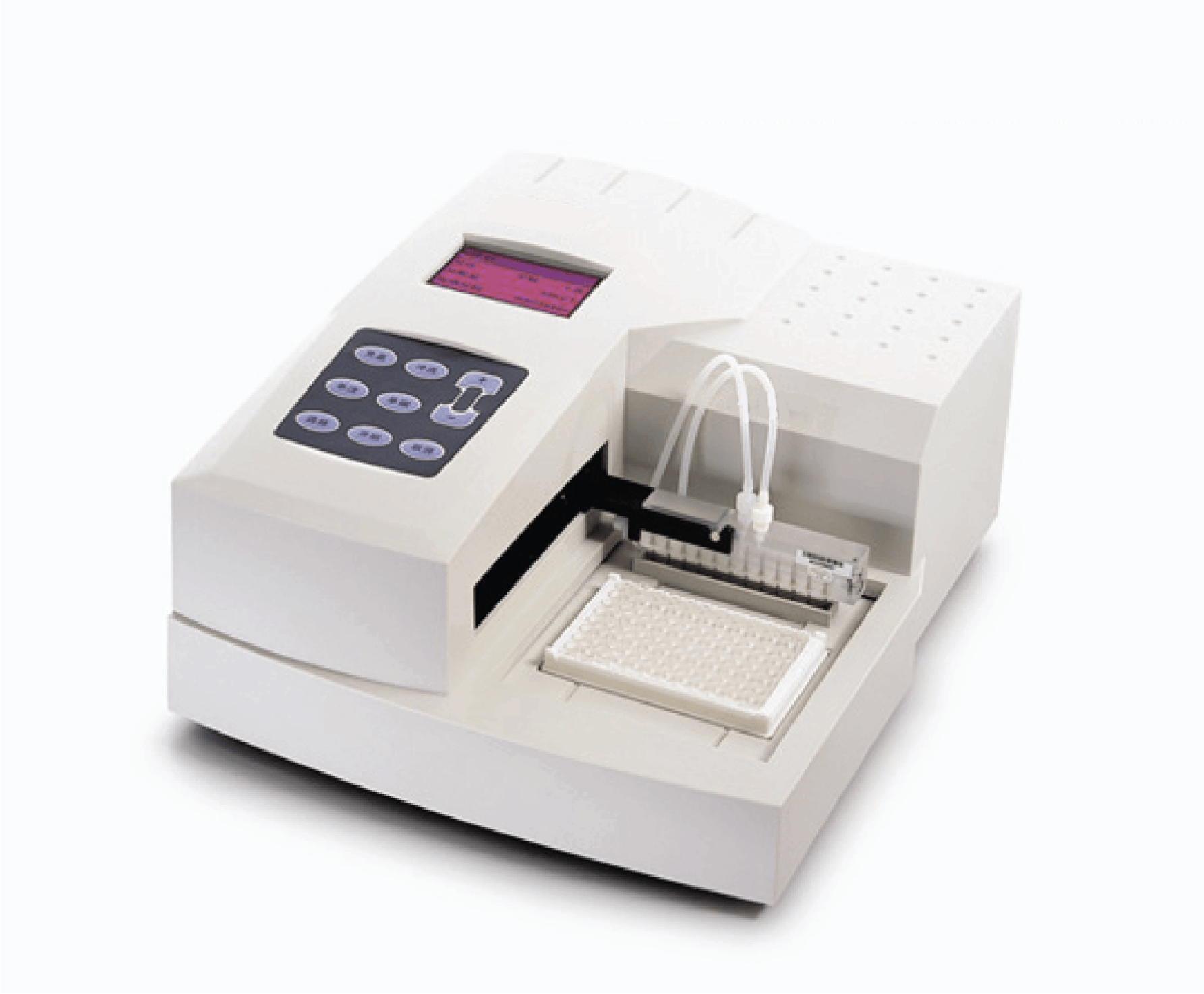

Features
– Easy Windows operation system, large LCD display
– Washes flat, U and V-bottom strips and plates
– 12-way or 8-way manifold, automatic and manual positioning
– Large memory, up to 50 wash protocols can be programmed
– Automatic monitoring for vacuum and pressure, automatic rinse cycle
– Washing pressure volume and time adjustable
– Liquid level detection and alert function
– No special airtight bottle required for wash bottle
– Easy maintenance
Technical Parameter
| Plate Mode | 96- or 48- well plate or strip |
| Dispense Precision | CV < 2% |
| Residual Volume | <1µL |
|
Washing Volume |
50-3000L for 8-way manifold |
| 50-2000L for 12 way manifold | |
| Washing Cycle | Maximum 99 cycles |
| Strip Washing | 1 to 12 channels adjustable |
| Soaking Time | 0-24 hours |
| Display | 5″ LCD |
| Bottle Capacity | 2 liters each |
| Memory | 50 washing protocols |
| Interface | RT-232 serial port |
| Net Weight | 8Kg |
| Dimensions | 390mm x 340mm x 180mm |
| Power Supply | AC 220V±10%, 50-60Hz, 110V on request |
