Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaustA2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Advantage:

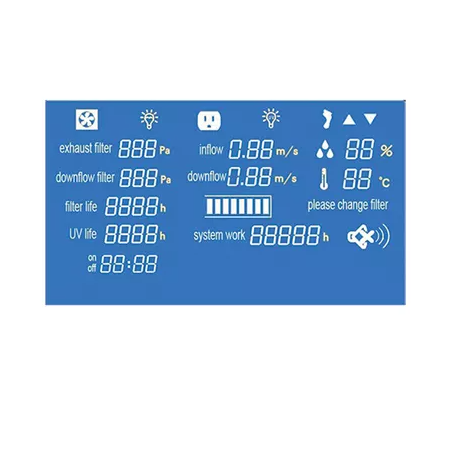

1. Large LCD display, all information displayed.
2. Automatic air speed adjustable with filter block.
3.With memory function in case of power-failure.

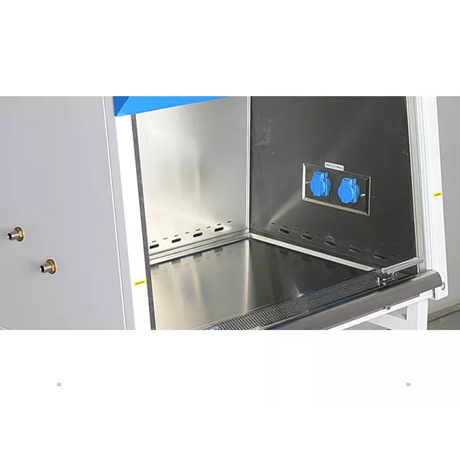

4. Side & back wall is made up of single piece stainless steel.
5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Models：
| Model |
BSC-3FA2-HA |
BSC-4FA2-HA |
| External Size(W*D*H) |
1087*800*2260mm |
1383*800*2260mm |
| Internal Size(W*D*H) |
980*600*650mm |
1280*600*650mm |
| Work Surface Height |
750mm |
| Max Opening |
500mm |
|
| Tested Opening |
200mm |
|
| Airflow volume |
Inflow |
370m³/h(218cfm) |
490m³/h(289cfm) |
| Down flow |
65%: 690 m³/h(406cfm) |
65%: 910 m³/h(536cfm) |
| Exhaust |
35%: 370m³/h(218cfm) |
35%: 490m³/h(289cfm) |
| Front Window |
Manual and electric, glass thickness> 5mm, anti-ultraviolet |
| ULPA Filter |
2pcs, filtration efficiency for 0.12um particles299.9995% |
| Illumination |
≥1000Lux |
|
| Noise |
EN12469≤65dB |
|
| Display |
Color Touch Screen |
|
| European Standard Socket |
230V, 3A |
|
| Power Supply |
AC 230V, 50/60HZ |
| Rated Power |
1100W |
1200W |
| Alarm |
Alarm for abnormal wind speed, alarm for glass door not at safe height, alarm for abnormal power failure |
| Motor |
AC single fan,
Adjustable speed, high efficiency, low power |
| Material |
Working Area: 304 stainless steel, side window glass;
Frame and decorative plate: cold-rolled steel with anti-bacteria powder coating |
| LED Lamp |
12W*2 |
14W*2 |
| UV Lamp |
20W |
30W |
| Standard Accessory |
Cabined, Base stand*1, LED lamp*2, UV lamp*1, S.S. water tap*1, S.S. gas tap*1, Drain ball valve*1,
European Standard Socket*2 |
| Optional Accessory |
Arm rest, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand,
S.S. water tap*1, S.S. gas tap*1 |
| Package Size (W*D*H) |
1240*1060*1880mm |
1530*1060*1880mm |
| Gross Weight |
270kg |
345kg |
Standard Accessory：
waterproof sockets 1pcs

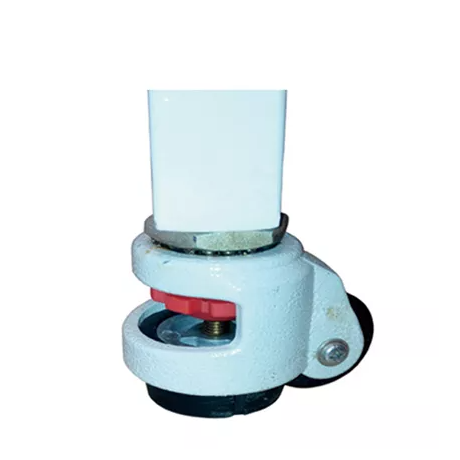

Base stand 1pc
Fluorescent lamp 1pc
Drain valve 1pc
UV lamp 2pc
SS water & gas taps
Stainless steel I.V. bar with 10 hooks
Optional accessory：
Armrest 1pc
Formalin fumigation sterilizer 1pc
Infrared sterilizer 1pc
Airflow tester 1pc
Remote control 1pc
Electric height adjustable base stand
Motorized front window
