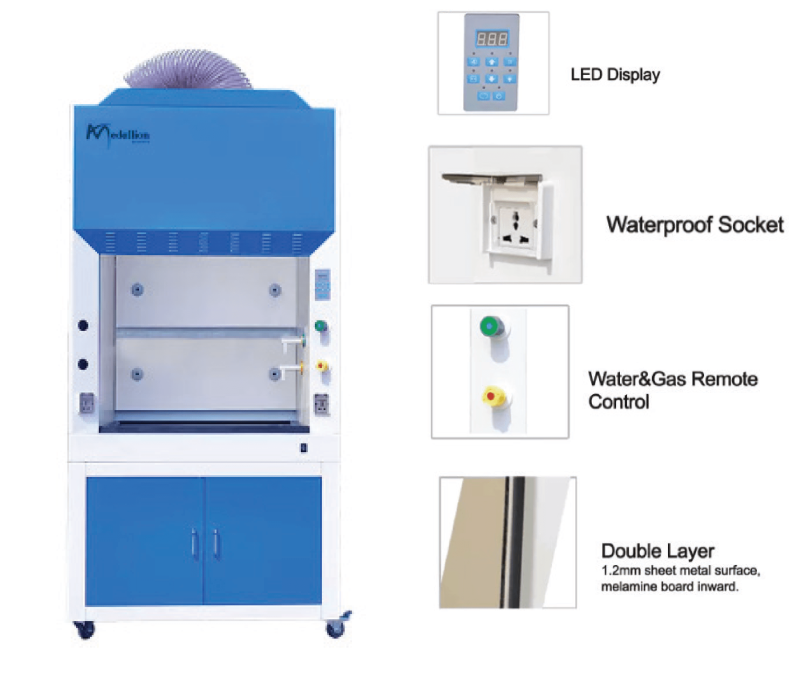

Advantage:
1. It is safer to use an anti-corrosive water tap.
2. Microprocessor control system, LED display
3. With memory function in case of power-failure
4. Made of porcelain white PP, resistant to acid, alkali, and anti-corrosion.
5. The front window which is made of thick transparent toughened glass maximizes light and visibility inside the fume hood, providing a bright and open working environment.
Technical Parameters:
| Model | MFH-P1000 | |
| External Size (W*D*H) | 1047*800*2450mm | |
| Internal Size (W*D*H) | 787*560*700mm | |
| Work Surface Height | 820mm | |
| Max Opening | 740mm | |
| Air Velocity | 0.3~0.8m/s | |
| Noise | ≤68dB | |
| Exhaust Duct | 4.3 meters, φ250mm | |
| LED Lamp | 12W*2 | |
| Blower | Built-in PP centrifugal blower; Speed adjustable | |
| Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Consumption | 400W | |
| Material | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. |
| Work Table | Chemical resistant phenolic resin | |
| Standard Accessory | LED light;
Work table: Chemical resistant phenolic resin; 4.3 meters PVC duct , Diameter: 250mm; Pipe strap*2 RVV power cord(3*1.0mm²*3000mm); Base cabinet; Waterproof socket*2; Tail insert; Water tap(PP); Gas tap(PP); Water Sink; PP centrifugal blower*1 |
|
| Optional Accessory | PP work table, epoxy resin board or ceramic board;
Active carbon filter; Outer PP centrifugal blower*1 |
|
| Gross Weight | Main Body
Base Cabine |
137kg
89kg or 80kg(Splicable) |
| Package Size (W*D*H) |
Main Body | 1188*938*1612mm |
| Base Cabinet | 1188*888*1000mm or
1200*1000*450mm(Splicable) |
|
