Central Monitoring System MSM-C100

Introduction

Central Monitoring System is a powerful and scalable solution providing for continuous, real-time surveillance across networks large and small. The system can display patient information from networked monitors, wireless transport solutions, and telemetry transmitters – up to 1200 devices across the hospital enterprise, locally and remotely.

The Central Station also makes information accessible beyond the central nursing station or centralized monitoring center through distributed View Station, and Work Station, and even smartphones to optimize clinical productivity. And bi-directional communications with ADT and EMR solutions are streamlined with eGateway Integration Engine.

 General Features:

• Multi-channel cardiac monitoring, scaled as per bed strength
• Colored display from the same manufacturer (single/dual monitor display)
• Connects to bedside monitors (LCD/LED)

Control & Display:

• Full control of major parameters of bedside monitors
• Selectable display of all parameters from bedside monitors
• Alarms for all parameters displayed with bed number
• Full disclosure display ≥ 24 hours
• Trend data: graphical and tabular

 Alarms:

• All bedside monitor alarms selectable at central station

 Communication:

• LAN/WLAN interface for data transfer

 Power & Operation:

• AC 220 V, 50 Hz
• Built-in rechargeable battery with ≥ 2 hours backup
• Optional imported full sinewave UPS for ≥ 2 hours backup

 Key features:

• Supported 3-layer network infrastructure and flexible combination of Central Station, View Station and Work Station makes you establish your own dedicated monitoring network which could accommodate as many as 1200 patient devices in single network
• Devices may be combination of wired, wireless, and telemetry transmitters on any station

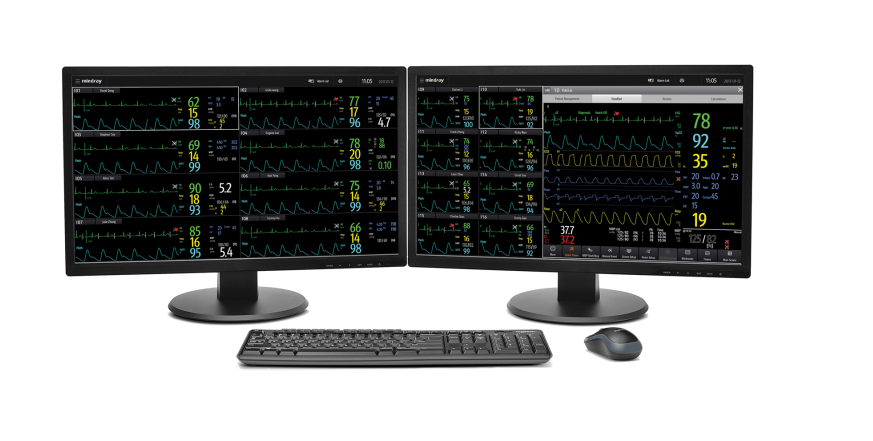

• Both 19″ TFT LCD and touchscreen display supported can present 16 patients simultaneously
• Each station can support up to four displays
• Supports up to 64 monitored beds per station
• Enables bi-directional communication with bedside monitors for enhanced patient care
• Supports all Medallion patient monitors.
• Supports up to 240 hours full disclosure waveforms
• Historical patient database enables data review for up to 20,000 discharged patients
• Documentation options include network printer and dual trace recorder
• Connectivity to ECG management systems for 12-lead ECG reports
• Connectivity to eGateway for centralized HL7 IHE PCD v2 export
• Clinical mobility supported with smartphone interface

 Accessories:

• Complete set of standard accessories required for full CMS operation
• Compatible computer system with all necessary peripherals
• Permanent licensed Windows Operating System
• Laser printer or better for reports and data printing
• CMS software (original software CD / license)
• Operational & service manual
• High-definition display, screen size 32″.
• All types of communication cables and networking accessories
• Connectivity with PACS (Picture Archiving & Communication System) / RIS (Radiological Information System)

 Acknowledgement:

• We will supply, install, integrate, and commission a fully functional Central Monitoring System (CMS)
• The CMS will be capable of continuous monitoring of all connected patient monitors
  • Adult
  • Pediatric
  • Neonatal
• We bear full responsibility for the complete execution, including system integration, testing, and successful commissioning of the CMS
