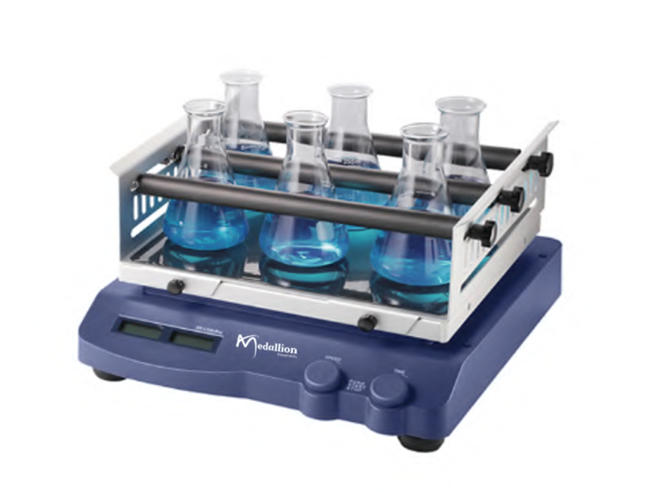

Orbit Shaker -300

 MSK-330

Features:

  1. Double LCDs for independent display of time and speed.
  2. Over speed detection and protection.
  3. Different platforms and fixtures for selection.
  4. Remote function provides PC control and data transmission.



Technical Parameters:

Model MSK-330
Oscillation Mode Orbital
Orbital Diameter 10mm
Amplitude /
Max. Load(with attachment) 7.5kg
Speed Range 100~500rpm
Speed And Timer Display LCD
Time Range 1min~99h59min
Operation Mode Continuous/timed operation
Working Environment 5~40°C, 80%RH
Protection Type IP21
Connection Interface RS232
Motor Type DC motor
Motor Input 28W
Motor Output 15W
Consumption 30W
Power Supply AC100~240V, 50/60Hz
Standard Accessory 1pc SK330.1 universal attachment
External Size(W*D*H) 370*420*100mm
Package Size(W*D*H) 600*500*230mm(shaker)

450*350*250mm(accessories)
Gross Weight 14kg(shaker), 2.5kg(accessories)
Read more

orbital shaker

Orbital Shaker

MSI-N100

Medallion Equipments UK

Features:

  • The first cutting-edge USB data recording system. The data of the whole experiment process was automatically recorded.
  • U disk to record the whole process of experimental data (temperature, speed, time can be recorded).
  • Download data automatically tabulated to save and print. Mouse click to easily replay the experiment process. It is convenient to optimize reaction conditions, screen experimental methods, and confirm the experimental process.
  • Super low speed start, the speed is out of control, automatic lock, adjustable starting speed. Unique dynamic balance design to ensure smooth operation.
  • Multi-section speed, temperature, time control system. A variety of different speed, temperature and time experimental modes can be set at one time, and the operation mode can be automatically changed during operation.
  • Silent fan design, forced convection mode and unique air duct design ensure good temperature uniformity.
  • Users can freely set three operation modes: forward, reverse and forward and reverse.
  • LCD liquid display, temperature, time, speed with the interface display.

Technical Parameters:

Model MSI-N100
Capacity 70L
Temperature ControlRange Ambient temperature +20~+70℃
Temperature Control Accuracy ±0.1℃
Temperature Uniformity ±0.5℃(at 37℃, effective working surface)
Temperature Fluctuation ≤0.1℃(at 37℃)
Timing Range 0~9999h/min(can be untimed, continuous operation)
Control Mode PID microcomputer control
Display LCD display
Circulation Mode Forced convection
Oscillation Mode Rotary shaking
USB Data Download Processing System YES
Control System Standard mode; Static mode; Persistent mode; Program control mode(multi-section temperature, speed, time control)
Cyclotron Frequency Range 0, 10~500rpm(can do static culture, cross or alternate operation)
Cyclotron Frequency Accuracy ±1rpm
Swing Amplitude of the Plate Φ26mm
Refrigerant /
Max Capacity Clamp flask: 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*6 or 2000ml*4

Haftplatte: 100ml*30 or 250ml *20 or 500ml*9 or 1L*8 or 2L*4
Defrost Function /
Auxiliary Function Upper and lower limit over-temperature sound and light alarm, Automatic stop upon opening door, Setparameters to check, Monitor temperature and ambient temperature correction
Material External material: ABS; Internal material: Stainless steel
Power Supply Standard: AC220V, 50Hz

Optional: AC220V, 60Hz; 110V, 50/60Hz(External transformer)
Consumption 550W
Shelves 450*410mm, 1pc
Standard Accessories Clamp flask: 500ml*3, 250ml*3, 100ml*4, 50ml*4, Shelf*1
Optional Accessories Lighting function, UV disinfection function, Printer, Haftplatte
External Size(W*D*H)mm 750*710*520
Package Size(W*D*H)mm 870*870*705
Net Weight(kg) 90
Gross Weight(kg) 120
