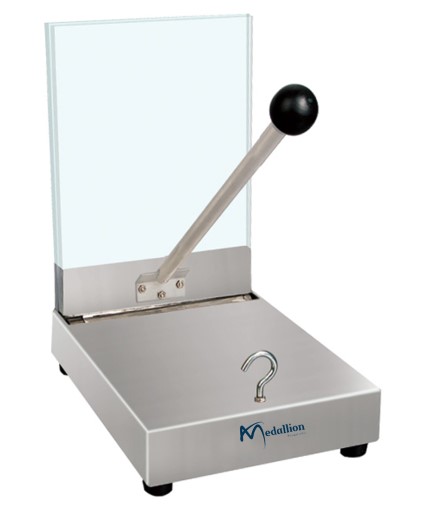

MPE-B20
Plasma Extractor
MPE-B20
Medallion Equipments UK
Introduction:
Plasma Extractor is designed to extract blood component from centrifuged bags. It is widely used in hospital, blood station, etc. After the plasma of blood bags is layered, the pressure of plasma-separating clip enables different components of blood to be extruded from top to bottom.
Features:
- Manual system
- Easy to observe the separation of the plasma and red blood cells
- Programmable
- Digital display of programmed speed, timing, braking Self-diagnostic with error display
- Over temperature alarm
- Rotor Rpm calibration window
Technical Specifications:
| Model | MPE-B20 |
| Clamping Force | 20N |
| Applicable Blood Bag | 100ml, 200ml, 300ml, 400ml |
| Material | Stainless steel |
| External Size (W*D*H) | 165*250*250 mm |
| Package Size (W*D*H) | 310*310*240mm |
| Net Weight | 2.5kg |
| Gross Weight | 2.8kg |
