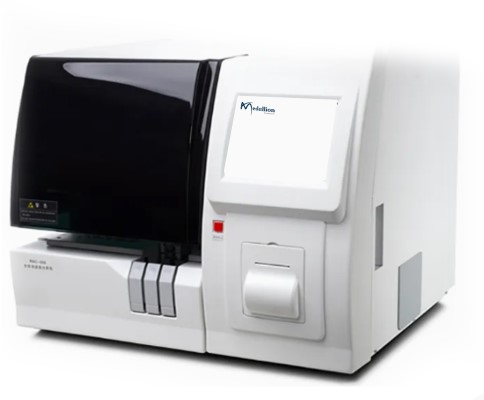

FULLY AUTOMATED COAGULATION ANALYZER

MAC-M50

Features:

-Random Access, smart and compact

-Clotting, Chromogenic, Immunologic measuring methods

-User friendly touchscreen interface, simple & easy to operate

-High throughput routine assays

-Labor saving, simple programming and real walk-away system

-Reagent open system, close system on request

-Multi – language software (optional)

System Function

• Throughput: 60 tests/hour for PT, 50 tests/hour for PT and APTT
• Parameters: PT, APTT, TT, FIB, AT-III, PLG, D-Dimer, FDP, etc.
• Measuring methods:

• Clotting: Scattered Light Detection method
• Chromogenic: Colorimetric method, 405nm
• Immunologic: Turbidimetric method, 575nm

• Memory: 100,000 test results and 10,000 reaction curves
• Quality control: 12 QC File*10 test items*30 curve* 12 month
• Calibration: 6 points*10 items
• Automatic, Random Access
• STAT sample priority
• Auto re-diluent/ re-test
• Barcode-reading support (optional)

Sample Tray

• Sample tray: 27 positions, user-defined STAT
• Incubation temperature: 37±0.5 °C

Reagent Tray

• Reagent tray: 23 positions
• Reagent cooling: ≤16 °C

• Query successful

Reaction Tray

• Cuvettes on board: 72
• Min reaction volume: 150 µl
• Reaction temperature: 37±0.5 °C

Probe

• With probe pre-heating
• Automatic washing both inside and outside
• With collision protection, liquid level detection, and inventory checking

Print out

• Built-in thermal printer, external printer optional

Measuring and Optic System

• Light: LED
• Power: AC 110/240V, 50-60±1Hz
• Temperature: 10 °C-30 °C, humidity ≤85%
• Water consumption: <0.5 L/hour
• Dimension L×W×H (mm): 660×580×510
• Weight: 53 KG
