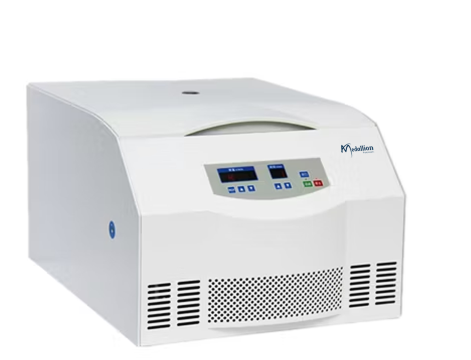

MTC-TD6 ( Centrifuge Machine )
Centrifuge Machine
MTC-TD6
Features
- Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
- Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
- Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
- Adapters are available by experiment requirements.
- 10 kinds brake systems.
- Stainless steel chamber
Technical Parameters:
| Max. Speed | 6000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×180ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | Normal |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | / |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 540×370×280mm |
| Net Weight(Kg) | 28KG |
Matched Rotor:
| Order No. | Rotor | Max Speed (rpm) | Max Volume
(ml) |
Max. RCF（×g） |
| M6-4 | Angle Rotor | 5000 | 4×50ml | 3620 |
