Table Top Freeze Dryer MDF-P10

Rated 0 out of 5
0 reviews

  • Real Time 83 Visitor Right Now
Request a Quote
This product is already in your quote request list.
View Quote List
Categories: Freeze Dryer, Uncategorized
Share :

Welcome to
Medallion Group
WE FOCUSING ON SCIENTIFIC EQUIPMENT Contact Us
Comprehensive Range of Laboratory Equipment's WE FOCUSING ON SCIENTIFIC EQUIPMENT Contact Us

Medallion Equipment's is a distinguished provider of a comprehensive array of laboratory equipment across various sectors. Our clientele extends to Hospitals, Educational Institutes and Research Laboratories. At Medallion Equipment's, our unwavering commitment revolves around delivering products of utmost quality, characterized by safety, reliability, and excellence. Our offerings undergo diligent testing and approval processes led by a proficient team of Research and Development, Quality Control, and Quality Assurance experts. These dedicated professionals consistently strive to align our products with the evolving needs of our esteemed customers.

/*! elementor - v3.7.4 - 31-08-2022 */ .elementor-column .elementor-spacer-inner{height:var(--spacer-size)}.e-container{--container-widget-width:100%}.e-container>.elementor-widget-spacer{width:var(--container-widget-width,var(--spacer-size));-ms-flex-item-align:stretch;align-self:stretch;-ms-flex-negative:0;flex-shrink:0}.e-container>.elementor-widget-spacer>.elementor-widget-container,.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer{height:100%}.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer>.elementor-spacer-inner{height:var(--container-widget-height,var(--spacer-size))} MEDALLION MISSION

MEDALLION MISSION

Read More MEDALLION VISION

MEDALLION VISION

Read More MEDALLION CULTURE

MEDALLION CULTURE

Read More /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-heading-title{padding:0;margin:0;line-height:1}.elementor-widget-heading .elementor-heading-title[class*=elementor-size-]>a{color:inherit;font-size:inherit;line-height:inherit}.elementor-widget-heading .elementor-heading-title.elementor-size-small{font-size:15px}.elementor-widget-heading .elementor-heading-title.elementor-size-medium{font-size:19px}.elementor-widget-heading .elementor-heading-title.elementor-size-large{font-size:29px}.elementor-widget-heading .elementor-heading-title.elementor-size-xl{font-size:39px}.elementor-widget-heading .elementor-heading-title.elementor-size-xxl{font-size:59px}

MEDALLION GROUP IS A NEW HIGH-TECH ENTERPRISE

Medallion Equipments are ISO certified, ISO 9001:2008 company, ensuring adherence to international standards. Our product portfolio complies with stringent regulations, including the certificate of compliance for the 2014/35/EU low voltage directive and the 2014/32/EU measuring Instruments directive. We maintain compliance with the good manufacturing practice (GMP) System, ISO 13485:2012, and ISO 9001:2008. Additionally, our commitment extends to the EC declaration of conformity under the In vitro diagnostic medical devices directive 98/79/EC, as well as the certificate of conformity by the European Pressure Equipment Directive 2014/68/EU.

Profession - Quality - Innovation - Environmental Protection

Quality is always our first priority

We are dedicated to deliver superior products and provide sincere, professional services to customers worldwide. Our commitment to excellence has garnered high customer acclaim in over 150 countries and regions. Contact Us

WHY CHOOSE MEDALLION EQUIPMENTS

The Medallion Group has successfully concluded the construction of its inaugural industrial park in Zhangqiu, spanning 80,000 square meters. Additionally, the completion of its second industrial park in the Tangye New District, covering an expansive area of 160,000 square meters, marks another milestone. Furthermore, Medallion Group has established a dedicated USA incubator in Silicon Valley, occupying a space of 2,000 square meters.

SERVICE

We are available online 24 hours to ensure prompt responses to customer inquiries. In the event of quality-related issues, replacement of spare parts is available free of cost to facilitate client.

TEAM

Our Research and Development (R&D) team comprises over 100 highly skilled professionals, while our sales team boasts more than 200 dedicated employees. Additionally, our after-sales team consists of approximately 30 professionals.

PARTNERS

Currently, we have cultivated enduring partnerships with business counterparts in over 100 countries, affirming our global presence and commitment to long-term collaboration. /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-widget-image-carousel .swiper-container{position:static}.elementor-widget-image-carousel .swiper-container .swiper-slide figure{line-height:inherit}.elementor-widget-image-carousel .swiper-slide{text-align:center}.elementor-image-carousel-wrapper:not(.swiper-container-initialized) .swiper-slide{max-width:calc(100% / var(--e-image-carousel-slides-to-show, 3))}
okay1
2
sss
Previous Next

Welcome to
Medallion Group
WE FOCUSING ON SCIENTIFIC EQUIPMENT Contact Us
Comprehensive Range of Laboratory Equipment's WE FOCUSING ON SCIENTIFIC EQUIPMENT Contact Us

Medallion Equipment's is a distinguished provider of a comprehensive array of laboratory equipment across various sectors. Our clientele extends to Hospitals, Educational Institutes and Research Laboratories. At Medallion Equipment's, our unwavering commitment revolves around delivering products of utmost quality, characterized by safety, reliability, and excellence. Our offerings undergo diligent testing and approval processes led by a proficient team of Research and Development, Quality Control, and Quality Assurance experts. These dedicated professionals consistently strive to align our products with the evolving needs of our esteemed customers.

/*! elementor - v3.7.4 - 31-08-2022 */ .elementor-column .elementor-spacer-inner{height:var(--spacer-size)}.e-container{--container-widget-width:100%}.e-container>.elementor-widget-spacer{width:var(--container-widget-width,var(--spacer-size));-ms-flex-item-align:stretch;align-self:stretch;-ms-flex-negative:0;flex-shrink:0}.e-container>.elementor-widget-spacer>.elementor-widget-container,.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer{height:100%}.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer>.elementor-spacer-inner{height:var(--container-widget-height,var(--spacer-size))} MEDALLION MISSION

MEDALLION MISSION

Read More MEDALLION VISION

MEDALLION VISION

Read More MEDALLION CULTURE

MEDALLION CULTURE

Read More /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-heading-title{padding:0;margin:0;line-height:1}.elementor-widget-heading .elementor-heading-title[class*=elementor-size-]>a{color:inherit;font-size:inherit;line-height:inherit}.elementor-widget-heading .elementor-heading-title.elementor-size-small{font-size:15px}.elementor-widget-heading .elementor-heading-title.elementor-size-medium{font-size:19px}.elementor-widget-heading .elementor-heading-title.elementor-size-large{font-size:29px}.elementor-widget-heading .elementor-heading-title.elementor-size-xl{font-size:39px}.elementor-widget-heading .elementor-heading-title.elementor-size-xxl{font-size:59px}

MEDALLION GROUP IS A NEW HIGH-TECH ENTERPRISE

Medallion Equipments are ISO certified, ISO 9001:2008 company, ensuring adherence to international standards. Our product portfolio complies with stringent regulations, including the certificate of compliance for the 2014/35/EU low voltage directive and the 2014/32/EU measuring Instruments directive. We maintain compliance with the good manufacturing practice (GMP) System, ISO 13485:2012, and ISO 9001:2008. Additionally, our commitment extends to the EC declaration of conformity under the In vitro diagnostic medical devices directive 98/79/EC, as well as the certificate of conformity by the European Pressure Equipment Directive 2014/68/EU.

Profession - Quality - Innovation - Environmental Protection

Quality is always our first priority

We are dedicated to deliver superior products and provide sincere, professional services to customers worldwide. Our commitment to excellence has garnered high customer acclaim in over 150 countries and regions. Contact Us

WHY CHOOSE MEDALLION EQUIPMENTS

The Medallion Group has successfully concluded the construction of its inaugural industrial park in Zhangqiu, spanning 80,000 square meters. Additionally, the completion of its second industrial park in the Tangye New District, covering an expansive area of 160,000 square meters, marks another milestone. Furthermore, Medallion Group has established a dedicated USA incubator in Silicon Valley, occupying a space of 2,000 square meters.

SERVICE

We are available online 24 hours to ensure prompt responses to customer inquiries. In the event of quality-related issues, replacement of spare parts is available free of cost to facilitate client.

TEAM

Our Research and Development (R&D) team comprises over 100 highly skilled professionals, while our sales team boasts more than 200 dedicated employees. Additionally, our after-sales team consists of approximately 30 professionals.

PARTNERS

Currently, we have cultivated enduring partnerships with business counterparts in over 100 countries, affirming our global presence and commitment to long-term collaboration. /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-widget-image-carousel .swiper-container{position:static}.elementor-widget-image-carousel .swiper-container .swiper-slide figure{line-height:inherit}.elementor-widget-image-carousel .swiper-slide{text-align:center}.elementor-image-carousel-wrapper:not(.swiper-container-initialized) .swiper-slide{max-width:calc(100% / var(--e-image-carousel-slides-to-show, 3))}
okay1
2
sss
Previous Next
Have a question?




    • Description
    • Reviews (0)

    Description

    Features:

    1. LCD touch screen.

    2. With historical data inquiry function.

    3. With a USB interface to export the data.

    4. Large capacity ice condenser trap without coil inside.
    5. With cascade refrigeration technology.
    6. Pre-freezing shelf can be used as a guide barrel to speed up the drying rate.
    7. The ice condenser trap and operation panel are made of stainless steel.
    8. Drying chamber is transparent which is visual and safe.
    9. Shelves are stainless steel, which can be adjustable per the requirements.

    Models:

    Model MDF-P10
    Type Standard chamber with 8 port manifold
    Freeze Drying Area 0.12 m²
    Tray 4/6(Optional)pcs
    Height Between Trays 76/50mm
    Cold Trap Temperature -60℃
    Cold Trap Capacity 6.9L
    Cold Trap Size (Diameter*H) Φ215*190mm
    Vacuum Degree <10Pa
    Water Capture Capacity 3kg/24h
    Tray Size (D*H) Φ200*20mm
    Freeze Drying Time 24h
    Loading Capacity/Shelf (Liquid) 0.3L
    Total Loading Capacity (Liquid) 1.2L
    Drying Chamber Size (Diameter*H) Lower circle Φ260mm, Upper circle Φ240mm Height 450mm
    Total Qty. Of Vial Φ22 260
    Total Qty. Of Vial Φ16 480
    Total Qty. Of Vial Φ12 920
    Refrigerant R600a+R290+R23
    Cooling System Air cooling
    Power Consumption 0.9KW
    Power Supply AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase)
    Standard Accessory Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover(for all models),

    Conical-mouth flask 500ml*8pcs, Switch valve*8 pcs

    Optional Function & Accessory Electric defrost function, Nitrogen gas filling valve, Oil mist filter(for all models)

    800ml wide-mouth flask

    External Size (W*D*H) 600*560*374/820mm
    Package Size(W*D*H)mm/

    Gross Weight

    Main Body 670*700*560 (80kg)
    Drying Chamber 400*400*620 (15kg)
    Vacuum Pump 570*240*360 (22kg)

    Reviews (0)

    Reviews

    There are no reviews yet.

    Be the first to review “Table Top Freeze Dryer MDF-P10” Cancel reply

    Your email address will not be published. Required fields are marked *

    Related products

    • Add to wishlist Add to compare Quick view

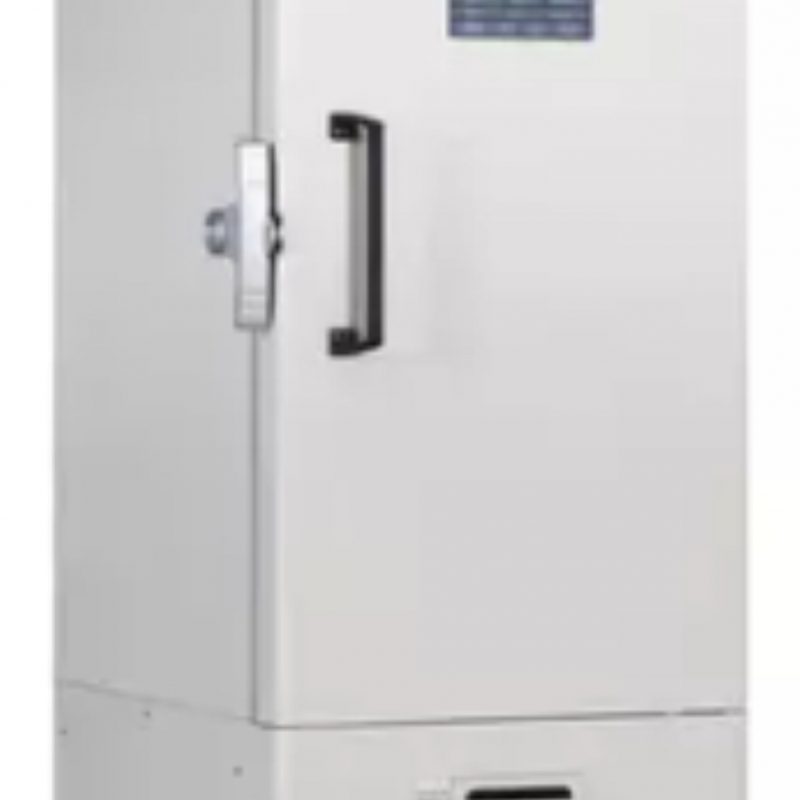

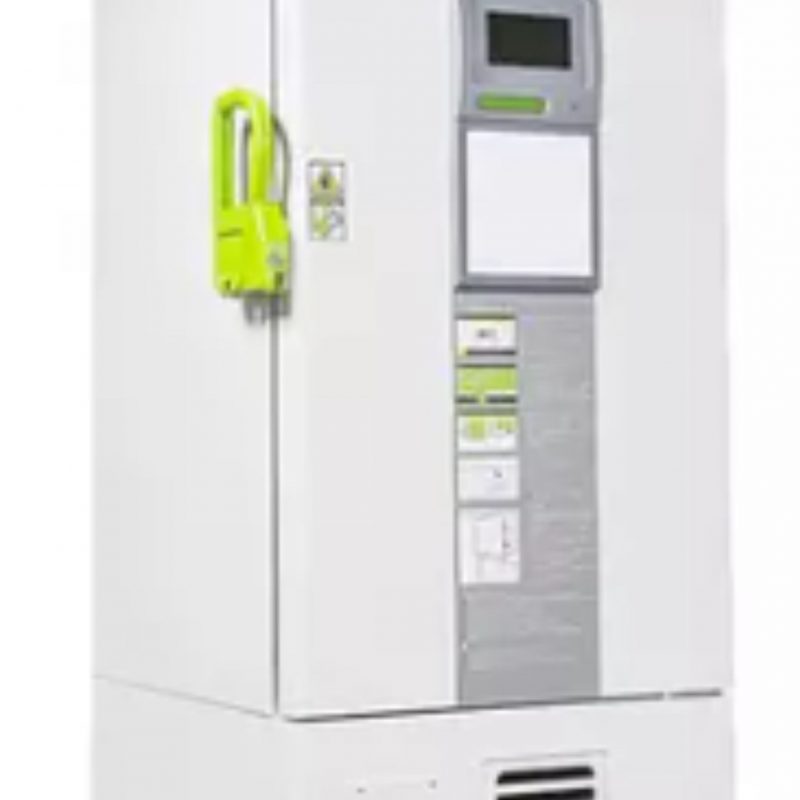

      -86℃ Freezer

      Request a Quote
      This product is already in your quote request list.
      View Quote List
    • Add to wishlist Add to compare Quick view

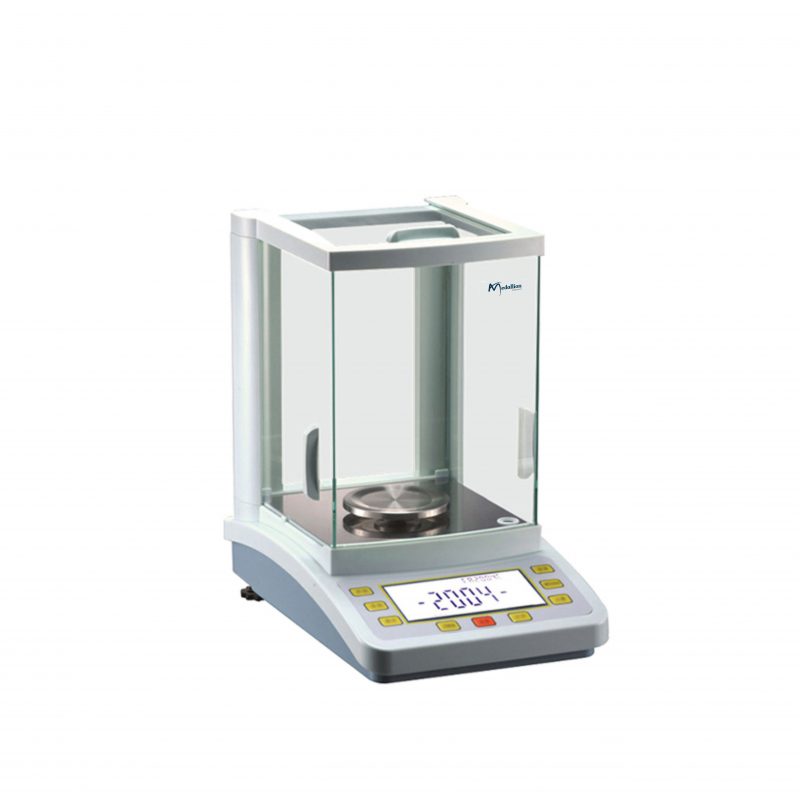

      AUTOMATIC ELECTRONIC ANALYTICAL BALANCE
