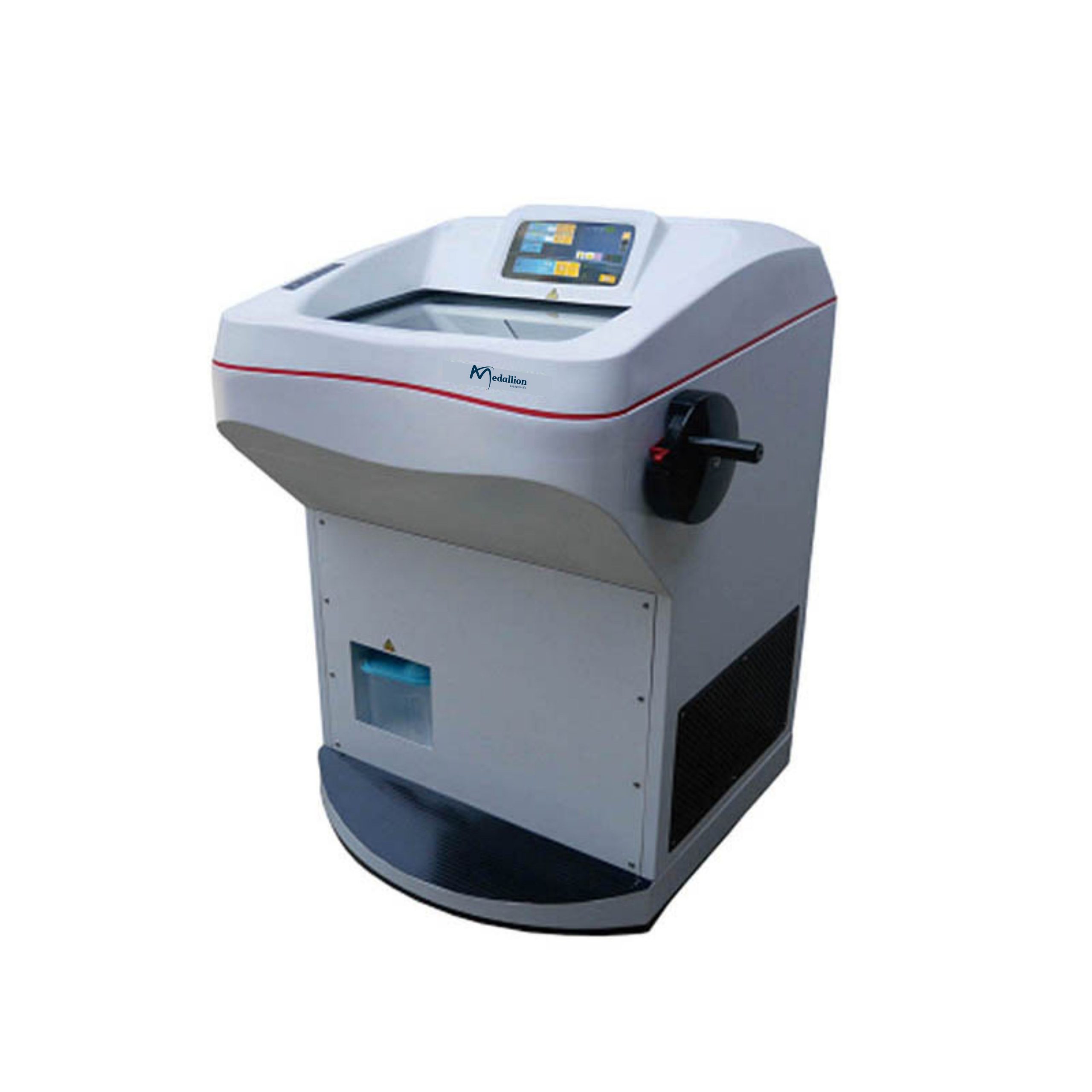

AUTOMATIC CRYOSTAT MICROTOME
Features：
1. The 10-inch color LCD touch screen can separately display the total number of slices and the total slice thickness, slice thickness, specimen retraction value, temperature control, date, time, temperature, timing sleep switch, defrost and other functions. The operation display can be set to switch between Chinese and English operation interface, which is convenient for different users all over the world to operate.
2. Humanized hibernation function: After selecting the hibernation state, the temperature of the freezer compartment can be automatically controlled between -1 and -9°C. After the hibernation is canceled, the sectioning temperature can be reached within 15 minutes.
3. Imported dual compressors refrigerate the freezing box, freezing table, knife holder, sample chuck, and tissue presser at five points respectively.
4. The knife holder is equipped with a blade thruster and a knife guard to cover the full length of the blade, which protects the user safely.
5. Equipped with rubber instrument rack and waste box X-axis 360°, Y-axis 12°universal rotation, snap-on tissue chuck, easier and faster to install the organization
6. Anti-adhesive tissue flattening device, with specimen refrigeration, the temperature can reach -50°, which is convenient for freezing the tissue and saving operation time.
The machine is mainly composed of four parts:
1. The upper part of the machine is a microcomputer control part and panel operation, temperature display, and working status display part.
2. The middle part is a low-temperature freezer, which is the part for quick freezing of biopsy tissue and
sectioning operation.
3. The lower part is the refrigeration part of the compressor unit.
4. The middle and rear parts are mechanical transmission and motor drive parts.
- Real Time 54 Visitor Right Now
Share :
Medallion Group
Medallion Equipment's is a distinguished provider of a comprehensive array of laboratory equipment across various sectors. Our clientele extends to Hospitals, Educational Institutes and Research Laboratories. At Medallion Equipment's, our unwavering commitment revolves around delivering products of utmost quality, characterized by safety, reliability, and excellence. Our offerings undergo diligent testing and approval processes led by a proficient team of Research and Development, Quality Control, and Quality Assurance experts. These dedicated professionals consistently strive to align our products with the evolving needs of our esteemed customers.
/*! elementor - v3.7.4 - 31-08-2022 */ .elementor-column .elementor-spacer-inner{height:var(--spacer-size)}.e-container{--container-widget-width:100%}.e-container>.elementor-widget-spacer{width:var(--container-widget-width,var(--spacer-size));-ms-flex-item-align:stretch;align-self:stretch;-ms-flex-negative:0;flex-shrink:0}.e-container>.elementor-widget-spacer>.elementor-widget-container,.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer{height:100%}.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer>.elementor-spacer-inner{height:var(--container-widget-height,var(--spacer-size))}
MEDALLION MISSION
Read More
MEDALLION VISION
Read More
MEDALLION CULTURE
Read More /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-heading-title{padding:0;margin:0;line-height:1}.elementor-widget-heading .elementor-heading-title[class*=elementor-size-]>a{color:inherit;font-size:inherit;line-height:inherit}.elementor-widget-heading .elementor-heading-title.elementor-size-small{font-size:15px}.elementor-widget-heading .elementor-heading-title.elementor-size-medium{font-size:19px}.elementor-widget-heading .elementor-heading-title.elementor-size-large{font-size:29px}.elementor-widget-heading .elementor-heading-title.elementor-size-xl{font-size:39px}.elementor-widget-heading .elementor-heading-title.elementor-size-xxl{font-size:59px}MEDALLION GROUP IS A NEW HIGH-TECH ENTERPRISE
Medallion Equipments are ISO certified, ISO 9001:2008 company, ensuring adherence to international standards. Our product portfolio complies with stringent regulations, including the certificate of compliance for the 2014/35/EU low voltage directive and the 2014/32/EU measuring Instruments directive. We maintain compliance with the good manufacturing practice (GMP) System, ISO 13485:2012, and ISO 9001:2008. Additionally, our commitment extends to the EC declaration of conformity under the In vitro diagnostic medical devices directive 98/79/EC, as well as the certificate of conformity by the European Pressure Equipment Directive 2014/68/EU.
Profession - Quality - Innovation - Environmental Protection
Quality is always our first priority
We are dedicated to deliver superior products and provide sincere, professional services to customers worldwide. Our commitment to excellence has garnered high customer acclaim in over 150 countries and regions. Contact UsWHY CHOOSE MEDALLION EQUIPMENTS
The Medallion Group has successfully concluded the construction of its inaugural industrial park in Zhangqiu, spanning 80,000 square meters. Additionally, the completion of its second industrial park in the Tangye New District, covering an expansive area of 160,000 square meters, marks another milestone. Furthermore, Medallion Group has established a dedicated USA incubator in Silicon Valley, occupying a space of 2,000 square meters.
SERVICE
We are available online 24 hours to ensure prompt responses to customer inquiries. In the event of quality-related issues, replacement of spare parts is available free of cost to facilitate client.TEAM
Our Research and Development (R&D) team comprises over 100 highly skilled professionals, while our sales team boasts more than 200 dedicated employees. Additionally, our after-sales team consists of approximately 30 professionals.PARTNERS
Currently, we have cultivated enduring partnerships with business counterparts in over 100 countries, affirming our global presence and commitment to long-term collaboration. /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-widget-image-carousel .swiper-container{position:static}.elementor-widget-image-carousel .swiper-container .swiper-slide figure{line-height:inherit}.elementor-widget-image-carousel .swiper-slide{text-align:center}.elementor-image-carousel-wrapper:not(.swiper-container-initialized) .swiper-slide{max-width:calc(100% / var(--e-image-carousel-slides-to-show, 3))}
Medallion Group
Medallion Equipment's is a distinguished provider of a comprehensive array of laboratory equipment across various sectors. Our clientele extends to Hospitals, Educational Institutes and Research Laboratories. At Medallion Equipment's, our unwavering commitment revolves around delivering products of utmost quality, characterized by safety, reliability, and excellence. Our offerings undergo diligent testing and approval processes led by a proficient team of Research and Development, Quality Control, and Quality Assurance experts. These dedicated professionals consistently strive to align our products with the evolving needs of our esteemed customers.
/*! elementor - v3.7.4 - 31-08-2022 */ .elementor-column .elementor-spacer-inner{height:var(--spacer-size)}.e-container{--container-widget-width:100%}.e-container>.elementor-widget-spacer{width:var(--container-widget-width,var(--spacer-size));-ms-flex-item-align:stretch;align-self:stretch;-ms-flex-negative:0;flex-shrink:0}.e-container>.elementor-widget-spacer>.elementor-widget-container,.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer{height:100%}.e-container>.elementor-widget-spacer>.elementor-widget-container>.elementor-spacer>.elementor-spacer-inner{height:var(--container-widget-height,var(--spacer-size))}
MEDALLION MISSION
Read More
MEDALLION VISION
Read More
MEDALLION CULTURE
Read More /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-heading-title{padding:0;margin:0;line-height:1}.elementor-widget-heading .elementor-heading-title[class*=elementor-size-]>a{color:inherit;font-size:inherit;line-height:inherit}.elementor-widget-heading .elementor-heading-title.elementor-size-small{font-size:15px}.elementor-widget-heading .elementor-heading-title.elementor-size-medium{font-size:19px}.elementor-widget-heading .elementor-heading-title.elementor-size-large{font-size:29px}.elementor-widget-heading .elementor-heading-title.elementor-size-xl{font-size:39px}.elementor-widget-heading .elementor-heading-title.elementor-size-xxl{font-size:59px}MEDALLION GROUP IS A NEW HIGH-TECH ENTERPRISE
Medallion Equipments are ISO certified, ISO 9001:2008 company, ensuring adherence to international standards. Our product portfolio complies with stringent regulations, including the certificate of compliance for the 2014/35/EU low voltage directive and the 2014/32/EU measuring Instruments directive. We maintain compliance with the good manufacturing practice (GMP) System, ISO 13485:2012, and ISO 9001:2008. Additionally, our commitment extends to the EC declaration of conformity under the In vitro diagnostic medical devices directive 98/79/EC, as well as the certificate of conformity by the European Pressure Equipment Directive 2014/68/EU.
Profession - Quality - Innovation - Environmental Protection
Quality is always our first priority
We are dedicated to deliver superior products and provide sincere, professional services to customers worldwide. Our commitment to excellence has garnered high customer acclaim in over 150 countries and regions. Contact UsWHY CHOOSE MEDALLION EQUIPMENTS
The Medallion Group has successfully concluded the construction of its inaugural industrial park in Zhangqiu, spanning 80,000 square meters. Additionally, the completion of its second industrial park in the Tangye New District, covering an expansive area of 160,000 square meters, marks another milestone. Furthermore, Medallion Group has established a dedicated USA incubator in Silicon Valley, occupying a space of 2,000 square meters.
SERVICE
We are available online 24 hours to ensure prompt responses to customer inquiries. In the event of quality-related issues, replacement of spare parts is available free of cost to facilitate client.TEAM
Our Research and Development (R&D) team comprises over 100 highly skilled professionals, while our sales team boasts more than 200 dedicated employees. Additionally, our after-sales team consists of approximately 30 professionals.PARTNERS
Currently, we have cultivated enduring partnerships with business counterparts in over 100 countries, affirming our global presence and commitment to long-term collaboration. /*! elementor - v3.7.4 - 31-08-2022 */ .elementor-widget-image-carousel .swiper-container{position:static}.elementor-widget-image-carousel .swiper-container .swiper-slide figure{line-height:inherit}.elementor-widget-image-carousel .swiper-slide{text-align:center}.elementor-image-carousel-wrapper:not(.swiper-container-initialized) .swiper-slide{max-width:calc(100% / var(--e-image-carousel-slides-to-show, 3))}Have a question?
Description
Technical Parameters:
| Model No. | MCM-A3000 |
| Chamber temperature | 10℃ ～ -50℃ |
| Freezing shelf temperature | 0℃ ～ -50℃ |
| Temperature control range of sample chuck | 10℃ ～ -50℃ |
| Additional semiconductor refrigeration in the freezer | -60℃ |
| Number of freezing station | 36 pcs |
| Pelletier number | 8 pcs |
| Semiconductor fast cooling working time | 15 minutes |
| Maximum specimen size | 55mm×80mm |
| Vertical stroke | 65mm |
| Horizontal stroke | 22mm |
| Electric feed speed | 0.9mm/s、0.45mm/s |
| Disinfection method | UV |
| Section thickness range | 0.5μm～100μm Adjustable |
| 0.5μm～5μm Increment0.5μm | |
| 5μm～20μm Increment1μm | |
| 20μm～40μm Increment2μm | |
| 40μm～100μm Increment5μm | |
| Trimming thickness range | 10μm～600μm Adjustable |
| 10μm～50μm Increment5μm | |
| 50μm～100μm Increment10μm | |
| 100μm～600μm Increment50μm | |
| Specimen retraction | 0～100μm Adjustable，Increment5μm |
| Dimension size(mm) | 700×760×1160mm |
| Weight | 135 KG |
